Description

Price

1

ECM, Engine Control Module

420666128

$1,292.28

2

Torx Flange Screw M6 X 16

420641588

$1.74

3

Engine Wiring Harness Ass'y

420665638

$483.82

4

ECM Connector

420664450

$26.89

5

Male Housing, 2 Circuits

278001005

$15.57

6

Male Housing, 1 Circuit

278001012

$12.65

7

Male Housing, 2 Circuits

278001005

$15.57

8

Male Terminal Housing, 6 Circuits

710001539

$15.57

9

Housing Connector, 3 Circuits

278001830

$34.58

10

Housing Connector, 3 Circuits

278001829

Unavailable

11

CABLE CLAMP - Call your local BRP dealership

420851108

$7.43

12

Torx Screw M5 X 12

420640086

$2.06

13

Tie-Rap

420866716

Unavailable

14

CLAMP - Call your local BRP dealership

420866717

Unavailable

15

Cable Clamp

420851492

$13.58

16

Hex. Flange Screw M6 X 12

420440147

$1.97

17

Torx Flange Screw M6 X 25

420440234

Unavailable

18

Cable Clamp

420251812

Unavailable

19

Torx Flange Screw M6 X 25

420440234

Unavailable

20

PROTECTOR - Call your local BRP dealership

420201070

$5.58

26

Not Available As Spare Part - Friction Washer

Unavailable

26a

Female Terminal

710000335

$1.80

26b

Seal

409012300

Unavailable

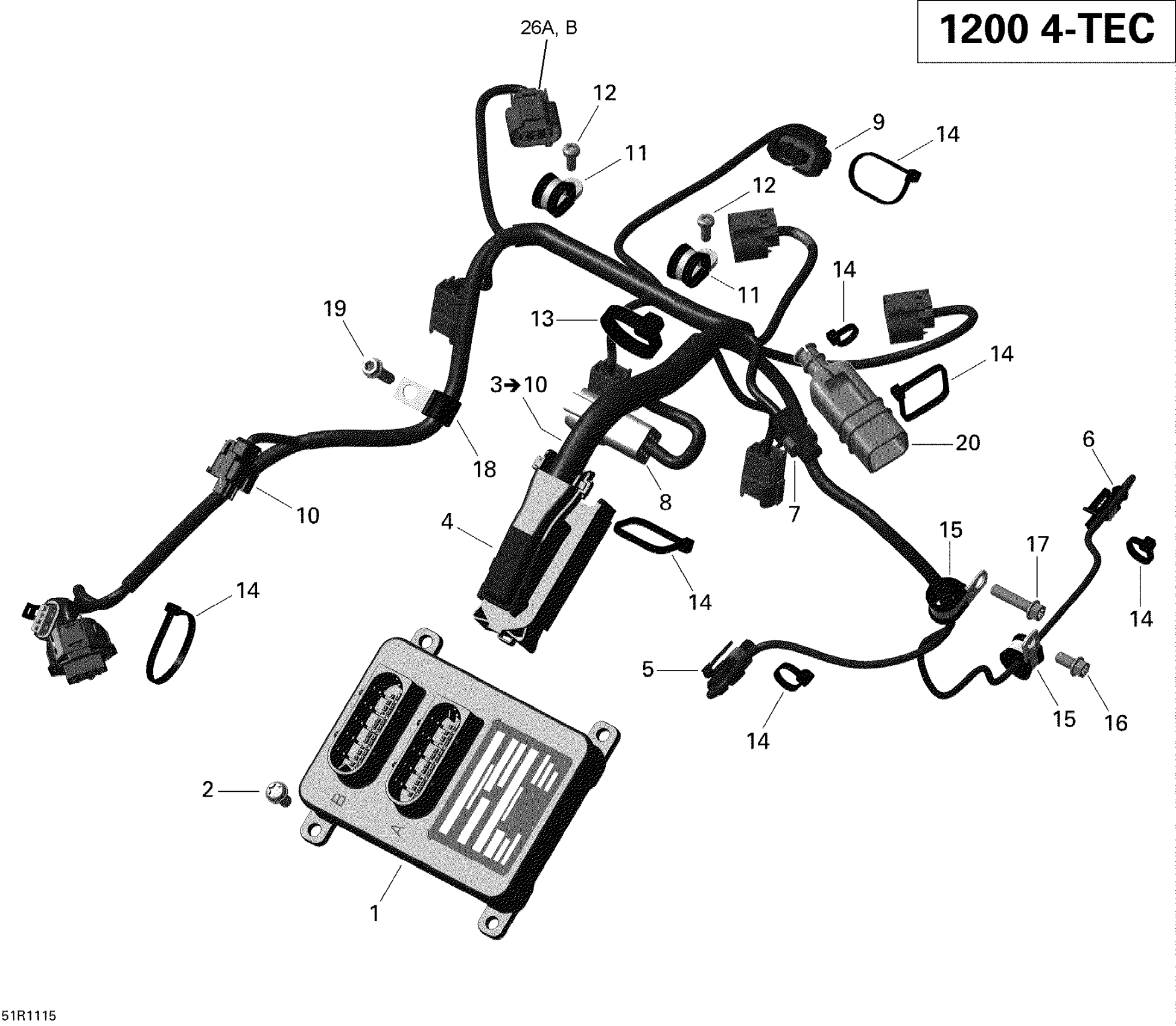

Ski-Doo Expedition LE 1200 XU, 2011 Engine Harness And Electronic Module Diagram

Housing Connector, 3 Circuits

Tie-Rap

CLAMP - Call your local BRP dealership

Torx Flange Screw M6 X 25

Cable Clamp

Torx Flange Screw M6 X 25

Not Available As Spare Part - Friction Washer

Seal
