Description

Price

1

Torx Flange Screw M6 X 30

420440647

$1.91

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Starter Relay

515176011

$59.67

4

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

6

Battery Wire

515176778

Unavailable

7

Ground Wire

515176777

Unavailable

8

HOUSING - Call your local BRP dealership

M28015

Unavailable

9

Start Cable

515176806

$34.30

10

Protector Cap

710000495

$9.84

11

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$154.45

12

Battery Bolt Kit

250000282

$3.39

13

Battery Cover

510005079

$17.13

14

Battery Strap

510005143

$72.36

15

Battery Support

515176804

$72.36

16

Strap Cover

510005146

$26.09

17

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

18

Flat Washer 6 mm

234061410

$1.19

19

Elastic Stop Nut M6

232561414

$1.78

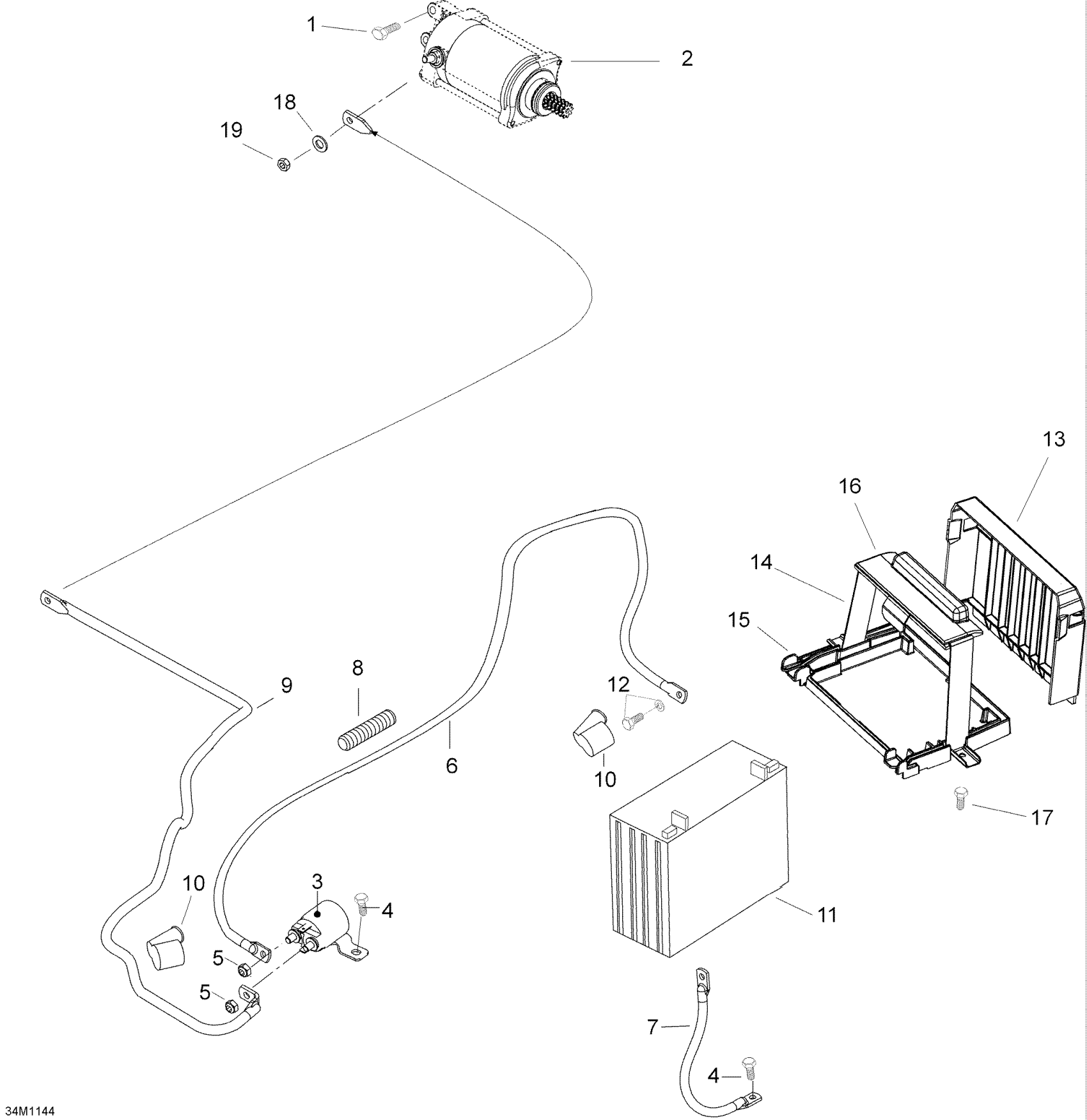

Ski-Doo Expedition LE 1200 XU, 2011 Battery And Starter Diagram

Torx Flange Screw M6 X 30

Not Available As Spare Part - Friction Washer

Starter Relay

Hex. Flange Screw M6 X 16, Scotch Grip

Hex. Flange Elastic Nut M6 x 1.0

Battery Wire

Ground Wire

HOUSING - Call your local BRP dealership

Start Cable

Protector Cap

Lead Battery 18 Amperes | Includes 4327 to 4327a

Battery Bolt Kit

Battery Cover

Battery Strap

Battery Support

Strap Cover

Hex. Flange Screw M6 X 16, Scotch Grip

Flat Washer 6 mm

Elastic Stop Nut M6
