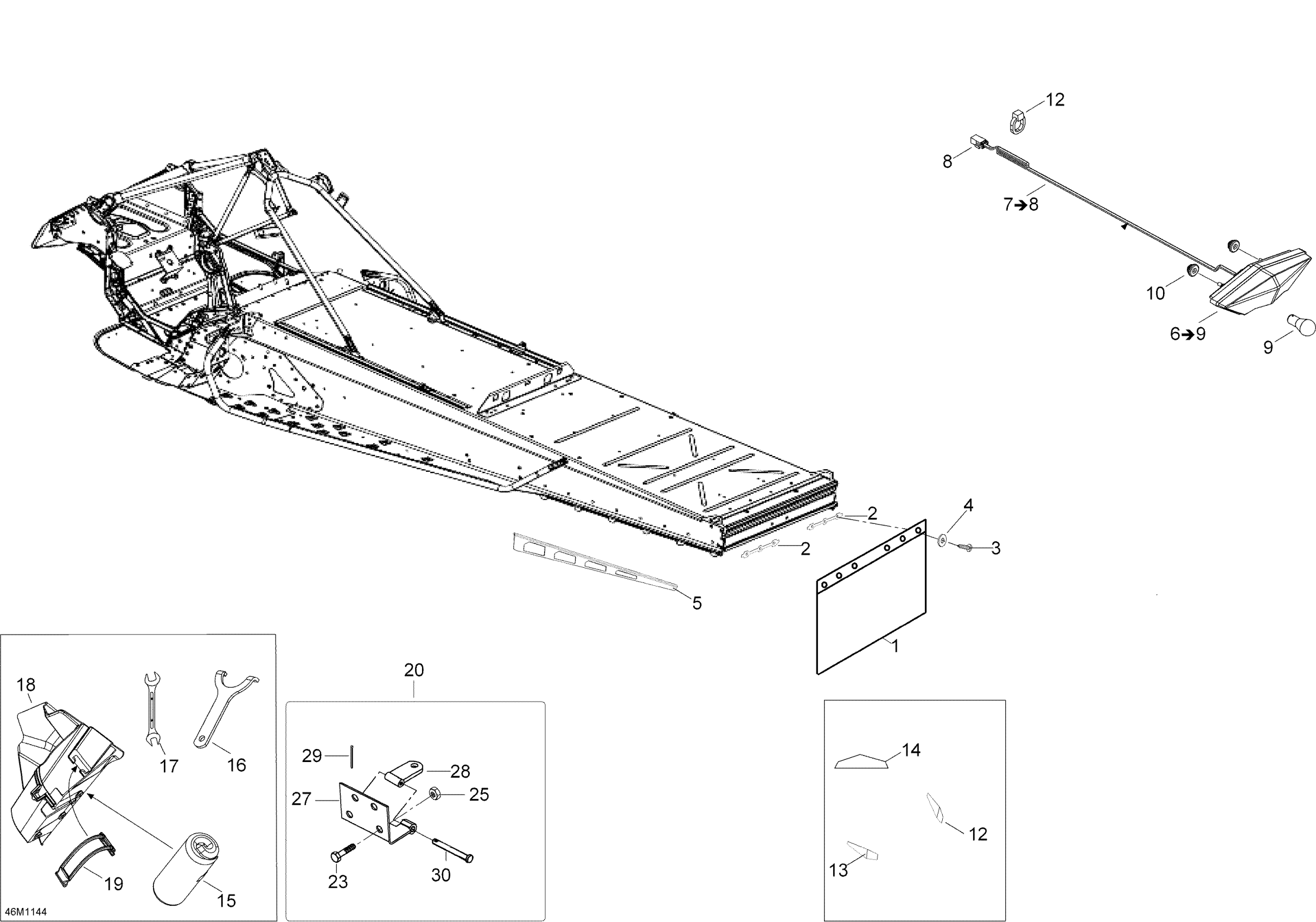

Ski-Doo Expedition LE 1200 XU, 2011 Utilities Diagram

#

Description
Price

1

Snow guard This part replaces M538629.

538629

Unavailable

2

THREADED PLATE - Call your local BRP dealership

520000847

Unavailable

3

Torx Screw M5 X 14

250000742

$1.20

4

Washer M5

250200025

Unavailable

5

RH Protector

520000693

$53.99

5

LH Protector

520000694

$53.99

6

Rear Light | Includes 200 to 200a

520000848

$96.12

7

Rear Wiring Harness

520000849

Unavailable

8

Male Housing, 3 Circuits

515175494

$15.35

9

Bulb

520000758

$7.49

10

Stopper Rubber

705014429

Unavailable

12

Yellow, RH Reflector

520001600

$31.51

13

Yellow, LH Reflector

520001601

$31.51

14

Red, Lateral Reflector

705003412

$13.28

15

Tool Kit | Includes 16 To 22

529000066

$46.99

16

ADJUSTMENT WRENCH - Call your local BRP dealership

529035582

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

TOOL KIT RACK - Call your local BRP dealership | Model-LE & SE

520000720

$16.89

19

Latch

520000528

$6.60

20

Carriage Bolt, M8 X 25 | XXC

207782544

$1.31

23

Hex. Flange Elastic Nut M8

233281414

Unavailable

25

Fitting Plate | Model- North America This part replaces M5344151.

5344151

Unavailable

27

TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.

548745

Unavailable

28

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

29

Cotter Pin

41031

$6.26

30

Not Available As Spare Part - Friction Washer

Unavailable
