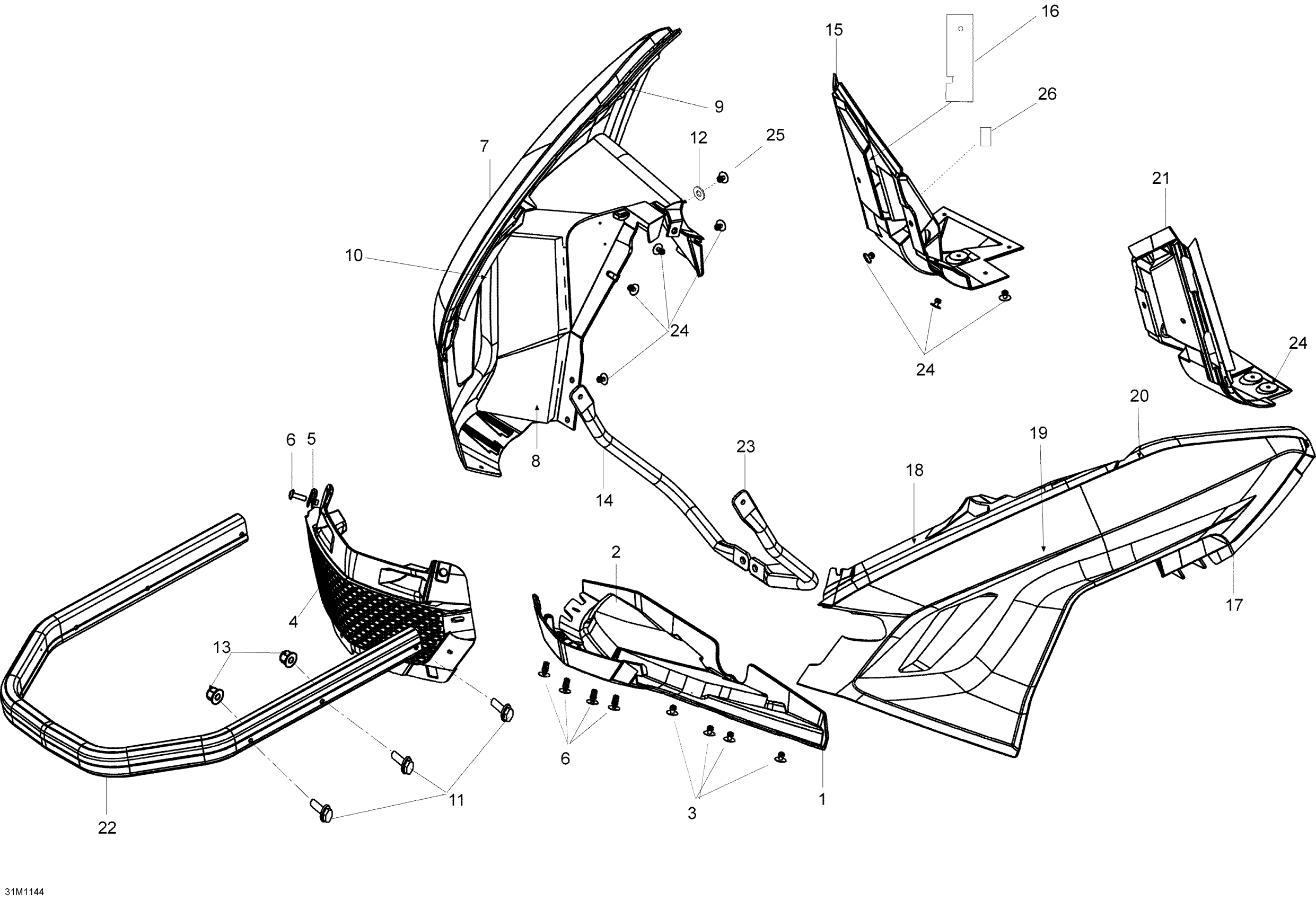

Ski-Doo Expedition LE 1200 XU, 2011 Bottom Pan Diagram

#

Description
Price

1

Black, Front Bottom Pan

502008006

$136.89

2

Insulator

502007002

$27.66

3

Pop Rivet 3/16"

293150103

Unavailable

4

Grille

502007145

$52.28

5

Panel Nut M6 X 1.0

250100198

Unavailable

6

Torx Screw M6 X 20

250000722

Unavailable

7

Bottom Pan R.H. | Package SWT & LE This part replaces 502007993.

502007994

$136.89

8

Insulator | Model LE, SE

502007006

$27.66

9

Insulator | Model LE, SE

502007008

Unavailable

10

Insulator | Except Package EXTREME

502007009

$17.66

11

Hex. Flange Screw M6 X 40

207664044

$2.18

12

WASHER M5 - Call your local BRP dealership

234052490

Unavailable

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

14

RH Bumper Support

502007015

$94.58

15

RH Rear Bottom Pan Ass'y | Includes 21 to 23

502008010

$93.05

16

Aluminium Foil

502007038

$16.12

17

Black, LH Bottom Pan | Except Package SE

502008000

$110.74

18

Insulator

502007003

$27.66

19

INSULATOR - Call your local BRP dealership

502007004

Unavailable

20

INSULATOR - Call your local BRP dealership

502007005

Unavailable

21

LH Rear Bottom Pan

502008012

$103.05

22

Clear Bumper

502007170

$129.20

23

LH Bumper Support

502007014

$94.58

24

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

25

Pop Rivet 3/16"

390402200

$0.26

26

Not Available As Spare Part - Friction Washer

Unavailable
