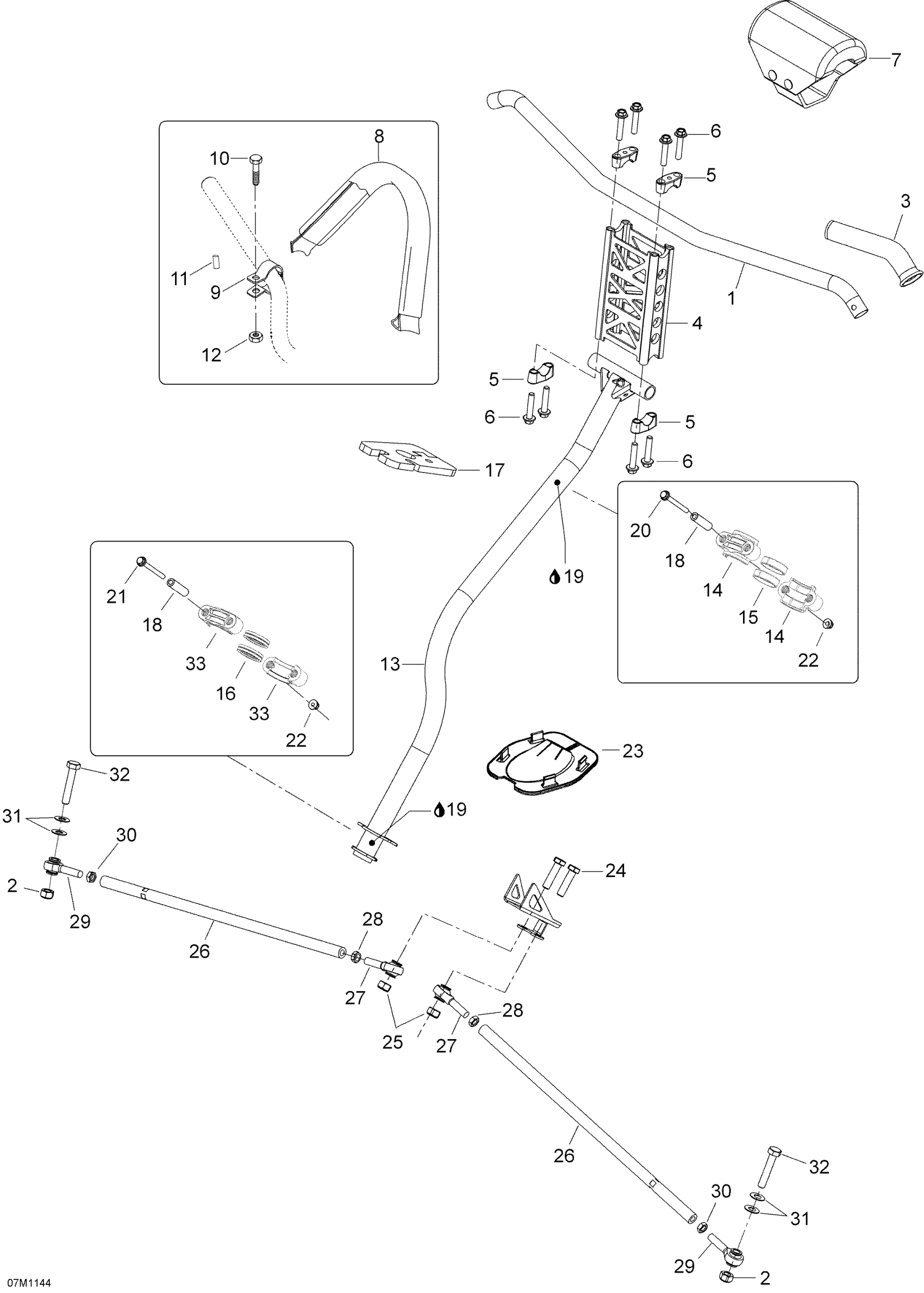

Ski-Doo Expedition LE 1200 XU, 2011 Steering Diagram

#

Description
Price

1

Handle Bar

506152722

$145.35

2

Elastic Stop Nut M10

232500416

$1.56

3

RH Grip 6-1/2"

506151530

Unavailable

4

Extension Kit ( 205mm ) This part replaces 860200269.

860200821

Unavailable

5

Steering Support | Includes 40 to 40a

506152751

$10.09

6

Hex. Flange Screw M8 x 40

250000285

$0.77

7

Steering Pad

506152192

Unavailable

8

Strap Ass'y | Package XMR

506152115

$43.05

9

Black Support Plate

506152536

$8.60

10

Hex. Flange Screw M6 X 20

207662084

Unavailable

11

Bushing | Package XMR

506152156

$5.35

12

Hex. Flange Elastic Nut M6

233261494

$1.26

13

Steering Column

506152964

$189.20

14

Upper Half Housing

506152219

Unavailable

15

Upper Vibration Ring

506152292

Unavailable

16

Lower Vibration Ring

506152518

Unavailable

17

Cushion

506152404

$25.35

18

Housing Bushing

506152297

Unavailable

19

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

20

Hex. Flange Screw M6 X 70

207667056

$3.61

21

Hex. Flange Screw M6 X 70

207667056

$3.61

22

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

23

Plate

506152163

$10.23

24

Hex. Screw M10 X 40

207004044

$4.65

25

Elastic Stop Nut M10

232500416

$1.56

26

Tie-Rod

506152498

$36.89

27

LH Thread Ball Joint

506152081

$39.97

28

LH Threaded Hex. Jam Nut M10

250100016

Unavailable

29

RH Threaded Ball Joint

506152019

$39.97

30

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

31

Washer

506152194

$4.42

32

Hex. Screw M10 X 55

207005544

$1.85

33

Lower Half-Housing

506152217

$5.57
