Front Suspension And Ski

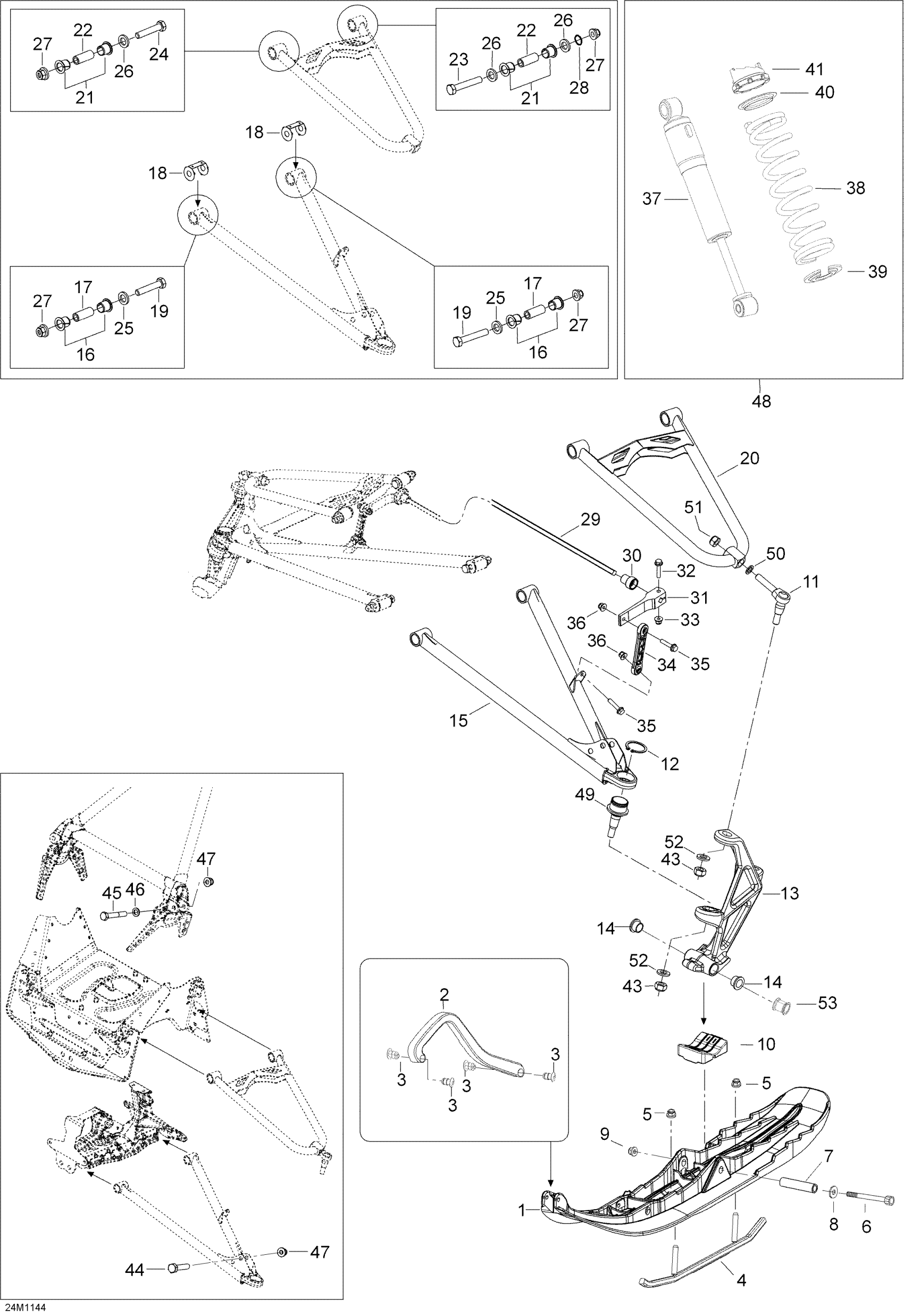

Ski-Doo Expedition LE 1200 XU, 2011 Front Suspension And Ski Diagram
#
Description
Price
1
Black Pilot Ski Ass'y 6.9 RH
505073056
Unavailable
1
Black Pilot Ski Ass'y 6.9 LH
505073055
Unavailable
2
Black, Handle
505070963
Unavailable
4
Carbide Runner Kit (Square Runner) | Includes 10f to 10f1
860201044
Unavailable
5
NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership This part replaces M33074.
33074
Unavailable
6
Hex. Screw M10 X 130 | Model-RT STD
250000703
Unavailable
7
Spacer
506133300
Unavailable
8
Washer
732900049
Unavailable
13
Clear LH Ski Leg This part replaces 505073043.
505073011
Unavailable
14
Leg Bushing
505072690
Unavailable
16
Bushing
505072208
Unavailable
17
Sleeve
505072209
Unavailable
18
Wear Plate
505072634
Unavailable
19
Screw Hex. M10 X 70
250001024
Unavailable
20
Upper Arm
505072375
Unavailable
21
Bushing
505072250
Unavailable
22
Sleeve
505072143
Unavailable
23
Screw Hex. M10 X 60
250001023
Unavailable
25
Washer
503189564
Unavailable
26
Washer
505072392
Unavailable
27
Hex. Flange Elastic Nut M10
250100165
Unavailable
28
O-Ring
505072448
Unavailable
30
Bushing
505072064
Unavailable
33
Elastic Flange Nut M6 X 1.0
233261416
Unavailable
34
Sway Bar Double Joint Link
505072204
Unavailable
36
Elastic Flange Nut M6 X 1.0
233261416
Unavailable
38
Full Moon Spring 300mm-16N/MM | Model-North America
505072882
Unavailable
39
Spring Seat
230076
Unavailable
40
Spring Guide
503191872
Unavailable
41
Adjustment Cam
505073625
Unavailable
44
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
46
Washer
503189564
Unavailable
48
Not Available As Spare Part - Friction Washer
Unavailable
50
Washer
503189276
Unavailable
