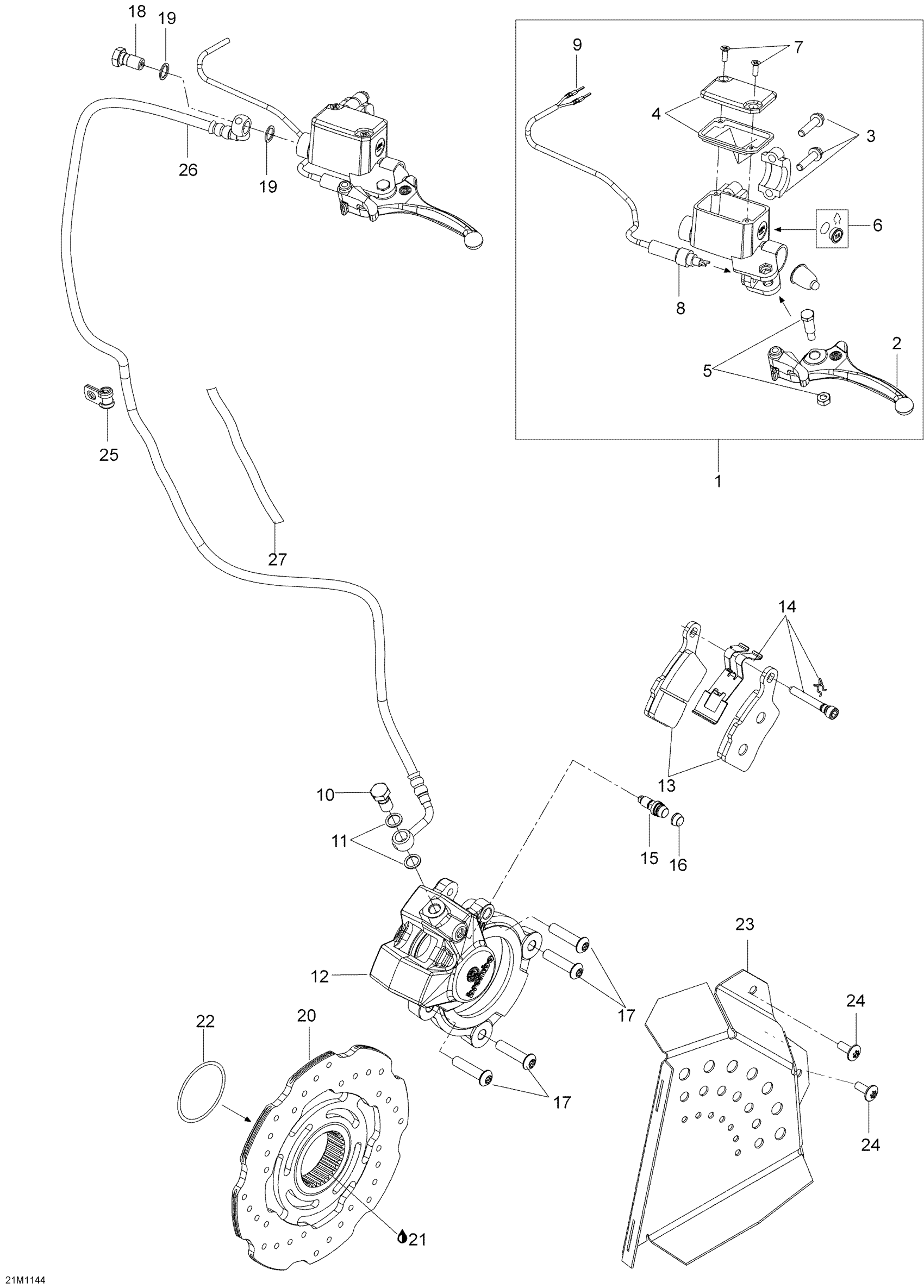

Ski-Doo Expedition LE 1200 XU, 2011 Brakes Diagram

#

Description
Price

1

Master Cylinder Ass'y | Includes 10 to 10h

507032598

$299.97

2

Lever With Parking Lock

507032476

$101.51

3

Clamp And Screw Kit

507032477

$22.79

4

Master Cylinder Reservoir Ass'y | Includes 10c to 10c1

507032478

$109.97

5

Pin Ass'y

415030000

$17.66

7

Screw M4 X 20

415129356

$2.17

8

Microswitch | Grand Touring

507032479

$96.89

10

Banjo Bolt

414920500

$8.49

11

Washer

414920600

$1.52

12

Brake Caliper | Includes 200 to 200c

507032720

$341.51

13

Brake Pads Kit

507032473

$50.74

14

Brake Spring Kit

507032722

$36.89

15

Bleeder

507032475

$16.89

15

Bleeder

507032475

$16.89

16

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

16

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

17

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$1.66

18

Banjo Bolt

414920500

$8.49

19

Washer

414920600

$1.52

20

Disk

507032513

$235.35

21

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

22

O-Ring

293300134

$2.25

23

Disk Protector

507032525

$69.97

24

Torx Screw M6 X 16

250000365

$1.74

25

Clamp

293650256

$4.36

26

HOSE - Call your local BRP dealership

507032515

Unavailable

27

Was 409901800 Tubing (13 mm)

219704400

$9.40
