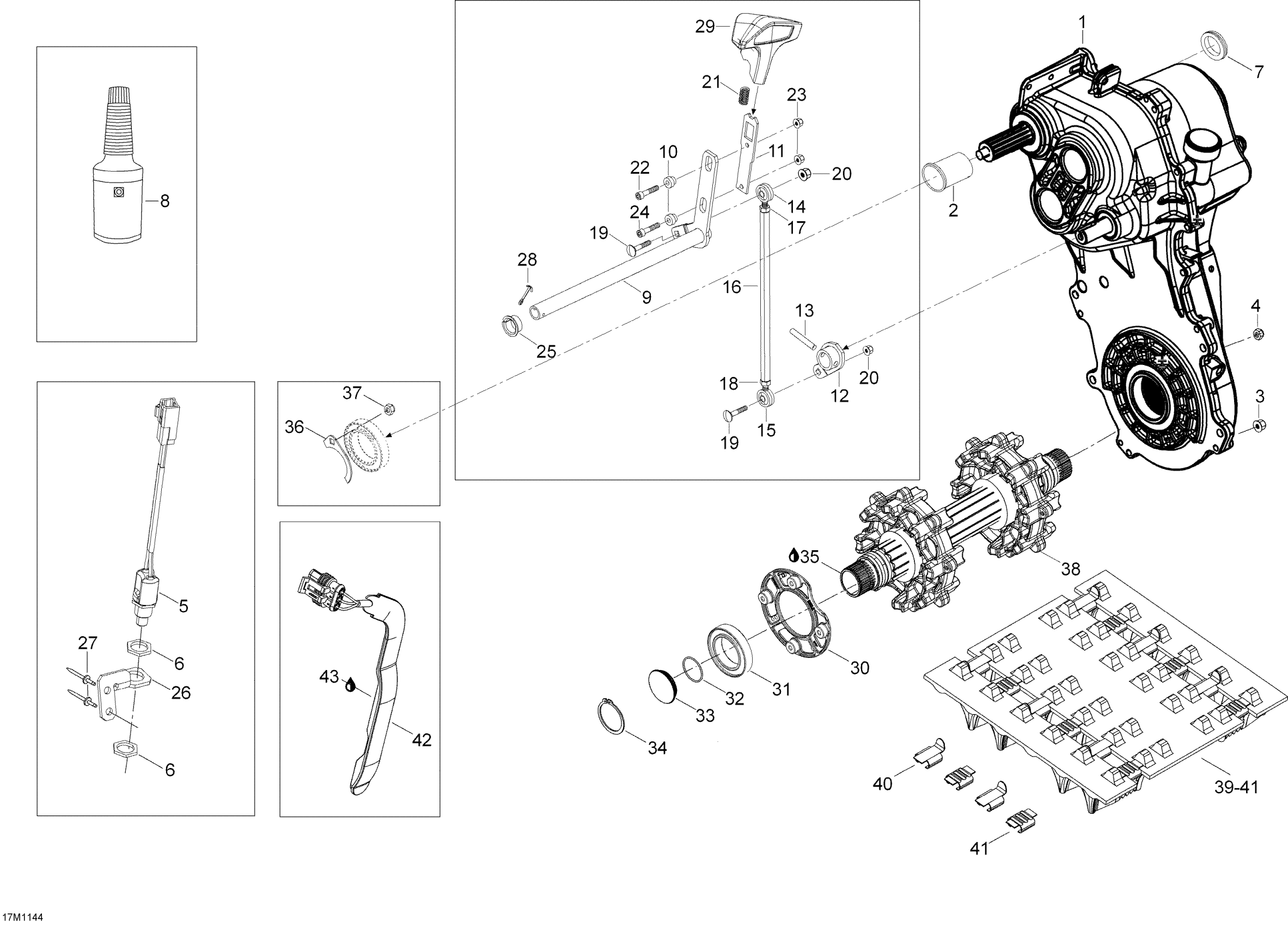

Ski-Doo Expedition LE 1200 XU, 2011 Drive System Diagram

#

Description
Price

1

Transmission Ass'y (Fast Ratio)

619230078

$2,149.99

2

Protective Rubber

504153054

$16.12

3

Hex. Flange Elastic Nut M8

233281414

Unavailable

4

Hex. Elastic Stop Nut M8

232581414

Unavailable

5

Switch Ass'y

515176472

$71.51

6

Brass Nut

250000373

Unavailable

7

RUBBER PLUG - Call your local BRP dealership

504152818

Unavailable

8

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

9

Lever Shifter

504153288

$144.58

10

Sleeve

504152787

$26.89

11

Shifter Arm

504153287

$52.28

12

WELDED LEVER - Call your local BRP dealership

504152834

Unavailable

13

Pin

41012

$5.22

14

RH BALL JOINT - Call your local BRP dealership

707000689

Unavailable

15

LH BALL JOINT - Call your local BRP dealership

707000690

Unavailable

16

ROD - Call your local BRP dealership

504152836

Unavailable

17

Hex. Nut M6

232061414

$0.44

18

LH HEX. NUT M6 - Call your local BRP dealership

232066414

Unavailable

19

Carriage Bolt M6 X 20 | DS 650 X

207762044

Unavailable

20

Elastic Stop Nut M6

232561414

Unavailable

21

Spring

504152882

$5.89

22

Socket Screw M5 X 25

205052544

$1.34

23

Flange Elastic Nut M5

233251434

$1.66

24

Forming Screw M5 x 16

250000676

$0.83

25

Bushing

504152890

$42.49

26

Sensor Bracket

504152902

$15.35

27

Rivet Hucklok

293150163

$2.82

28

Cotter Pin

250400035

$2.06

29

Handle

504152837

$76.12

30

Retaining Ring

504153886

Unavailable

31

Ball Bearing

293350059

Unavailable

32

O-Ring

293300122

$2.06

33

Magnetic Cap

504152619

$23.05

34

Circlip

504152572

Unavailable

35

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

36

Bearing Housing Ass'y | Includes 2500 to 2500a

504153418

Unavailable

37

Hex. Elastic Stop Nut M8

232581414

Unavailable

38

Drive Axle Ass'y | With Gear Box 1.98

504153976

$516.89

39

Track 20 X 154 X 1,25 | Includes 3200 to 3200b

504154705

Unavailable

40

CLEAT-GUIDE - Call your local BRP dealership

M5318323

Unavailable

41

CLEAT - Call your local BRP dealership

M5318322

Unavailable

42

Rotation Sensor

504152896

$35.35

43

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

Unavailable
