Description

Price

1

Valve Cover Ass'y | Includes 1 to 2

420611856

Unavailable

2

Gasket

420431041

$19.20

3

Torx Flange Screw M6 X 40

420440282

$3.11

4

Spark Plug Pipe Ass'y | Includes 4 to 6

420460585

$5.22

5

O-Ring

420431740

$12.52

6

O-Ring

420631611

$9.31

7

Spark Plug NGK CR8EKB

415129429

$11.32

8

Stick Coil | Includes 8 to 9 This part replaces 420665810.

420665811

$160.74

9

Socket Head Screw M6 X 20

205062044

$1.07

10

Camshaft Position Sensor Ass'y

420664046

$70.82

11

O-Ring

420631890

$4.24

12

Torx Flange Screw M6 X 16

420440162

$3.11

13

Vent Valve Ass'y | Includes no. 39-41

420856506

$67.57

14

V-Ring 20S FPM Blow By Valve

420630125

$9.37

15

O-Ring

420950870

$4.41

16

Torx Flange Screw M6 X 25

420440234

Unavailable

17

Cable Clamp

420851492

$13.58

O

Not Available As Spare Part - Friction Washer

Unavailable

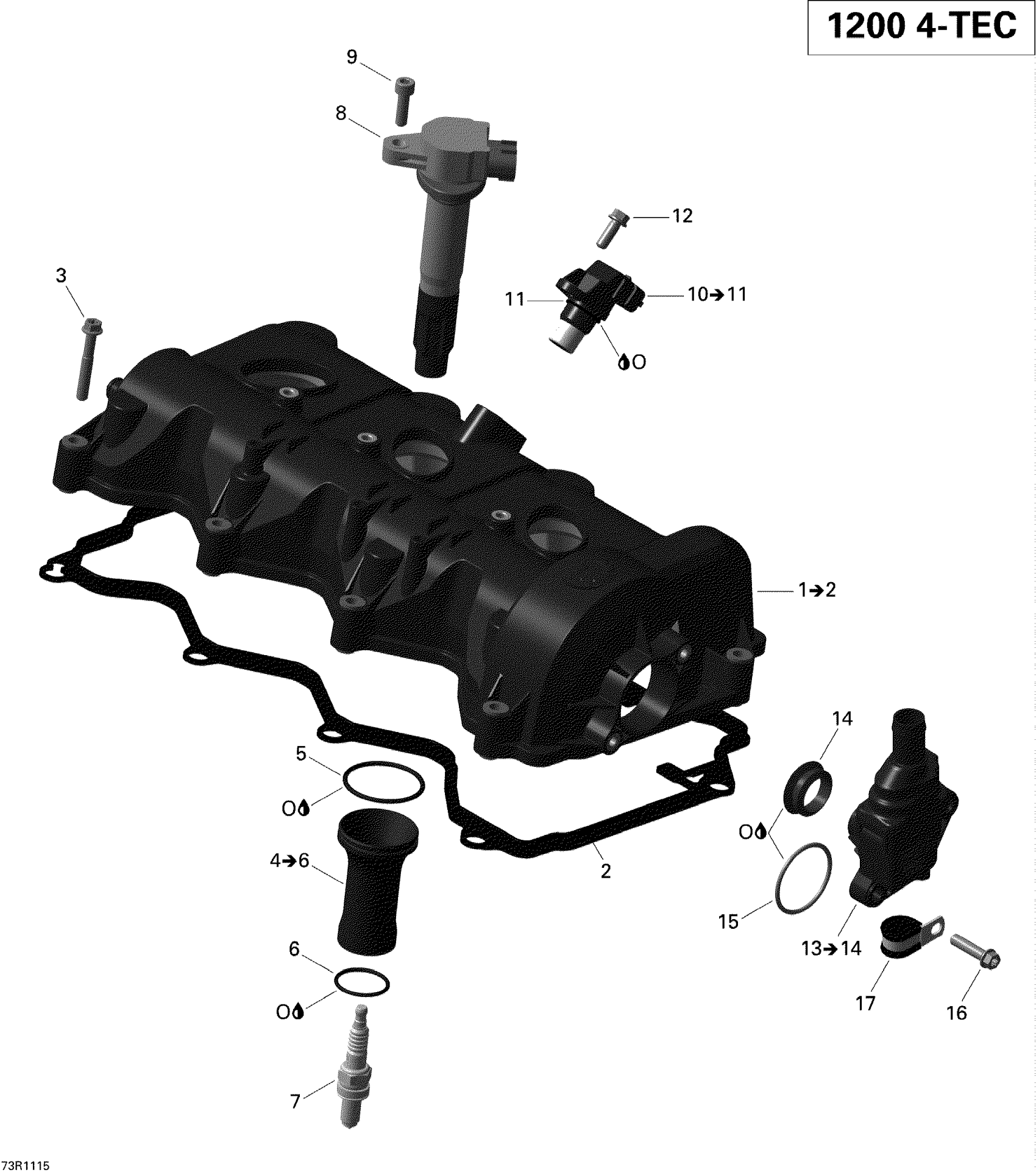

Ski-Doo Expedition LE 1200 XU, 2011 Valve Cover Diagram

Valve Cover Ass'y | Includes 1 to 2

Torx Flange Screw M6 X 25

Not Available As Spare Part - Friction Washer
