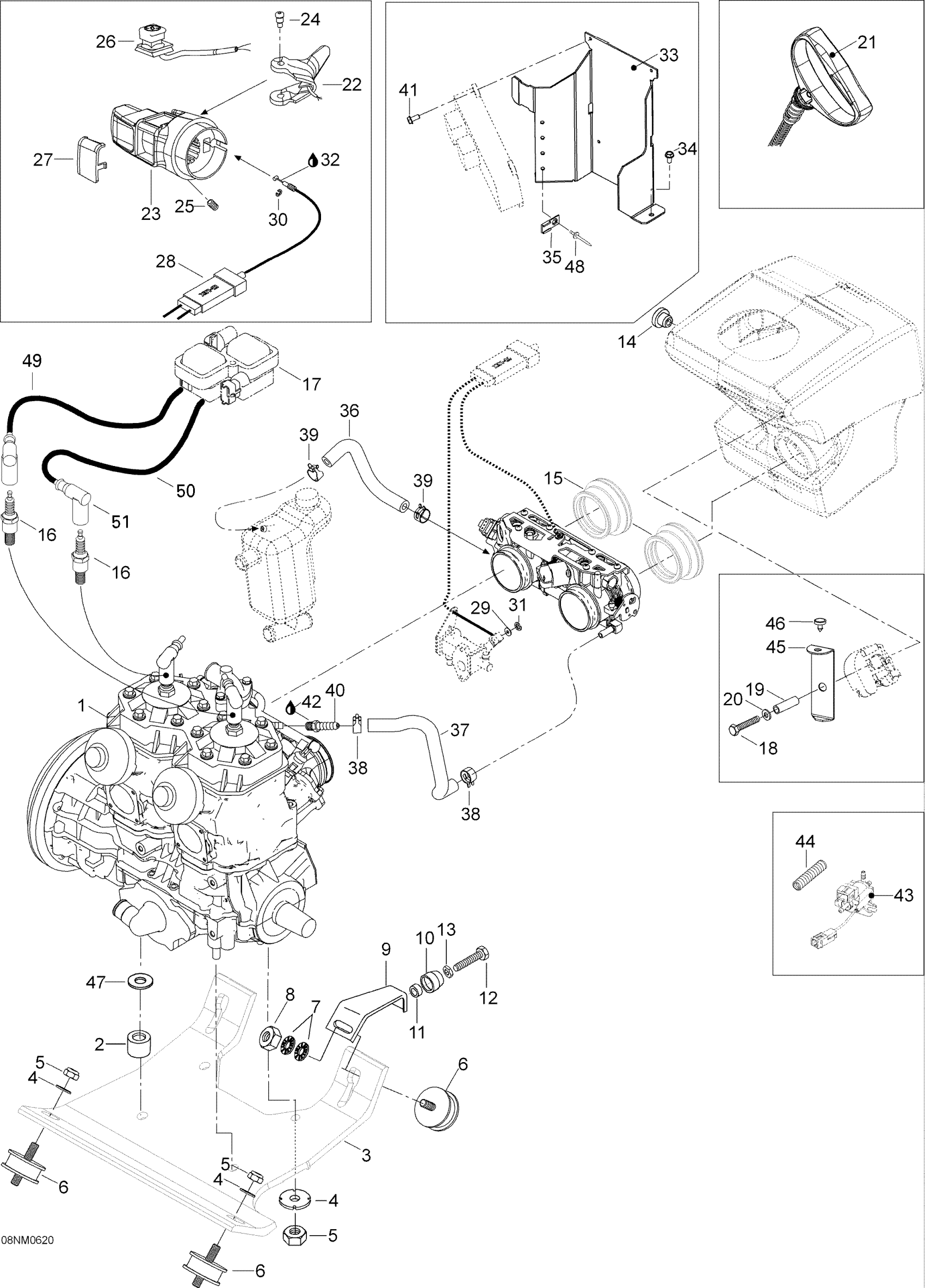

Ski-Doo Expedition 600 H.O. SDI, 2006 Engine And Engine Support Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

SLEEVE - Call your local BRP dealership

M5446347

Unavailable

3

Engine Support

605251437

Unavailable

4

Lock Washer

512056700

$3.01

5

Elastic Locking Nut M10 X 1.5

233601416

$1.63

6

RUBBER MOUNT - Call your local BRP dealership

570128700

Unavailable

7

Lock Washer D10

20068

$1.91

8

Hex. Nut M10 X 1.5

232006414

$1.27

9

Support

605352447

Unavailable

10

SLEEVE - Call your local BRP dealership

605449240

Unavailable

11

Rubber Washer

M2846014

Unavailable

12

Hex. Screw M8 X 25

M40121

Unavailable

13

NUT - Call your local BRP dealership

M33003

Unavailable

14

GROMMET - Call your local BRP dealership

570065500

Unavailable

15

INTAKE ADAPTOR - Call your local BRP dealership

605351756

Unavailable

16

Spark Plug NGK BR8ECS

512060029

$11.13

17

Ignition Coil Ass'y

420891645

Unavailable

18

SCREW M6 X 45 - Call your local BRP dealership

M40084

Unavailable

19

SPACER - Call your local BRP dealership

512059812

Unavailable

20

Lock Washer M6, Black

234161471

$0.51

21

Starter Grip

572084400

$14.10

22

Throttle Handle

512059481

$70.12

23

THROTTLE HOUSING - Call your local BRP dealership

512059763

Unavailable

24

Flange Screw

732601143

$3.90

25

Socket Set Screw M8 X 10

414440800

$3.88

26

Kill Switch

515175410

Unavailable

27

Switch Cover

572100901

$14.10

28

THROTTLE CABLE - Call your local BRP dealership

512059362

Unavailable

29

Flat Washer 8 mm, Nylon

234081100

$1.15

30

Circlip

414753500

$0.67

31

Circlip

M31038

Unavailable

32

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

33

SUPPORT PLATE, ECU - Call your local BRP dealership

605353805

Unavailable

34

SCREW-M6X12 - Call your local BRP dealership

M40327

Unavailable

35

Clip

270000141

$9.57

36

Hose 8 mm

509000093

Unavailable

37

HOSE-FORMED - Call your local BRP dealership This part replaces 512059990.

605354601

Unavailable

38

Spring Clamp

414655700

$0.66

39

Tridon Gear Clamp

293650170

$2.00

40

Male Connector 1/8"-27 NPT

512060196

Unavailable

41

Hex. Forming Screw M5 X 16

210251650

$1.06

42

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

43

Heating Element Bracket

512059809

Unavailable

44

Tubing

M28004

Unavailable

45

SUPPORT, HOOD - Call your local BRP dealership

605352895

Unavailable

46

Plug

605452114

$8.34

47

WASHER M10 - Call your local BRP dealership

20005

Unavailable

48

Rivet

36005

$1.96

49

CABLE ASS?Y 245 MM PTO - Call your local BRP dealership

420664305

Unavailable

50

Spark Plug Cable, 790 mm, Rear

420665333

$52.96

51

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable
