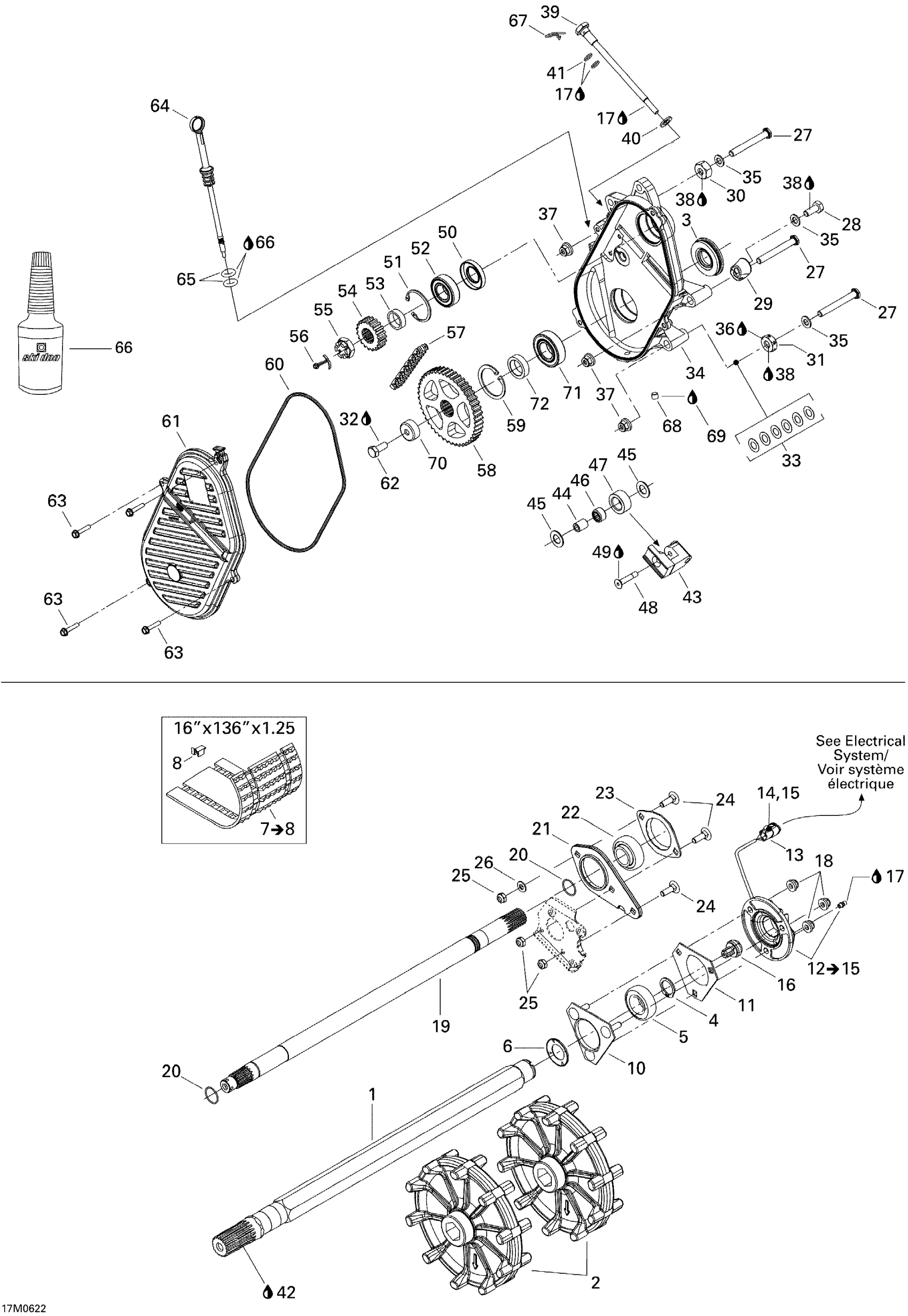

Ski-Doo Expedition 550F, 2006 Drive System Diagram

#

Description
Price

1

DRIVE AXLE - Call your local BRP dealership

501027400

$256.89

2

SPROCKET, 9 TEETH - Call your local BRP dealership

504151781

Unavailable

3

Oil Seal Ass'y

504151918

$19.20

4

CIRCLIP - Call your local BRP dealership

371910200

Unavailable

5

Ball Bearing

293350060

$38.49

6

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

7

Track 16" X 136" X 1.25" Ass'y | Includes 7 to 9

504152456

$929.99

8

Track Guide | Track Width 16''

415129528

$3.12

9

Not Available As Spare Parts

XXX

Unavailable

10

BEARING HOUSING - Call your local BRP dealership

504151860

$9.71

11

FLANGE - Call your local BRP dealership

501025000

Unavailable

12

Rotation Sensor

504152345

$73.05

13

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515175671

$10.60

14

Female Terminal

278000632

$1.69

15

Female Lock, 3 Circuits

515175676

$5.11

16

MAGNETIC ADAPTOR - Call your local BRP dealership

504152040

Unavailable

17

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

18

Hex. Flange Elastic Nut M8

233281414

$1.14

19

COUNTER SHAFT - Call your local BRP dealership

504152292

$491.51

20

Circlip

371910000

$0.98

21

SPACER - Call your local BRP dealership

504151968

Unavailable

22

Ball Bearing Kit This part replaces 504152535.

415129555

$54.58

23

BEARING HOUSING ASS'Y - Call your local BRP dealership

504153089

$14.35

24

Carriage Bolt, M8 X 25 | XXC

207782544

$1.31

25

Hex. Elastic Stop Nut M8

232581414

$0.47

26

Flat Washer 8 mm

234081410

$0.69

27

HEX. SCREW M10 X 80 - Call your local BRP dealership

250000151

$1.62

28

Hex. Screw M10 X 25

207102544

$1.11

29

Spacer

504152252

Unavailable

30

Spacer

504083800

Unavailable

31

SPACER - Call your local BRP dealership

504152237

$7.03

32

Loctite 271, 10 ml

293800005

$20.77

33

WASHER - Call your local BRP dealership

504073700

$3.08

34

CHAINCASE - Call your local BRP dealership

504152481

$289.20

35

Washer

503175800

$3.26

36

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

37

Hex. Flange Elastic Nut M10

233201414

$1.26

37

Hex. Flange Elastic Nut M10

233201414

$1.26

38

Loctite 243, 10 ml

293800060

$20.77

39

ADJUSTMENT SCREW - Call your local BRP dealership

732601314

Unavailable

40

Flat Washer 10 mm

234001410

$0.98

41

O-Ring

414484400

$7.31

42

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

43

Chain Tensioner

504151951

Unavailable

44

SPACER - Call your local BRP dealership

504080200

$15.35

45

WASHER - Call your local BRP dealership

504080300

$4.63

46

NEEDLE BEARING - Call your local BRP dealership

405403000

$22.28

47

ROLLER - Call your local BRP dealership

414531300

Unavailable

48

SCREW - Call your local BRP dealership

732601144

$1.37

49

Loctite 271, 10 ml

293800005

$20.77

50

SEAL - Call your local BRP dealership

504151927

Unavailable

51

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

52

Ball Bearing

293350115

$11.15

53

SHIM - Call your local BRP dealership

504152587

$6.89

54

Sprocket, 19 Teeth

504152031

$102.28

55

HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership

250000012

Unavailable

56

PIN COTTER - Call your local BRP dealership

371006300

Unavailable

57

DRIVE CHAIN, 72 LINKS - Call your local BRP dealership

504151830

Unavailable

58

43 TEETH SPROCKET, LARGE - Call your local BRP dealership | Except Europe

504148500

Unavailable

59

CIRCLIP, INTERIOR - Call your local BRP dealership

415064300

Unavailable

60

O-Ring

415046400

$24.58

61

CHAINCASE COVER - Call your local BRP dealership

504152471

$161.51

62

Hex. Screw M10 X 25

207102544

$1.11

63

Hex. Flange Screw M6 X 30 | International

210263050

$1.63

64

FILLER CAP ASS'Y - Call your local BRP dealership

504151703

Unavailable

65

O-RING - Call your local BRP dealership

414969400

Unavailable

66

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

67

Hair Pin

414575600

$1.51

68

Plug 1/8”-27

504151921

$3.97

69

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

70

CAP - Call your local BRP dealership

504152460

Unavailable

71

Ball Bearing

504152005

Unavailable

72

Shim

504152058

Unavailable
