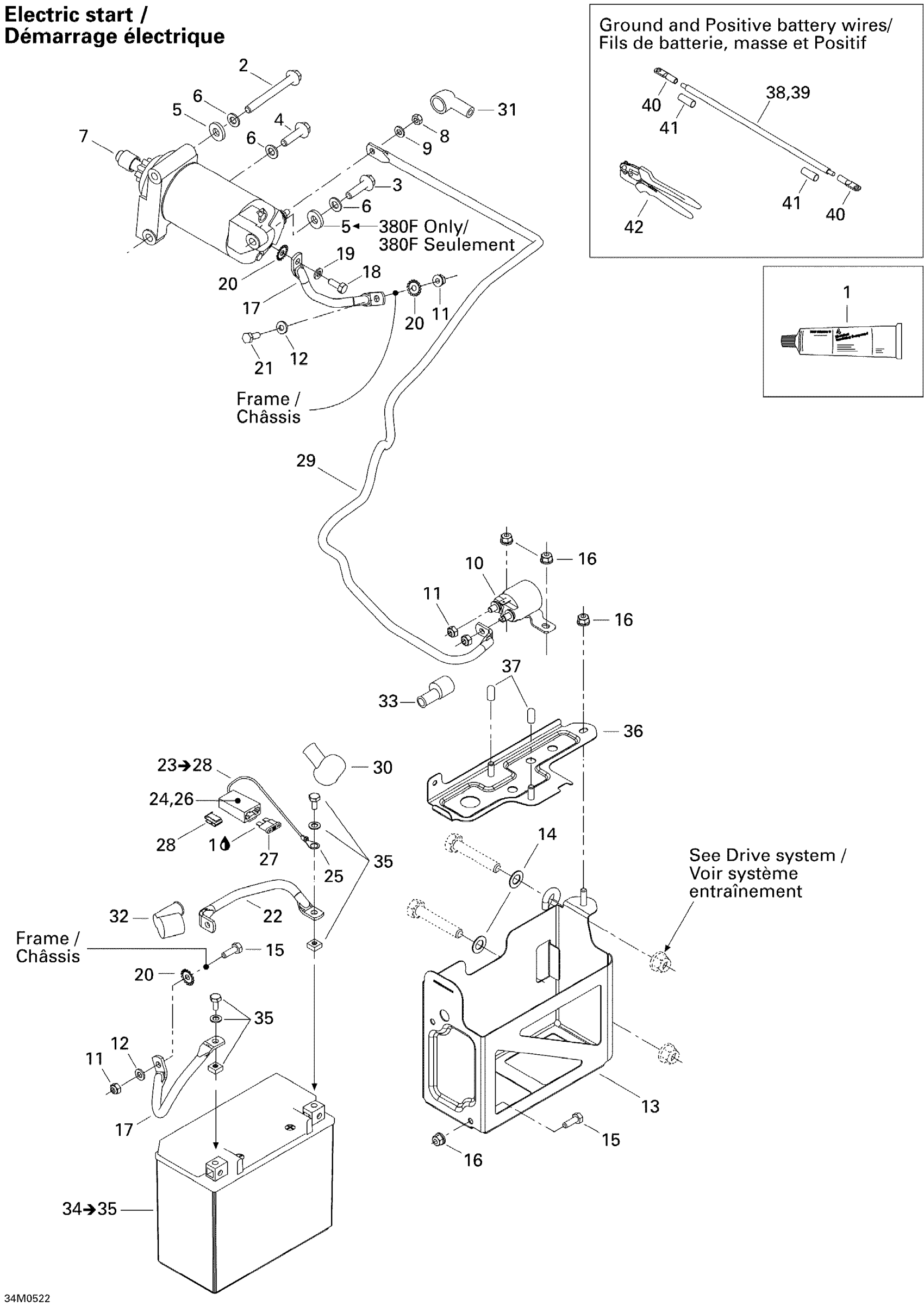

Ski-Doo Expedition 550F, 2005 Battery And Starter Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

2

Hex. Flange Screw M8 X 85, Scotch Grip

207588544

Unavailable

3

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

Unavailable

4

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

Unavailable

5

Flat Washer M8.5 x 18

293050001

Unavailable

6

Flat Washer With Teflon 8 mm

250200008

Unavailable

7

Starter | Includes 1 to 5

515176585

Unavailable

8

Elastic Stop Nut M6

232561414

Unavailable

9

Flat Washer 6 mm

234061410

Unavailable

10

Starter Relay

515176011

Unavailable

11

Elastic Stop Nut M6

232561414

Unavailable

12

Flat Washer 6 mm

234061410

Unavailable

13

Battery Support Black

515176230

Unavailable

14

Washer

503175800

$3.26

15

Hex. Screw M6 X 18

207161844

Unavailable

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

17

Ground Wire

515175749

$19.20

18

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

Unavailable

19

Flat Washer 6 mm

234061410

Unavailable

20

Lock Washer Serrated M6

250200041

Unavailable

21

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Battery Fuse Wire | Includes 21 to 22

515175489

Unavailable

24

Female Terminal

409004200

Unavailable

25

Open Barrel

278000992

$1.79

26

Fuse Holder

409004000

Unavailable

27

Fuse, 30 Amperes

410917200

$3.22

28

CLIP - Call your local BRP dealership

409014200

$4.23

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Protection Cap

570151000

$18.43

31

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

32

PROTECTION CAP - Call your local BRP dealership

570064200

Unavailable

33

Protector Cap | XT

515175919

$16.89

34

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

35

Battery Bolt Kit

250000282

$2.95

36

BATTERY STRIP - Call your local BRP dealership

515175735

Unavailable

37

Cap

515176141

Unavailable

38

Ground Cable Battery, no 6, meter)

278001680

Unavailable

39

Cable Battery, no 6, meter)

278001690

Unavailable

40

Terminal 45°, Small Hole

278001682

Unavailable

40

TERMINAL 45, SMALL HOLE - Call your local BRP dealership

278001683

Unavailable

40

TERMINAL 90, SMALL HOLE - Call your local BRP dealership

278001684

Unavailable

40

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

40

TERMINAL 45, BIG HOLE - Call your local BRP dealership

278001686

Unavailable

40

TERMINAL 90, BIG HOLE - Call your local BRP dealership

278001687

Unavailable

40

FLAT TERMINAL - Call your local BRP dealership

278001688

Unavailable

40

Terminal 30°, 2 Holes

278001776

Unavailable

41

Was 710000483 Heat Shrink Tubing

219704447

Unavailable

42

Crimp Plier

529035730

Unavailable
