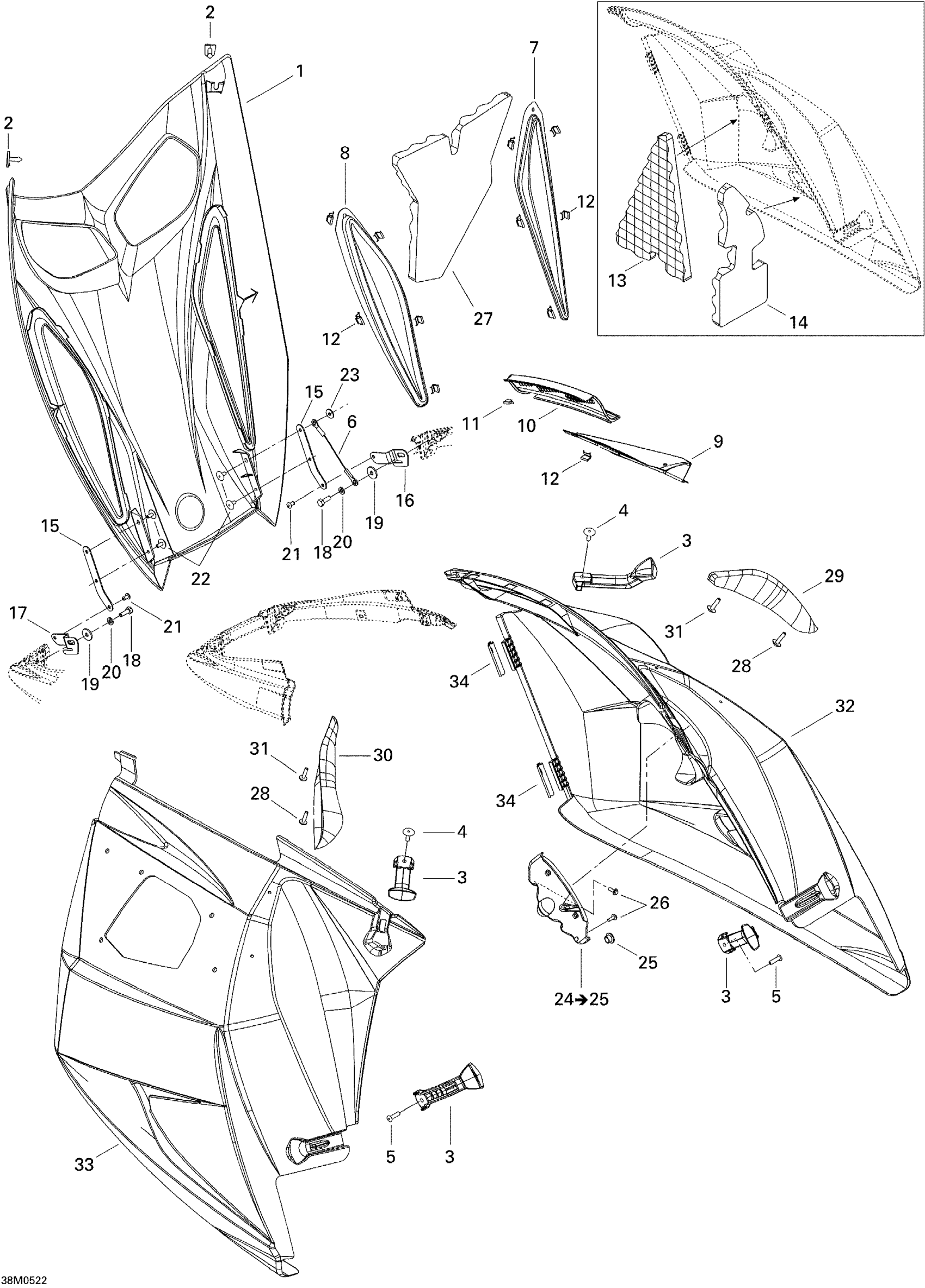

Ski-Doo Expedition 550F, 2005 Hood Diagram

#

Description
Price

1

Hood, Black

517302788

$207.43

2

ROD_RETAINING - Call your local BRP dealership

517302543

Unavailable

3

Panel Latch

517302448

$13.34

4

Pop Rivet 3/16”

293150087

$0.90

5

Pop Rivet 3/16”

390410100

$0.52

6

RETAINER CABLE - Call your local BRP dealership

517302673

Unavailable

7

RH HOOD GRILL - Call your local BRP dealership

517302936

Unavailable

8

LH HOOD GRILL - Call your local BRP dealership

517302937

Unavailable

9

RH PANEL GRILL - Call your local BRP dealership

517302938

Unavailable

10

AIR INTAKE GRILL - Call your local BRP dealership

509000333

Unavailable

11

Clip | Europe Models

517306751

$1.91

12

CLIP - Call your local BRP dealership

517302789

Unavailable

13

RH PANEL FRONT FOAM - Call your local BRP dealership

517303082

Unavailable

14

RH PANEL REAR FOAM - Call your local BRP dealership

517303492

Unavailable

15

UPPER HALF-HINGE - Call your local BRP dealership

517302544

Unavailable

16

RH HINGE ASS'Y - Call your local BRP dealership

517303668

Unavailable

17

LH Lower Half-Hinge

517302445

Unavailable

18

Hex. Screw M6 X 18

207161844

Unavailable

19

Flat Washer

224061121

$0.51

20

Lock Washer M6, Black

234161471

$0.51

21

Avex Rivet

390909200

$0.28

22

Pop Rivet 3/16"

390406500

$0.81

23

Flat Washer

517225900

$0.16

24

RH Console | Includes 24 to 25

517303107

Unavailable

25

Black, Cap

275500241

$3.16

26

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

27

Hood Foam

517303466

Unavailable

28

Phillips Screw K40 X 16

250000723

$0.93

29

RH AIR DEFLECTOR - Call your local BRP dealership

517302800

Unavailable

30

LH AIR DEFLECTOR - Call your local BRP dealership

517302801

Unavailable

31

Plastite Screw Type K-40, M4 X 25

250000101

$3.30

32

RH PANEL, BLACK - Call your local BRP dealership

517303254

Unavailable

33

LH PANEL, BLACK - Call your local BRP dealership

517303255

Unavailable

34

Hinge Lock

517302823

$11.64
