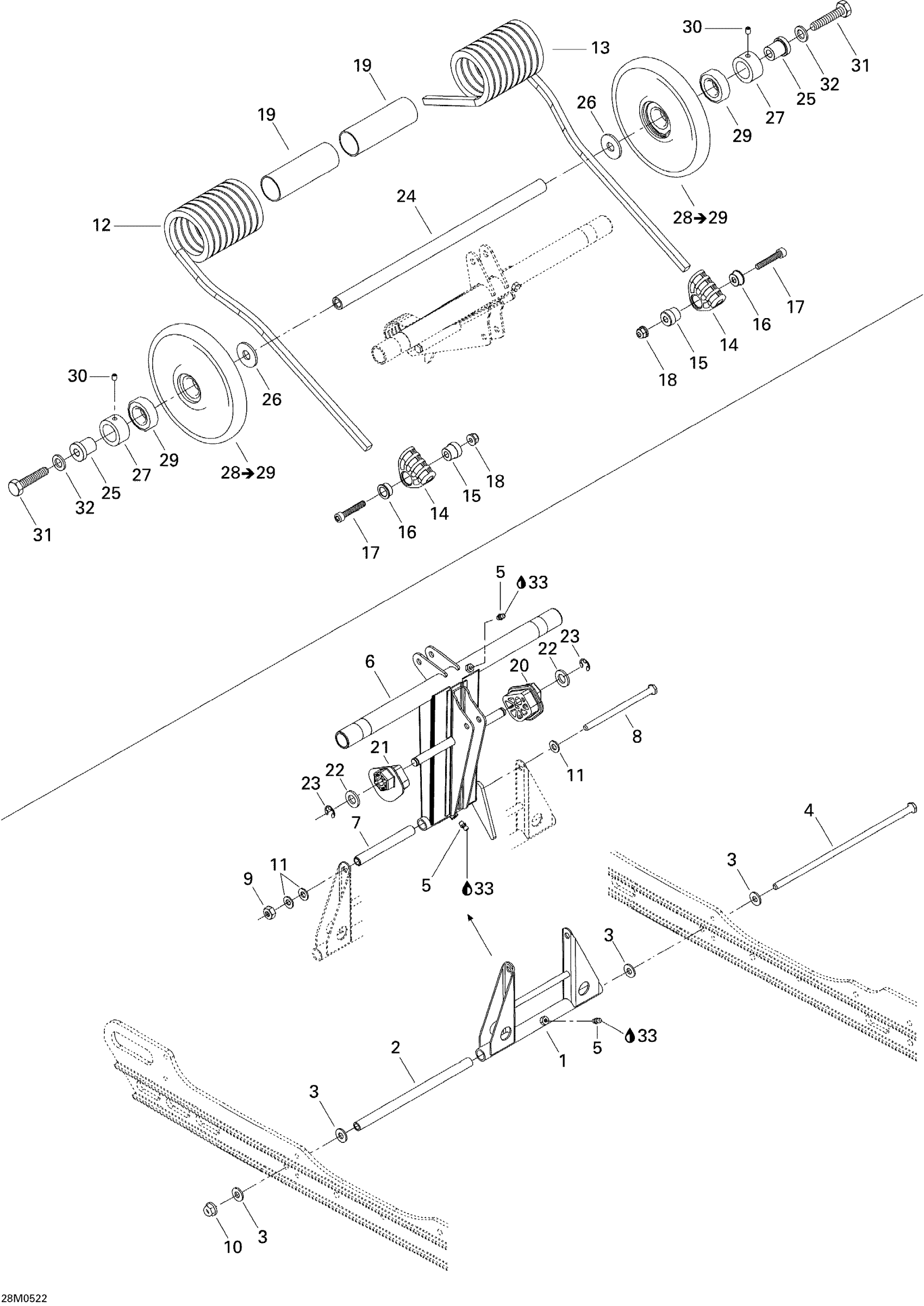

Ski-Doo Expedition 550F, 2005 Rear Arm Diagram
#
Description
Price
1
Pivot Arm
503189793
Unavailable
2
Pivot Arm Axle
503189156
Unavailable
4
Bolt M8 X 248mm
503192440
Unavailable
5
Grease Fitting
408200700
Unavailable
6
Rear Arm
503191057
Unavailable
7
Upper Axle, Pivot Arm
503144300
Unavailable
8
Bolt M8, Short
732601197
Unavailable
9
Hex. Elastic Stop Nut M8
232581414
Unavailable
10
Hex. Flange Elastic Nut M8
233281414
Unavailable
11
Flat Washer 8 mm
234081410
Unavailable
12
RH SPRING, SQUARE - Call your local BRP dealership | Europe
503190773
Unavailable
13
LH SPRING, SQUARE - Call your local BRP dealership | Europe
503190775
Unavailable
14
Spring Support
503189657
Unavailable
15
Spring Guide Axle
503188934
Unavailable
16
CUSHION RETAINER - Call your local BRP dealership
503188929
Unavailable
17
Socket Head Screw M8 X 45
205084544
Unavailable
18
Hex. Flange Elastic Nut M8
233281414
Unavailable
19
BUSHING - Call your local BRP dealership
503190333
Unavailable
20
LH CAM ADJUSTER - Call your local BRP dealership
503190023
Unavailable
21
RH CAM ADJUSTER - Call your local BRP dealership
503190022
Unavailable
23
E-Circlip
293370013
Unavailable
24
SHAFT - Call your local BRP dealership
503190387
Unavailable
25
BUSHING - Call your local BRP dealership
503190422
Unavailable
28
Wheel 165 Ass'y
503190816
Unavailable
29
Ball Bearing
293350115
Unavailable
31
Hex. Screw M10 X 55, Scotch Grip | RT
207205544
Unavailable
32
Washer
732900049
Unavailable
33
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
