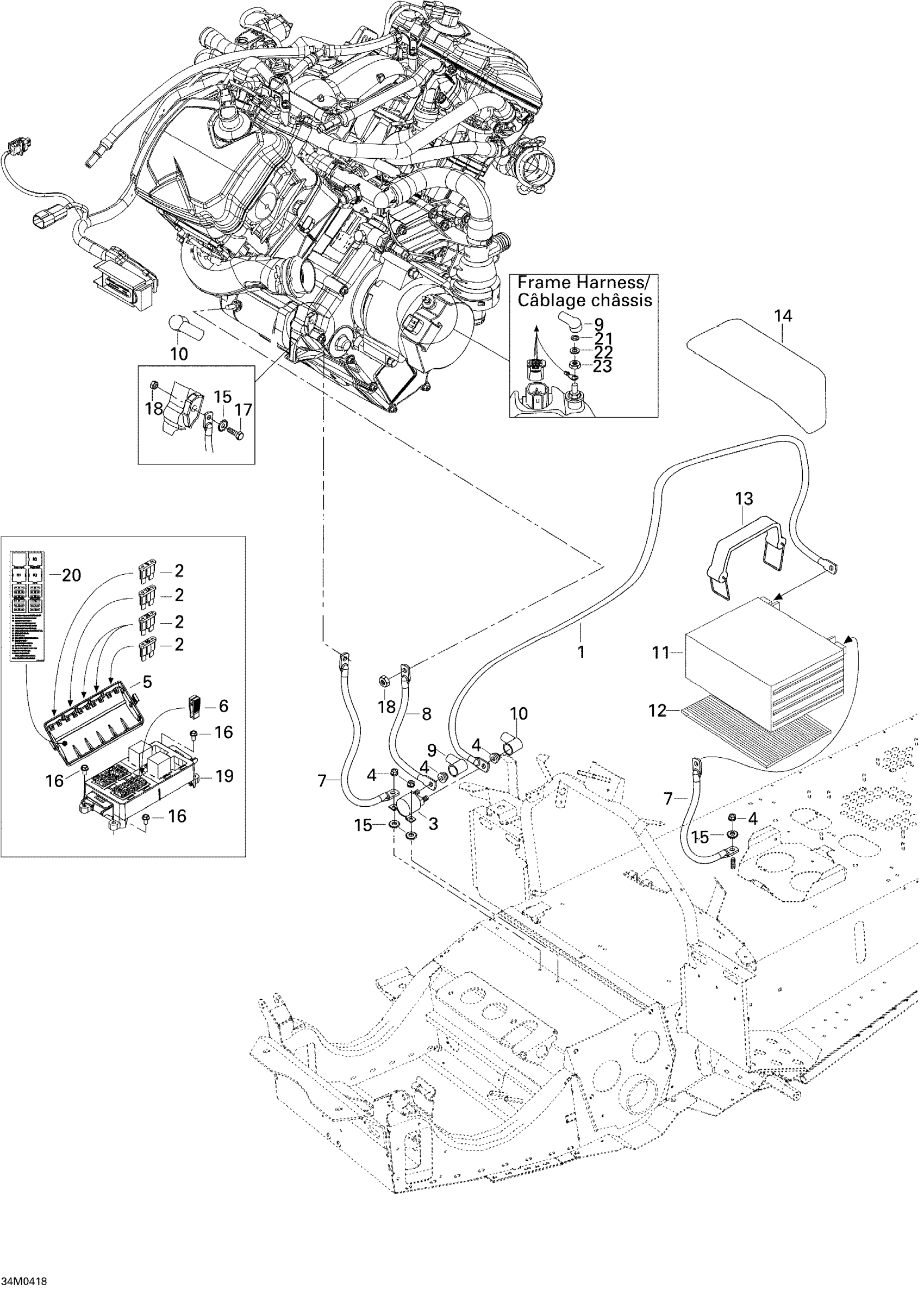

Ski-Doo Expedition 4-TEC, 2004 Battery Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fuse, 5 Amperes | CE

278000344

$3.22

2

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

2

Fuse, 20 Amperes

409003900

$3.22

2

Fuse, 30 Amperes

410917200

$3.22

2

FUSE, 1 AMPERE - Call your local BRP dealership

409012800

Unavailable

2

Fuse, 0.5 Ampere

415128525

Unavailable

3

Starter Relay

515176011

Unavailable

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

5

COVER - Call your local BRP dealership

515176066

Unavailable

6

FUSE TOOL - Call your local BRP dealership

515175811

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Protection Cap

570151000

$18.43

10

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

11

Battery, 12 Volts, 21 Amperes

410922962

$160.52

12

Rubber Cover

605350148

Unavailable

13

Battery Strap This part replaces 515175955.

605356180

Unavailable

14

Battery Cover

605350792

Unavailable

15

SERRATED LOCK WASHER - Call your local BRP dealership

M20017

Unavailable

16

Hex. Forming Screw M5 X 16

210251650

Unavailable

17

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

18

Elastic Stop Nut M6

232561414

Unavailable

19

FUSE BOX BASE - Call your local BRP dealership

515176065

Unavailable

20

Fuse Decal

605451465

Unavailable

21

Lock Washer M6, Black

234161471

$0.52

22

Flat Washer 6 mm

234061410

Unavailable

23

Hex. Nut M6

232061414

$0.44
