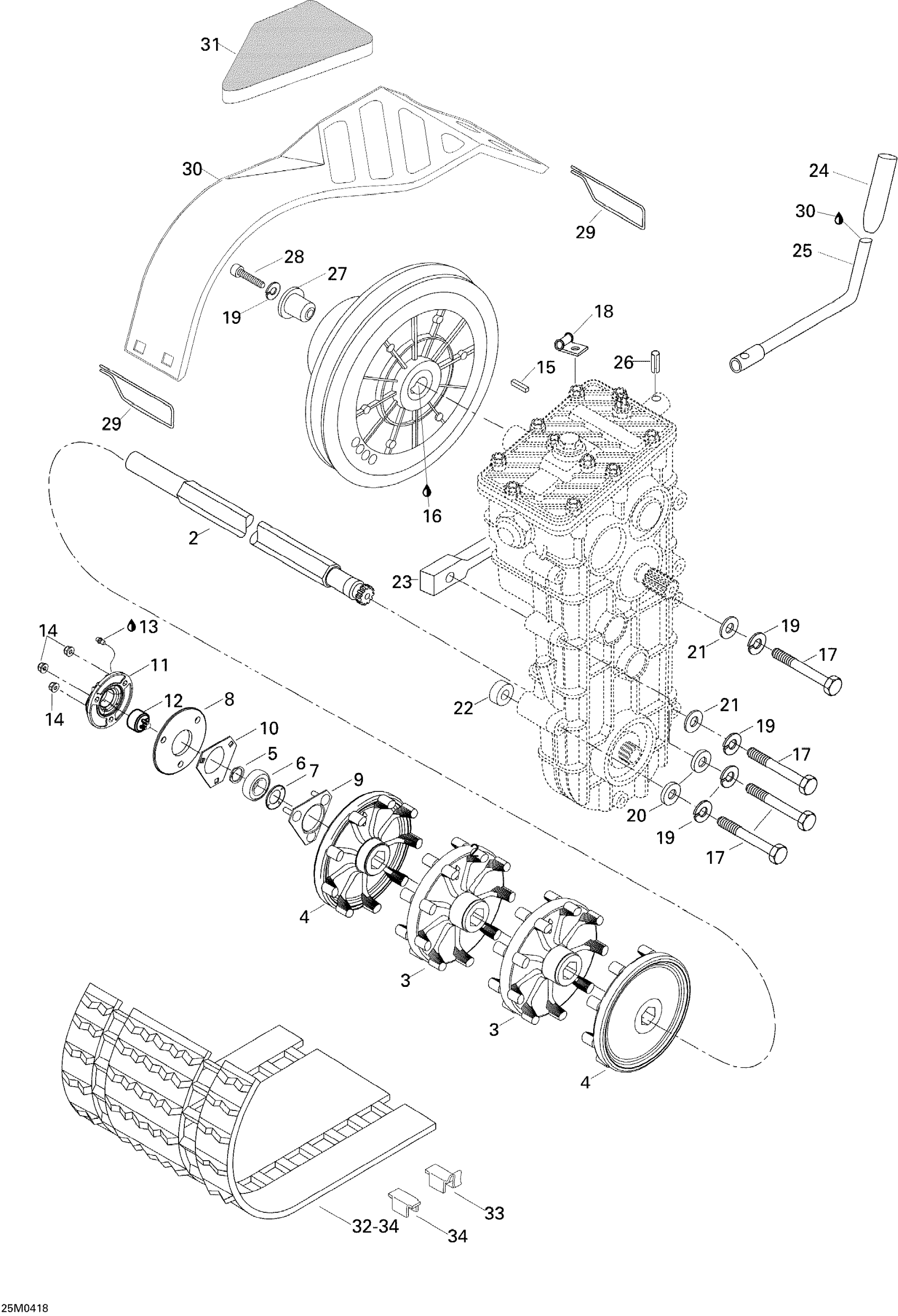

Ski-Doo Expedition 4-TEC, 2004 Drive Axle Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

DRIVE AXLE - Call your local BRP dealership

605249455

Unavailable

3

SPROCKET - Call your local BRP dealership

414931800

$63.82

4

HALF SPROCKET - Call your local BRP dealership

415067400

Unavailable

5

CIRCLIP - Call your local BRP dealership

371910200

Unavailable

6

Ball Bearing

293350060

Unavailable

7

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

8

Washer

M5446641

Unavailable

9

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

10

FLANGE - Call your local BRP dealership

501025000

Unavailable

11

Flange, Speedo

504152173

Unavailable

12

MAGNETIC ADAPTOR - Call your local BRP dealership

504152040

Unavailable

13

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

14

Hex. Flange Elastic Nut M8

233281414

Unavailable

15

KEY - Call your local BRP dealership This part replaces M418763.

619690074

Unavailable

16

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

17

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable

18

WIRE-HOLDER - Call your local BRP dealership

M5443134

Unavailable

19

Lock Washer 8 mm

234181401

Unavailable

20

M8 Washer This part replaces M20077.

20077

Unavailable

21

Flat Washer 8 mm

234081410

Unavailable

22

SPACER - Call your local BRP dealership

605450155

Unavailable

23

CONNECTING BAR - Call your local BRP dealership

605351366

Unavailable

24

Shift button This part replaces M28247.

28247

Unavailable

25

SHIFT HANDLE - Call your local BRP dealership

605350153

Unavailable

26

PIN SPRING - Call your local BRP dealership

M41007

Unavailable

27

Sleeve This part replaces M5443201.

5443201

Unavailable

28

Socket Head Screw M8 X 45

M40286

Unavailable

29

Pin This part replaces M5442726.

5442726

Unavailable

30

BELT GUARD - Call your local BRP dealership

605149860

Unavailable

31

ISOLANT FOAM - Call your local BRP dealership

605250741

Unavailable

32

Track ass'y | Includes 10 to 12 This part replaces M13070.

13070

Unavailable

33

CLEAT-GUIDE - Call your local BRP dealership

M5318323

Unavailable

34

CLEAT - Call your local BRP dealership

M5318322

Unavailable
