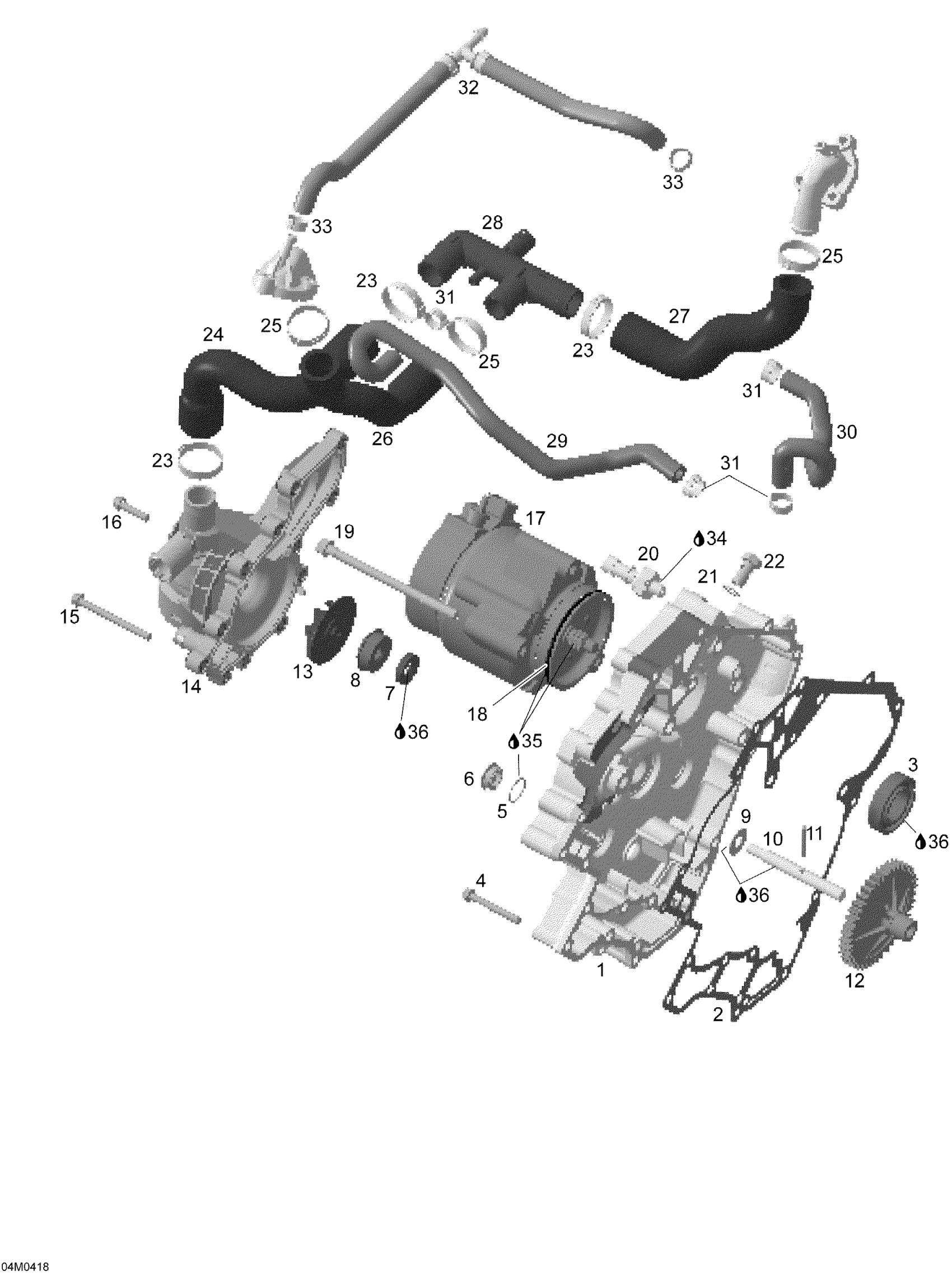

Ski-Doo Expedition 4-TEC, 2004 Magneto Diagram
#
Description
Price
1
Ignition Cover
420811661
Unavailable
2
GASKET - Call your local BRP dealership
420950590
Unavailable
3
Bearing_Ball - Call your local BRP dealership
420932650
Unavailable
5
O-Ring
420250890
Unavailable
6
Drain Plug
420241801
Unavailable
8
Rotary Seal
420650371
Unavailable
9
THRUST WASHER - Call your local BRP dealership
420227685
Unavailable
10
Waterpump Shaft
420837480
Unavailable
12
WATERPUMP GEAR, 41 TEETH - Call your local BRP dealership
420834460
Unavailable
13
Impeller
420222501
Unavailable
14
WATERPUMP HOUSING - Call your local BRP dealership
420811605
Unavailable
15
Hex. Flange Screw M6 X 65
420440602
Unavailable
16
Torx Flange Screw M6 X 25
420440234
Unavailable
17
ALTERNATOR, 40 AMPERES - Call your local BRP dealership
420296460
Unavailable
18
O-RING - Call your local BRP dealership
420850430
Unavailable
19
HEX. SCREW M8 X 119 - Call your local BRP dealership
420941651
Unavailable
20
Oil Pressure Switch
420856537
Unavailable
22
Banjo Bolt M10 X 19
420940874
Unavailable
23
CLAMP - Call your local BRP dealership
420853173
Unavailable
24
MOLDED HOSE - Call your local BRP dealership
420922180
Unavailable
25
Clamp
420853163
Unavailable
26
MOLDED HOSE - Call your local BRP dealership
420922745
Unavailable
27
MOLDED HOSE - Call your local BRP dealership
420922740
Unavailable
28
Elbow Fitting 90° | Without Catalyst
293700023
Unavailable
29
MOLDED HOSE - Call your local BRP dealership
420822090
Unavailable
30
MOLDED HOSE - Call your local BRP dealership
420822092
Unavailable
32
HOSE ASS'Y - Call your local BRP dealership
420660881
Unavailable
35
Grease, Super Lube
293550030
Unavailable
36
Synth Oil 4T 12x1
293600054
Unavailable
