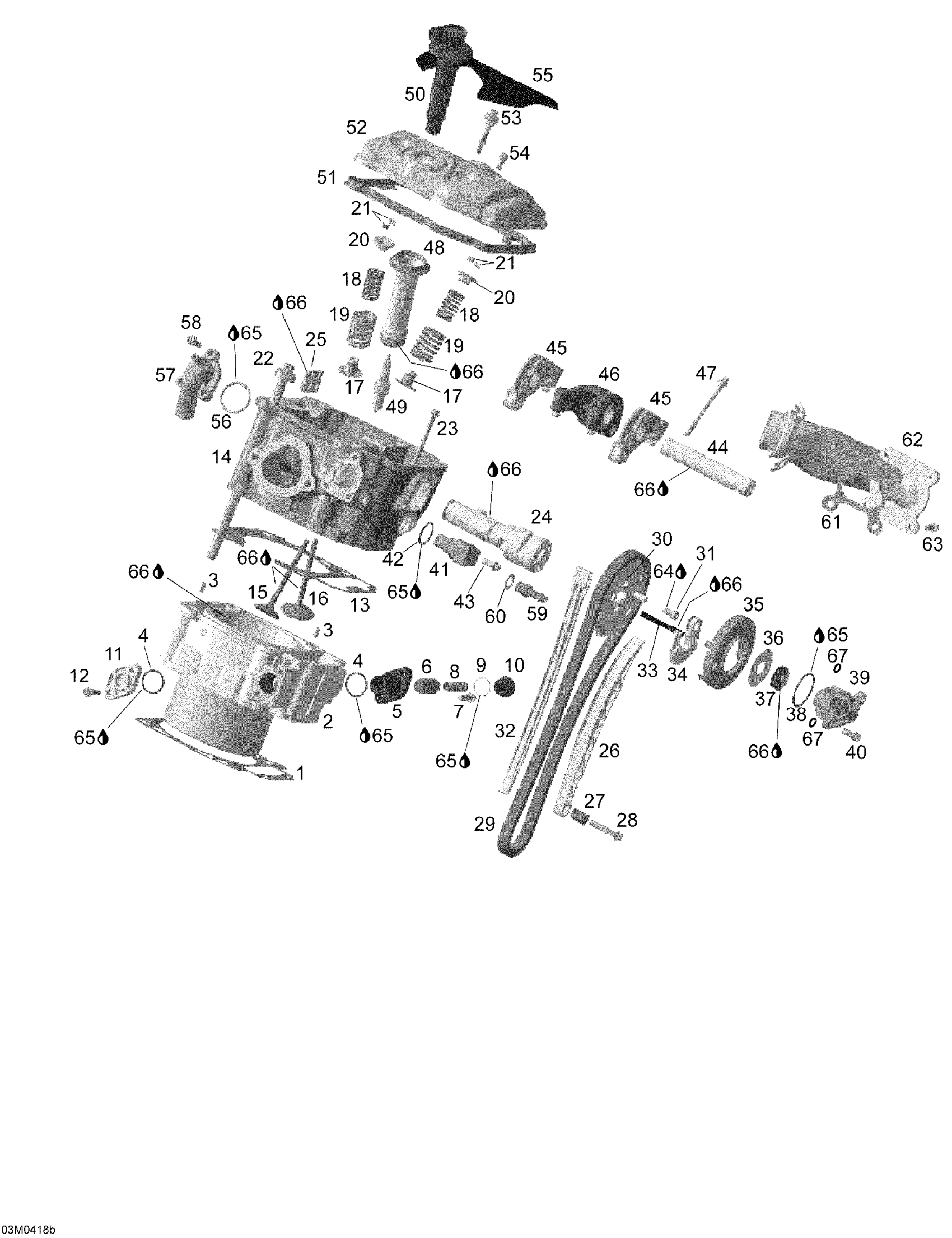

Ski-Doo Expedition 4-TEC, 2004 Cylinder (View B) Diagram

#

Description
Price

1

GASKET - Call your local BRP dealership

420630080

Unavailable

2

CYLINDER ASS?Y - Call your local BRP dealership | Includes 2 to 3

420923948

Unavailable

3

Drive Pin 5 X 10

420929650

Unavailable

4

O-Ring

420430373

Unavailable

5

Chain Tensioner Housing

420236510

Unavailable

6

Chain Tensioner Plunger

420236521

Unavailable

7

Torx Flange Screw M6 X 25

420440234

Unavailable

8

Spring

420238120

Unavailable

9

O-Ring

420250890

Unavailable

10

Plug Screw

420641150

Unavailable

11

CONNECTION COVER - Call your local BRP dealership

420960810

Unavailable

12

Torx Flange Screw M6 X 25

420440234

Unavailable

13

CYLINDER HEAD GASKET - Call your local BRP dealership

420950660

Unavailable

14

CYLINDER HEAD ASS?Y - Call your local BRP dealership

420613475

Unavailable

15

Exhaust Valve 31 mm

420254027

Unavailable

16

Intake Valve 38MM

420253163

Unavailable

17

Valve Steam Seal

420630202

Unavailable

18

Valve Spring Inside

420838280

Unavailable

19

Valve Spring

420238180

Unavailable

20

Valve Spring Retainer

420254283

Unavailable

21

Valve Cotter

420253645

Unavailable

22

TORX SCREW M11 X 215 - Call your local BRP dealership

420641020

Unavailable

23

Torx Flange Screw M6 X 105

420440612

Unavailable

24

Camshaft, Rear

420837456

Unavailable

25

Camshaft Guide

420851694

Unavailable

26

Chain Tension Guide

420236541

Unavailable

27

DISTANCE SLEEVE - Call your local BRP dealership

420247100

Unavailable

28

Torx Flange Screw M6 X 35

420440274

Unavailable

29

Camshaft Chain

420297957

Unavailable

30

Timing Gear, 38 Teeth

420254309

Unavailable

31

Allen Screw M6 X 12

420840032

Unavailable

32

Chain Guide

420236501

Unavailable

33

Deko Shaft

420220790

Unavailable

34

Centrifugal Weight Ass’Y

420231064

Unavailable

35

Cover

420660037

Unavailable

36

Thrust Washer

420627494

$6.11

37

V-Ring 20S FPM Blow By Valve

420630125

$9.37

38

O-Ring

420950870

$4.41

39

CAMSHAFT COVER - Call your local BRP dealership

420610272

Unavailable

40

Torx Flange Screw M6 X 16

420440162

$3.11

41

Camshaft Position Sensor Ass'y

420664046

$70.82

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Torx Flange Screw M6 X 16

420440162

$3.11

44

ROCKER ARM SHAFT ASS'Y - Call your local BRP dealership

420854599

Unavailable

45

Rocker Arm, Exhaust

420254329

Unavailable

46

Rocker Arm, Inner

420254316

Unavailable

47

Torx Screw M8 X 72

420641080

Unavailable

48

Spark Plug Pipe

420851754

Unavailable

49

Spark Plug, NGK DCP-R8E

715900637

Unavailable

50

Ignition Coil Kit This part replaces 420664020.

296000307

Unavailable

51

Sealing Ring

420630071

Unavailable

52

Valve Cover

420610185

Unavailable

53

Hex Screw M6 X 30

420440568

Unavailable

54

TORX SCREW M6 X 8 - Call your local BRP dealership

420641488

Unavailable

55

Valve Cover

420660201

Unavailable

56

O-Ring

420950890

Unavailable

57

Connecting Cover

420811700

Unavailable

58

Torx Flange Screw M6 X 25

420440234

Unavailable

59

Hose Nipple

420440960

Unavailable

60

Copper Washer

420250640

$0.81

61

GASKET - Call your local BRP dealership

420950680

Unavailable

62

Exhaust Manifold Ass'y

420973781

Unavailable

63

Torx Flange Screw M6 X 16

420440162

$3.11

64

Loctite 243, 10 ml

293800060

$20.77

65

Grease, Super Lube

293550030

Unavailable

66

Synth Oil 4T 12x1

293600054

Unavailable

67

Seal Washer

420230415

$1.77
