Description

Price

10>10c

Indicator

515177912

$516.89

10a

Speedometer Button | XTP

415129355

$13.94

10b

Gauge Ring

415129370

$10.66

10c

Lens | XTP

415129349

$23.05

20

BRP Logo 20MM x 2MM | XTP

516006224

$10.05

600

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

610

Safety Nut (DESS Switch)

278002963

$2.72

750

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$64.58

750

Green - RF Key Ass'y | Includes 625 to 625d

515178287

$64.58

800

Visor Harness

515177837

$32.28

810

Cap

572103300

$9.65

960

Connector Plate

515177134

$14.02

1400

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

1410

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

2400

LH Housing

515178198

$266.89

2410

Housing Plate

515177147

$17.66

2420

Torx Screw

250000671

$0.83

2480

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

$10.60

3000

Main Harness | EXPEDITION

515177988

$422.28

3001

Trim 1000Mm Long

219704354

$14.74

3027

Adhesive Patch

518325560

$4.34

3110

Switch Ass'y

515177460

$47.99

3115

Hex Screw M3 X 20

207132044

$2.06

3118

Flat Washer M3, Stainless

234032600

$0.54

3119

Elastic Stop Nut M3

232531423

$0.54

3120

Hex. Flange Screw M6 X 20

210262040

$2.06

3122

Hex. Flange Forming Screw M6 X 25

210262550

$1.64

3125

Flat Washer

250200039

$0.72

3201

Pan Screw Forming, 7500C

250000690

$2.06

3210

Male Terminal Housing, 6 Circuits

515175662

$8.57

3220

Male Terminal Housing, 4 Circuits

515175846

$8.57

3250

Switch

515177394

$75.35

3300

Fan Harness

515177646

$51.51

3600

Ground Wire

515177014

$15.35

4200

Battery Wire

515177427

$29.20

4210

Elastic Stop Nut M6

232561414

$1.55

4220

Flat Washer 6 mm

234061410

$1.04

4240

Elastic Stop Nut M6

232561414

$1.55

4300

Battery Support

515177348

$29.97

4310

Hex. Flange Screw M6 X 16

207661644

$0.61

4312

Lock Washer Serrated M6

250200041

$0.92

4320>4320a

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$134.52

4320a

Battery Bolt Kit

250000282

$2.95

4350

Starter Relay

278003012

$35.07

4360

Screw M4 X 16

250000725

$2.87

4370

Hex. Flange Screw M6 X 25

250000793

$1.74

4371

Flat Washer

224061121

$0.44

4700

Ground Wire

515176358

$26.12

4720

Lock Washer Serrated M6

250200041

$0.92

4721

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

4820

Elastic Stop Nut M6

232561414

$1.55

4830

Protector Cap

710000495

$10.14

6000

Extension

515175851

$10.88

9000

Tie Wrap 142 mm

293750002

$0.88

9000

Tie-Rap 180 mm

414115200

$0.09

9000

Tie Wrap 368 mm

293750008

$0.85

9000

Tie Wrap 94 mm | 4X4

293750001

$0.83

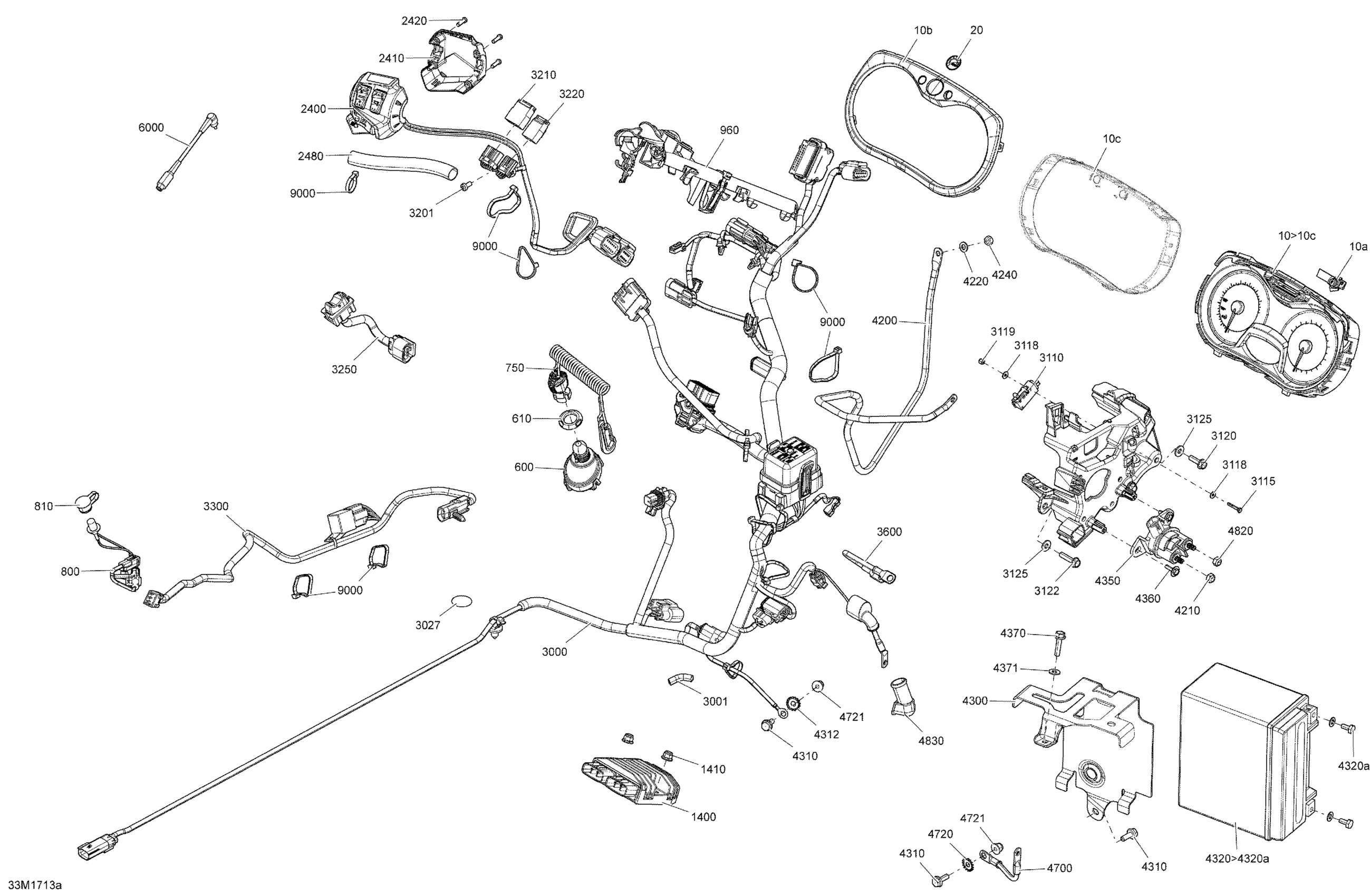

Ski-Doo EXPEDITION - 4-STROKE - SPORT, 2017 Electrical System - 900 ACE Diagram
