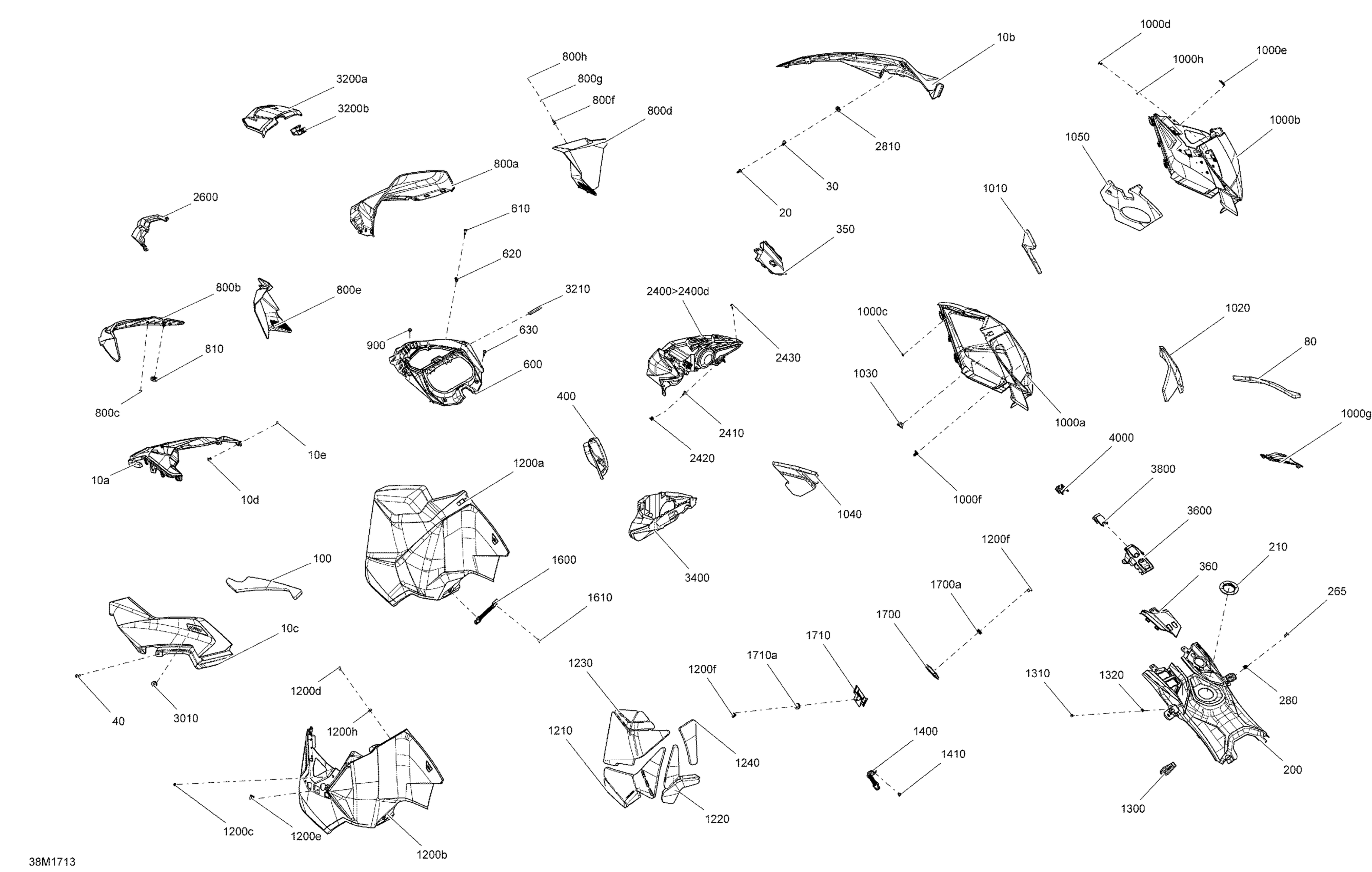

Ski-Doo EXPEDITION - 4-STROKE - SPORT, 2017 Hood - All Models Diagram

#

Description
Price

10a

Deep Black Center Hood

517305011

$198.43

10b

Bright White, RH Hood

517305284

$198.43

10c

Bright White, LH Hood

517305285

$203.82

10d

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

10e

Washer

517124300

$0.16

20

Torx Screw M5 X 20

250000528

$1.74

30

Panel Nut M5 X 0.8

250000958

$3.48

40

Torx Screw M5 X 26

250000587

$3.61

80

RH Rear Hood Foam

517305090

$12.69

100

LH Rear Hood Foam

517305091

$12.69

200

White, Rear Console

517305557

$218.43

210

Console Nut

517304518

$13.78

265

Torx Truss Screw M6 X 20

250000705

$1.74

280

Panel Nut M6 X 1.0

250100198

$1.73

350

Deep Black, RH Front Console

517305549

$18.43

360

LH Front Console

517306022

$29.97

400

Deep Black RH Console

517305061

$27.66

600

Deep Black, Indicator Support

517305511

$56.12

610

Torx Screw M5 X 20

250000528

$1.74

620

Panel Nut M5 X 0.8

250000958

$3.48

630

Torx Screw M5 X 26

250000587

$3.61

800a

Windshield 450mm

860200928

$163.05

800b

Windshield Support Long, Yellow 2000

860200944

$39.99

800c

Push Nut

732610072

$1.72

800d

RH Air Deflector, Black 63% Transm.

517304928

$33.82

800e

LH Air Deflector, Black 63% Transm.

517304929

$41.51

800f

Torx Screw K50 X 16

250000720

$1.39

800g

Washer M5

250200025

$0.61

800h

Rubber Washer 5 mm

250200024

$1.77

810

Grommet

517303756

$3.15

900

Rubber Bumper

293830005

$5.33

1000a

White, RH Panel

517305400

$198.43

1000b

Black, RH Panel Trim

517305058

$229.20

1000c

Push Nut

250100158

$1.74

1000d

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

1000e

Rivet Plate

517305109

$4.66

1000f

Pin

517305734

$3.40

1000g

Deep Black, RH Panel Vent Grid

517304935

$29.20

1000h

Washer

517124300

$0.16

1010

RH Foam Central

517305197

$12.69

1020

RH Foam Rear

517305199

$18.43

1030

Heat Shield | Europe

517305451

$2.18

1040

RH Foam Upper

517305196

$29.20

1050

RH Foam Lower

517305198

$26.89

1200a

White, LH Panel

517305407

$203.05

1200b

Black, LH Flashing Panel

517304805

$175.35

1200c

Push Nut

250100158

$1.74

1200d

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

1200e

Rivet Plate

517305109

$4.66

1200f

Pin

517305734

$3.40

1200h

Washer

517124300

$0.16

1210

LH Center Panel Foam

517305201

$11.45

1220

LH Lower Panel Foam

517305202

$18.43

1230

LH Upper Panel Foam

517305200

$18.43

1240

LH Rear Panel Foam

517305203

$18.43

1300

Panel Latch

517305279

$14.85

1310

Hexalob Screw M4 X 10

250000565

$1.74

1320

Weld Nut M4

250100156

$4.25

1400

RH Panel Latch

517304919

$14.22

1410

Pop Rivet 3/16”

293150108

$1.23

1600

LH Panel Latch

517303808

$9.91

1610

Pop Rivet 3/16”

293150108

$1.23

1700

RH Panel Clip Ass'y, Black | Includes 1700 to 1700a

517305724

$12.69

1700a

Ring

517305723

$3.31

1710

LH Panel Clip Ass'y, Black | Includes 1710 to 1710a

517305722

$12.69

1710a

Ring

517305723

$3.31

2400>2400d

Headlamp

517306180

$233.05

2400a

Cap

219400070

$16.89

2400b

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

2400c

Holder Bracket

219800282

$5.49

2400d

Spring

219800281

$3.23

2410

Torx Screw M5 X 20

250000528

$1.74

2420

Jack Nut M5

250100035

$6.03

2430

Screw M4 X 16

250000725

$2.87

2600

Headlight Trim Cap

517305010

$35.35

2810

Grommet

517302841

$2.22

3010

Grommet

517302841

$2.22

3200a

Deep Black, Upper Storage Access Cover

517304912

$15.35

3200b

Cover Latch

517304917

$10.23

3210

Seal Joint

517305157

$2.28

3400

Deep Black, Trunk

517305095

$18.43

3600

Deep Black, Console Support

517304970

$11.45

3800

Deep Black, Support Console Cap

517305180

Unavailable

4000

Deep Black, Support Console Cap

517305148

$4.66
