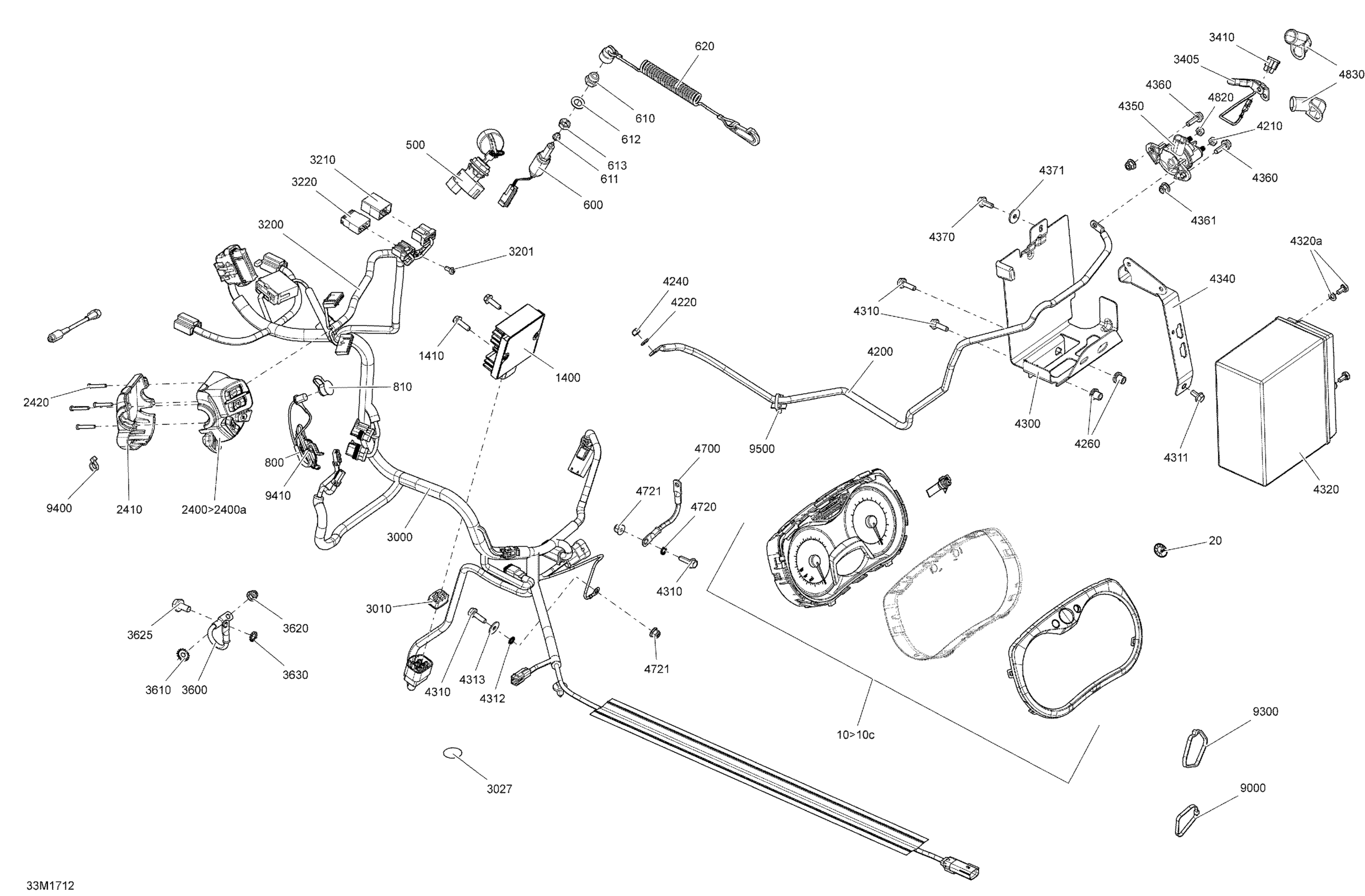

Ski-Doo EXPEDITION - 2-STROKE - SPORT, 2017 Electrical System - All Models Diagram

#

Description
Price

10>10c

Indicator | Includes 10 to 10c

515177279

Unavailable

10a

Lens | XTP

415129349

Unavailable

10b

Speedometer Button | XTP

415129355

Unavailable

10c

Gauge Ring

415129348

Unavailable

20

BRP Logo 20MM x 2MM | XTP

516006224

Unavailable

500

Ignition Swirch

515177063

Unavailable

600

Brake Switch

515175653

$15.57

610

Switch Nut

515145900

$10.83

611

Plunger Cap

570151100

$10.14

612

Flat Washer

250200084

$2.76

613

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

620

Cap Ass'y

515178283

$37.66

800

Visor Harness

515177837

$32.28

810

Cap

572103300

$9.65

1400

Voltage Regulator

515176699

Unavailable

1410

Hex. Flange Screw M6 X 20

210262040

Unavailable

2400>2400a

LH Housing

515177021

Unavailable

2400a

Start/RER Button

515176088

$18.43

2410

Switch Housing Plate

515175926

Unavailable

2420

Torx Screw #8-18

250000263

$1.02

3000

Main Harness

515177979

Unavailable

3010

Lock

515176681

Unavailable

3027

Adhesive Patch

518325560

Unavailable

3200

Steering Wiring Harness

515177609

Unavailable

3201

Pan Screw Forming, 7500C

250000690

Unavailable

3210

Male Terminal Housing, 8 Circuits

515175817

Unavailable

3220

Male Terminal Housing, 6 Circuits

515175662

Unavailable

3405

Fuse Battery Wire

515177576

Unavailable

3410

Fuse, 30 Amperes

410917200

$3.22

3600

Ground Wire

515176745

Unavailable

3610

Lock Washer Serrated M6

250200041

Unavailable

3620

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

3625

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

Unavailable

3630

Serrated Lock Washer 8 mm

234481608

Unavailable

4200

Battery/Starter Wire

515177730

Unavailable

4210

Elastic Stop Nut M6

232561414

Unavailable

4220

Flat Washer 6 mm

234061410

Unavailable

4240

Elastic Stop Nut M6

232561414

Unavailable

4260

Insert

293450275

Unavailable

4300

Battery Support

515177264

Unavailable

4310

Hex. Flange Screw M6 X 20

207662044

Unavailable

4310

Hex. Flange Screw M6 X 20

207662044

Unavailable

4311

Hex. Flange Screw M6 X 12

207661244

Unavailable

4312

External Serrated Lock Washer 6 mm

234461608

Unavailable

4313

Flat Washer

250200082

Unavailable

4320>4320a

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

4320a

Battery Bolt Kit

250000282

$2.95

4340

Battery Strip

515177266

Unavailable

4350

Starter Relay

278003012

Unavailable

4360

Hex. Flange Screw M6 X 20

207662044

Unavailable

4361

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

4370

Hex. Flange Screw M6 X 16

207661644

Unavailable

4371

Flat Washer

224061201

Unavailable

4700

Ground Wire

515176358

Unavailable

4720

Lock Washer Serrated M6

250200041

Unavailable

4721

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

4820

Elastic Stop Nut M6

232561414

Unavailable

4830

Protector Cap

710000495

Unavailable

6000

Extension

515175851

Unavailable

9000

Tie-Rap 180 mm

414115200

$0.09

9300

Tie Wrap 368 mm

293750008

$0.85

9400

Tie Wrap 142 mm

293750002

Unavailable

9410

Tie Wrap 94 mm | 4X4

293750001

$0.83

9500

Tie-Rap 173 mm

293750009

Unavailable
