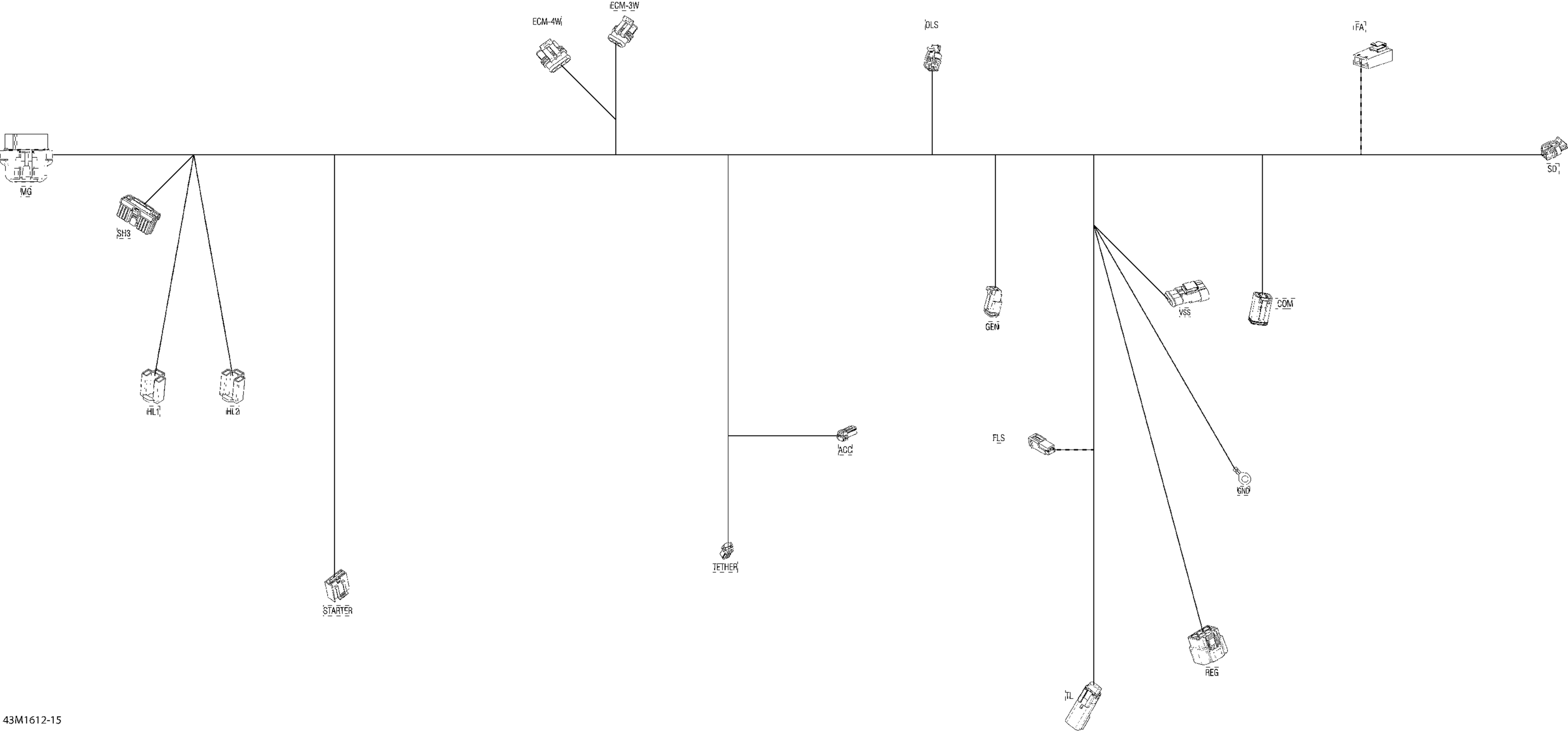

Ski-Doo EXPEDITION - 2-STROKE - SPORT, 2017 Electrical Harness Diagram

#

Description
Price

1

Main Harness

515177979

Unavailable

ACC

Female Housing, 2 Circuits

515175658

Unavailable

ACC

Female Terminal

515175231

Unavailable

COM

Housing, 6 Circuits

278002896

Unavailable

COM

Male Wedge, 6 Circuits

515175678

Unavailable

COM

Sealing Cap

293000052

Unavailable

COM

Female Terminal

278000632

Unavailable

COM

Female Terminal

278001665

Unavailable

ECM-3W

Female Housing, 3 Circuits

409209600

Unavailable

ECM-3W

Wire Seal

278001013

Unavailable

ECM-3W

Female Terminal

278001014

Unavailable

ECM-4W

Female Housing, 4 Circuits

409209700

Unavailable

ECM-4W

Wire Seal

515176621

Unavailable

ECM-4W

Female Terminal

710001340

Unavailable

FA

Clip

710000992

$4.00

FA

Fuse Holder

409004000

Unavailable

FA

Female Terminal

409004200

Unavailable

FLS

Male Terminal Housing, 2 Circuits

515175654

$7.48

FLS

Male Terminal

515175232

$1.49

GEN

Female Terminal Housing, 2 Circuits

515175670

Unavailable

GEN

Female Lock, 2 Circuits

515175675

Unavailable

GEN

Female Terminal

278000632

Unavailable

GND

Open Barrel

278000992

$1.79

HL1

Female Housing

515177663

Unavailable

HL1

Terminal

515176909

Unavailable

HL2

Female Housing

515177663

Unavailable

HL2

Terminal

515176909

Unavailable

MG

Female Housing, 24 Circuits

515175801

Unavailable

MG

Retainer Block

515175802

Unavailable

MG

Plug

515175812

Unavailable

MG

Female Housing

710000399

Unavailable

MG

Wire Seal

515175803

Unavailable

MG

Female Terminal

710001131

Unavailable

OLS

Female Housing, 2 Circuits

515177192

Unavailable

OLS

Wire Seal

710001163

Unavailable

OLS

Female Terminal

710001164

Unavailable

REG

Connector

515176530

Unavailable

REG

Seal

515176594

Unavailable

REG

Terminal

515176531

Unavailable

SD

Female Housing, 2 Circuits

515177192

Unavailable

SD

Seal Wire

710001332

Unavailable

SD

Terminal

710000925

Unavailable

SH3

Female Terminal Housing, 13 Circuits

515175350

Unavailable

SH3

Female Terminal

515175231

Unavailable

SH3

Female Terminal

515175282

$6.43

STARTER

Female Terminal Housing, 4 Circuits

710000272

$10.14

STARTER

Lock, 4 Circuits

710000273

$8.98

STARTER

Female Terminal

710000274

$8.98

TETHER

Female Terminal Housing, 2 Circuits

515176296

Unavailable

TETHER

Female Terminal

515175231

Unavailable

TL

Housing

515178023

Unavailable

TL

Male Terminal

515178013

Unavailable

VSS

Clip

710000992

$4.00

VSS

Housing

710000568

Unavailable

VSS

Wire Seal

515176621

Unavailable

VSS

Male Terminal

515176164

Unavailable
