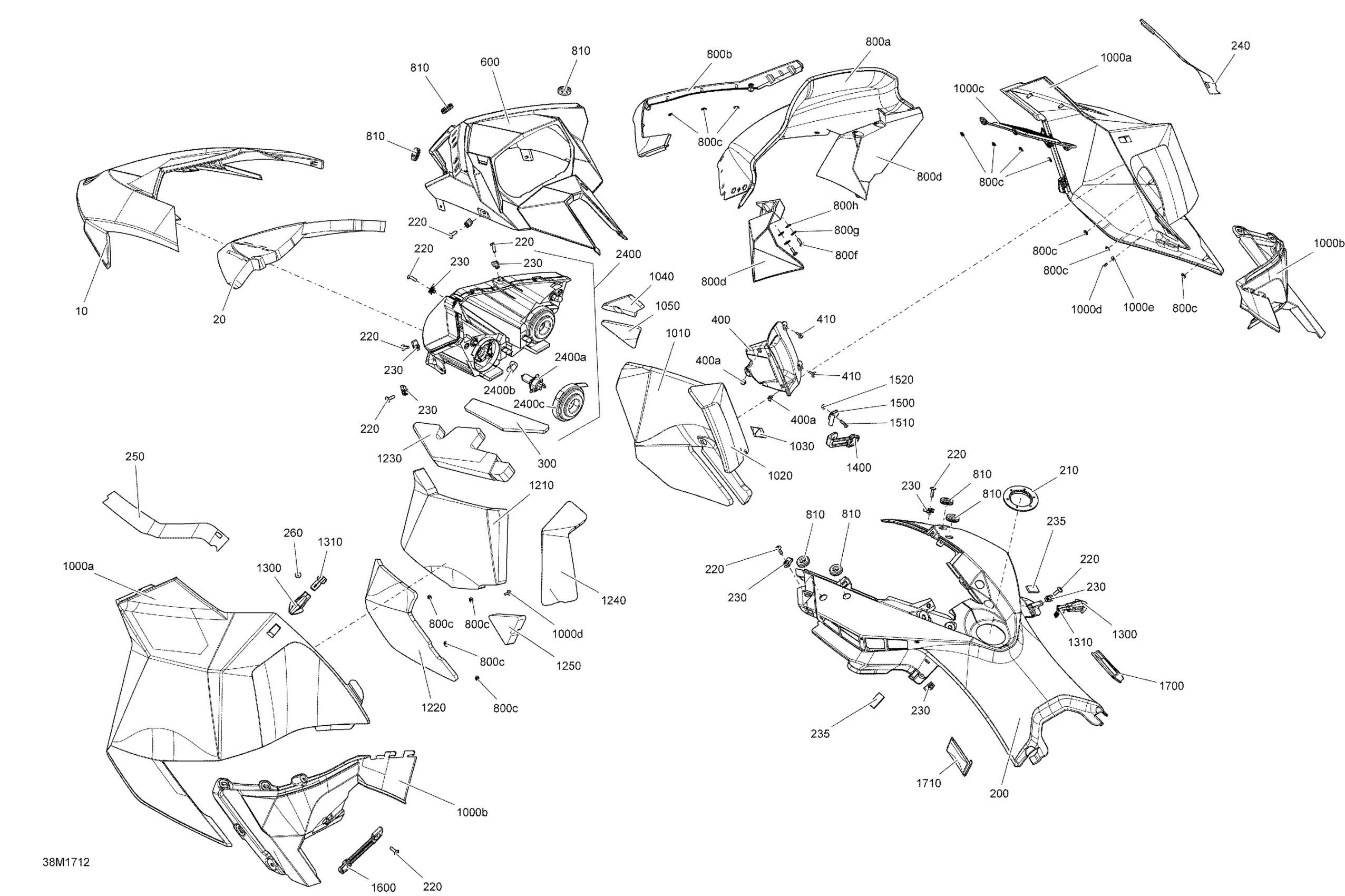

Ski-Doo EXPEDITION - 2-STROKE - SPORT, 2017 Hood Diagram
#
10
White Hood
517304492
Unavailable
20
Hood Foam
517304913
Unavailable
210
Console Nut
517304518
Unavailable
220
Torx Truss Screw M6 X 20
250000705
Unavailable
230
Panel Nut M6 X 1.0
250100198
Unavailable
260
Torx Truss Screw M6 X 16
250000721
Unavailable
300
Foam
517304882
Unavailable
410
Screw M4 X 16
250000725
Unavailable
600
Gauge Support
517304578
Unavailable
810
Grommet
517303756
Unavailable
1010
RH Center Foam
517304883
Unavailable
1020
RH Panel Rear Foam
517304884
Unavailable
1030
Heat Shield | Europe
517305451
Unavailable
1040
Foam
517304885
Unavailable
1050
Foam
517304886
Unavailable
1210
LH Panel Center Foam
517304887
Unavailable
1220
LH Panel Lower Foam
517304888
Unavailable
1230
LH Panel Upper Foam
517304889
Unavailable
1240
LH Panel Rear Foam
517304890
Unavailable
1250
Foam
517304891
Unavailable
1300
End Piece Latch
517304075
Unavailable
1310
Panel Latch
517303981
Unavailable
1400
RH Panel Latch
517303612
Unavailable
1500
Latch Support
517304221
Unavailable
1510
Torx Screw M5 X 20
250000792
Unavailable
1600
LH Panel Latch
517303808
Unavailable
1700
RH Panel Clip
513033471
Unavailable
1710
LH Panel Clip
513033472
Unavailable
1000a
Deep Black, RH Panel
517304029
Unavailable
1000a
Deep Black, LH Panel
517304030
Unavailable
1000b
Deep Black RH Moulding Panel
517303671
Unavailable
1000b
Deep Black, LH Moulding Panel
517303673
Unavailable
1000c
Grille
517303622
Unavailable
1000d
Hex. Flange Screw K40 X 16
241141660
Unavailable
1000e
Flat Washer 4 mm, Stainless
234042600
Unavailable
2400>2400c
RH Headlamp Ass'y | Includes 2400 to 2400c
517304194
Unavailable
2400>2400c
LH Headlamp Ass'y | Includes 2600 to 2600c
517304195
Unavailable
2400a
Halogen Bulb, 60/55 W, 12 V ( H4 )
515176274
Unavailable
2400b
Cap
515176498
Unavailable
2400c
Rubber Cap Protector
219800280
Unavailable
400>400b
Black, RH Console | Includes 400 to 400b
517304322
Unavailable
400a
Black, Cap
275500241
Unavailable
800c
Push Nut
732610072
Unavailable
800c
Push Nut
732610072
Unavailable
800g
Washer M5
250200025
Unavailable
800g
Washer M5
250200025
Unavailable
