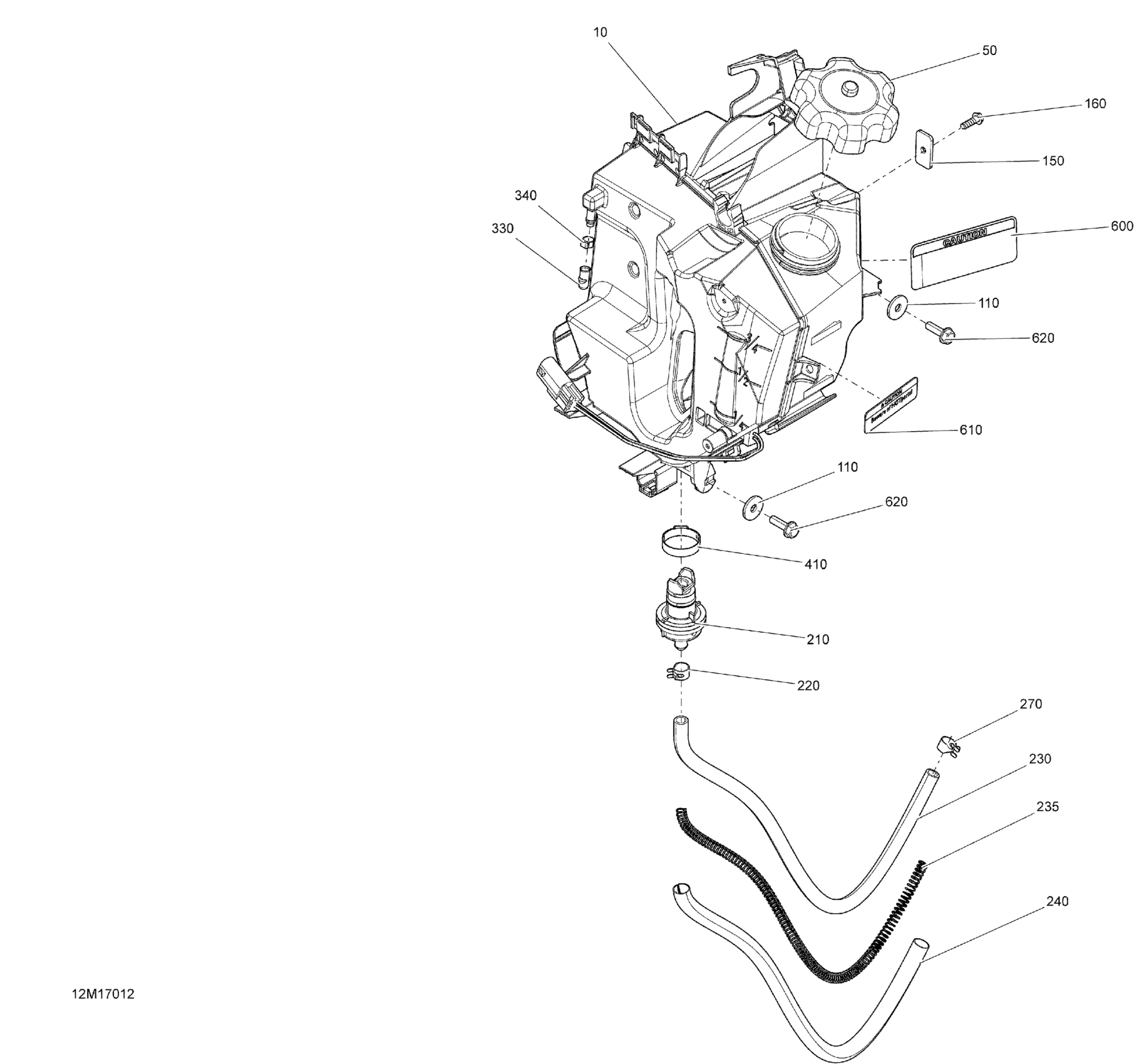

Ski-Doo EXPEDITION - 2-STROKE - SPORT, 2017 Oil System - All Models Diagram

Description

Price

Oil Tank

519000312

$91.51

Cap

519000273

$25.35

110

Flat Washer

224061201

Unavailable

150

Bracket

519000179

$8.57

160

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

210

Oil Filter

519000242

$13.83

220

Spring Clamp

414415200

$0.83

230

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

235

Spring

519000196

$8.68

240

Tubing 10 MM 1000MM Long

219704407

Unavailable

270

Spring Clamp

414420700

Unavailable

330

Cap

519000216

$6.86

340

Oetiker Gear Clamp

293650043

$2.70

410

Crimp Clamp

293650099

Unavailable

550

Tie-Rap 180 mm

414115200

$0.09

600

Warning Decal / Oil Notice

516007443

$9.97

610

Caution Decal Hot Parts

516005280

Unavailable
