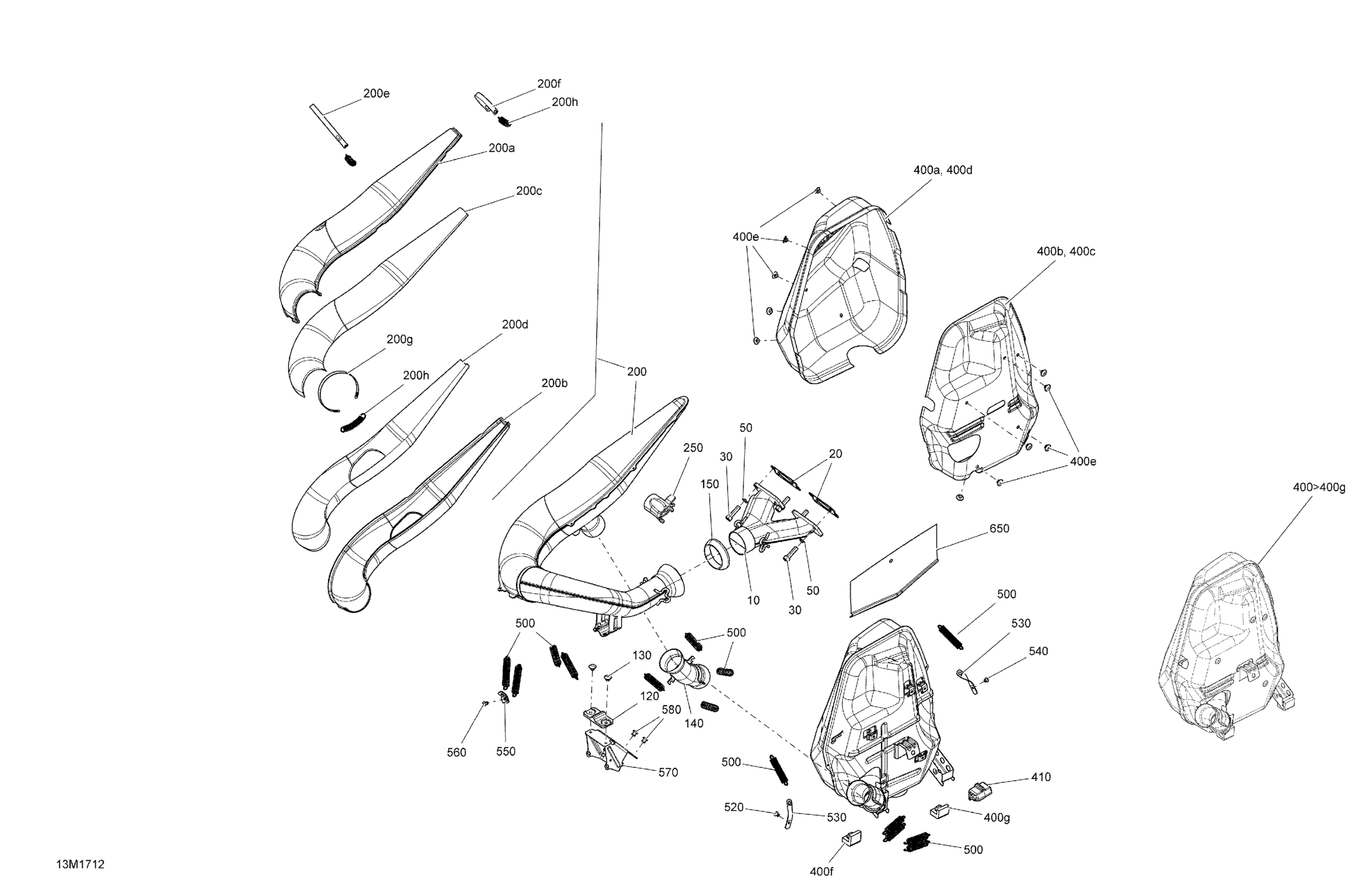

Ski-Doo EXPEDITION - 2-STROKE - SPORT, 2017 Exhaust System - All Models Diagram

#

Description
Price

10

Exhaust Manifold

420673065

Unavailable

20

Gasket 1.0 mm

420831849

Unavailable

30

Socket Head Screw M8 X 30

205083044

Unavailable

50

Washer

514053837

$4.28

120

Bumper

514054617

$14.65

130

Pop Rivet 3/16"

293150103

Unavailable

140

Exhaust Elbow

514054411

$77.66

150

Exhaust Gasket

514053644

$25.35

200>200h

TUNED PIPE ASS'Y - Call your local BRP dealership | Includes 200 to 200h

514054414

Unavailable

200a

Rear Upper Half-enveloppe

514054208

$50.74

200b

Rear Lower Half Envellope

514054210

$54.58

200c

Upper Insulating Wool

514054244

$12.65

200d

Lower Insulating Wool

514054243

$12.65

200e

Retaining Strap

514053502

$8.35

200f

Retaining Strap

514053492

$10.55

200g

Retaining Strap

514053498

$8.35

200h

Spring

514053643

$6.20

250

Bumper

514054513

$19.20

400>400g

Exhaust Muffler Ass'y | Includes 400 to 400g

514054978

$738.43

400a

RH Deflector

514054984

$54.58

400b

LH Deflector

514054979

$54.58

400c

LH Insulated Wool

514054421

$18.43

400d

RH Insulating Wool

514054711

$18.43

400e

Pop Rivet 3/16”

390910000

$0.48

400f

Lower Stopper

514054274

$19.20

400g

Lower Stopper

514054496

$26.12

410

Upper Stopper

514054606

$14.92

500

Spring

415107100

$6.20

520

Stavex Rivet

293150144

Unavailable

530

Spring Bracket, 5mm hole

514054974

Unavailable

540

Avex Rivet

390909200

Unavailable

550

Spring Bracket

514053436

$8.35

560

Avex Rivet

390909100

$0.29

570

Exhaust Muffler Support

514054767

$18.43

580

Hemlock Rivet, 6.5 mm

293150096

$3.17

650

Reflective Sheet

514054745

Unavailable
