1993 Yamaha Exciter Ii (EX570T) Control Cable Diagram

← All diagrams

Find the part on the Control Cable diagram for your 1993 Yamaha Exciter Ii (EX570T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

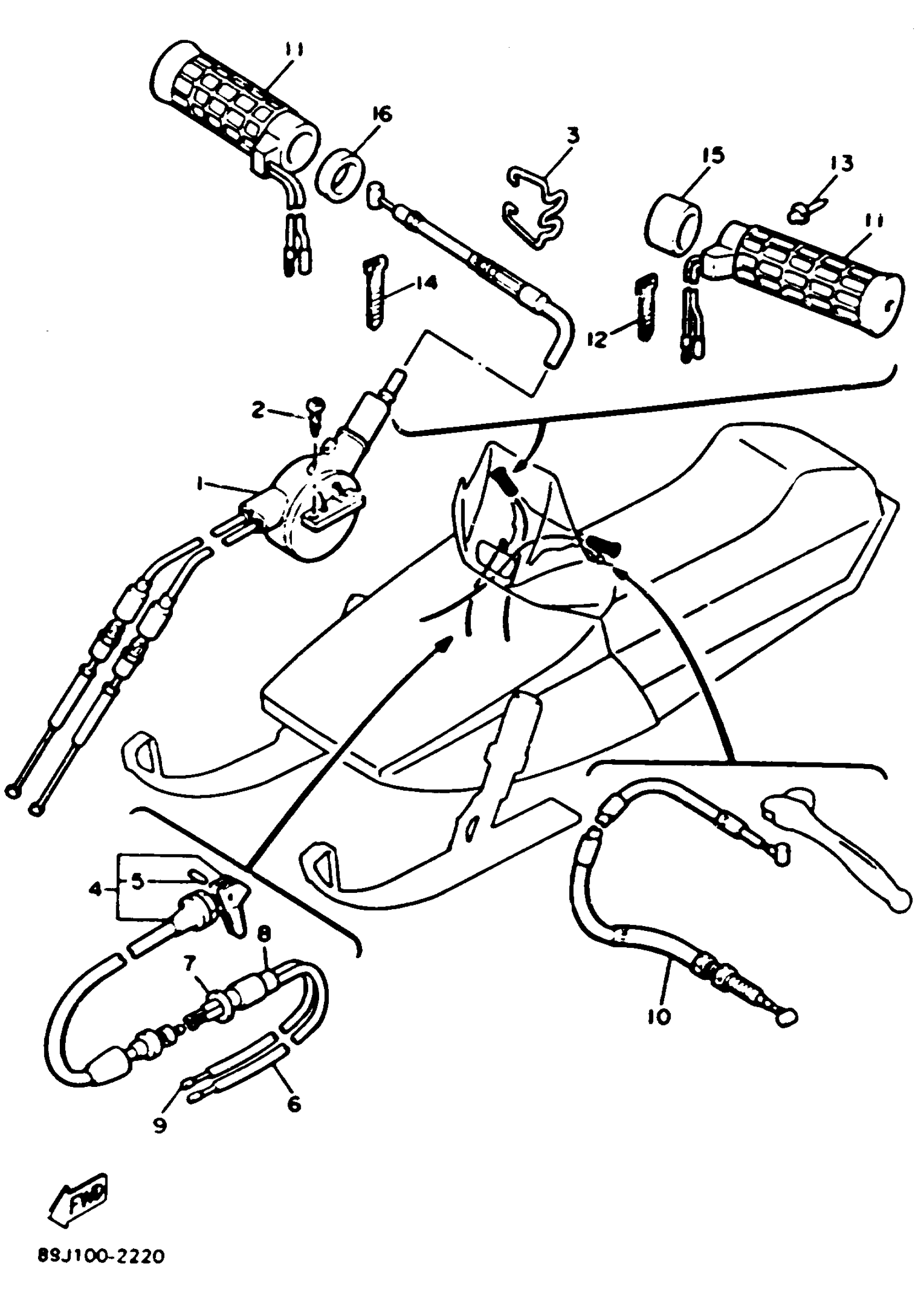

1993 Yamaha Exciter Ii (EX570T) Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, THROTTLE 1

89J-26311-00-00

1
Out of stock

2

SCREW, TAPPING(4TV)

90167-05078-00

1

$5.12

In stock

3

CLIP, CABLE

8M6-26391-01-00

1
Out of stock

4

CABLE, STARTER 1

82M-26331-01-00

1
Out of stock

5

PIN, SPRING (663)

91690-30010-00

1

$5.46

In stock

6

CABLE, STARTER 2

84M-26334-00-00

1
Out of stock

7

CONNECTER, CABLE

4U1-26261-00-00

1

$33.76

In stock

8

CAP

5L6-26272-00-00

1

$7.51

In stock

9

WIRE, STARTER 3

84M-2633A-00-00

1
Out of stock

10

CABLE, BRAKE

82M-26340-00-00

1
Out of stock

11

88T GRIP BLACK 1 PC

88T-26240-85-BK

1
Out of stock

12

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

13

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

14

BAND, SWITCH CORD

25G-83936-01-00

1

$4.12

In stock

15

COLLAR

90387-22726-00

1
Out of stock

16

COLLAR

90387-224F9-00

1
Out of stock
