1990 Yamaha Exciter (EX570P) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1990 Yamaha Exciter (EX570P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

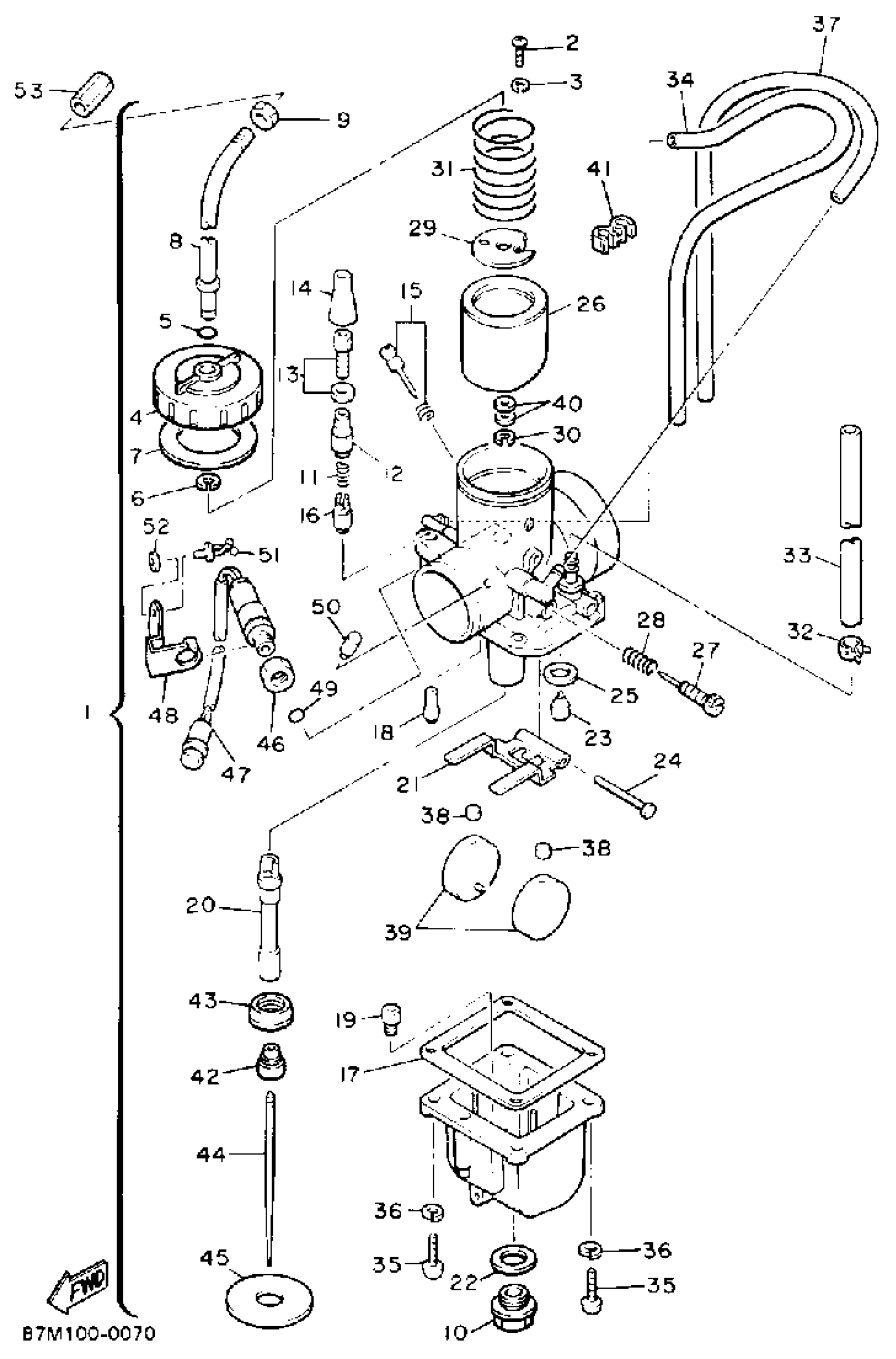

1990 Yamaha Exciter (EX570P) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASY 1

87M-14101-00-00

1
Out of stock

1

CARBURETOR ASSEMBLY 2

87M-14102-00-00

1
Out of stock

2

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

3

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

4

. CAP, MIXING CHAMBER

87M-14168-00-00

1
Out of stock

5

O-RING

8F2-14147-00-00

1
Out of stock

6

CLIP

363-14137-00-00

1

$9.95

In stock

7

. GASKET

363-14126-00-00

1
Out of stock

8

. GUIDE, CABLE

8X6-14155-00-00

1
Out of stock

9

NUT, WIRE ADJUSTING

127-14161-00-00

1

$7.20

In stock

10

. PLUG, SCREW

363-14115-00-00

1
Out of stock

11

SPRING, PLUNGER

127-14135-00-00

1

$6.40

In stock

12

CAP, PLUNGER

8U9-14174-00-00

1

$19.66

In stock

13

CABLE ADJUST SCREW SET

12G-14106-00-00

1

$17.66

In stock

14

CAP

8A7-14169-00-00

1

$15.80

In stock

15

AIR SCREW SET

23X-14104-00-00

—

$8.52

In stock

16

PLUNGER, STARTER

8U9-14171-00-00

—

$24.23

In stock

17

GASKET, FLOAT CHAMBER BODY

363-14184-00-00

—

$20.86

In stock

18

. JET, PILOT #40

193-14142-40-A1

1
Out of stock

18

. JET, PILOT (#425)

193-14142-42-00

1
Out of stock

18

. JET, PILOT (#45)

193-14142-45-A1

1
Out of stock

19

JET, MAIN #230

137-14143-46-A1

—
Out of stock

19

JET, MAIN #240

137-14143-48-A1

—
Out of stock

19

JET, MAIN #250

137-14143-50-A1

—
Out of stock

19

JET, MAIN #260

137-14143-52-00

—
Out of stock

19

JET, MAIN #270

137-14143-54-A1

—
Out of stock

19

JET, MAIN #280

137-14143-56-A0

—

$9.14

In stock

19

JET, MAIN #290

137-14143-58-A1

—
Out of stock

19

JET, MAIN #300

137-14143-60-A0

—

$9.18

In stock

19

JET, MAIN #310

137-14143-62-A1

—
Out of stock

19

JET, MAIN #320

137-14143-64-00

—

$9.89

In stock

19

JET, MAIN #330

137-14143-66-A1

—
Out of stock

20

. NOZZLE, MAIN

80N-14141-46-00

1
Out of stock

21

. ARM, FLOAT

363-14187-00-00

1
Out of stock

22

. WASHER, PLUG SCREW

239-14117-00-00

1
Out of stock

23

VALVE SEAT ASSY (1.5)

500-14190-15-00

—

$39.59

In stock

24

PIN, FLOAT

537-14186-00-00

—
Out of stock

25

WASHER,VALVE SEAT

239-14195-00-00

—

$11.47

In stock

26

. VALVE, THROTTLE 1

84M-14112-30-00

1
Out of stock

27

. SCREW, THROTTLE

40T-14122-00-00

1
Out of stock

28

SPRING, THROTTLE STOP

137-14133-00-00

—

$6.15

In stock

29

. SEAT, SPRING

3V3-14136-00-00

1
Out of stock

30

CLIP

3FA-14137-00-00

—

$6.80

In stock

31

. SPRING, THROTTLE VALVE

363-14131-00-00

1
Out of stock

32

CLIP (8A1)

90467-09026-00

—

$2.72

In stock

33

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

—

$12.58

In stock

34

. HOSE (87M-14987-00-00)

87M-12484-00-00

1
Out of stock

35

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

36

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

37

. HOSE (87M-14987-00-00)

87M-12484-00-00

1
Out of stock

38

CAP

214-14118-00-00

—

$6.72

In stock

39

. FLOAT

214-14185-00-00

1
Out of stock

40

. WASHER, NEEDLE

2H0-14235-00-00

1
Out of stock

41

CLIP

87M-14137-00-00

—

$11.91

In stock

42

. SETTER, NEEDLE JET

363-14145-00-00

1
Out of stock

43

. WASHER, MAIN JET

5X5-14153-00-00

1
Out of stock

44

. NEEDLE

239-14116-68-00

1
Out of stock

45

. PLATE

510-14146-00-00

1
Out of stock

46

. NUT, CABLE ADJUSTING

80N-14161-00-00

1
Out of stock

47

. SWITCH, CARBURETOR

80N-8259A-01-00

1
Out of stock

48

. PLATE

84M-14146-00-00

1
Out of stock

49

. O-RING

80N-14147-00-00

1
Out of stock

50

CAP

84M-14169-00-00

—

$3.30

In stock

51

CLAMP(81K)

90464-07078-00

—

$2.66

In stock

52

. WASHER

80N-14285-00-00

1
Out of stock

53

NUT, AJUSTING

8A7-26323-00-00

1
Out of stock
