1989 Yamaha Exciter (EX570N) Generator Diagram

← All diagrams

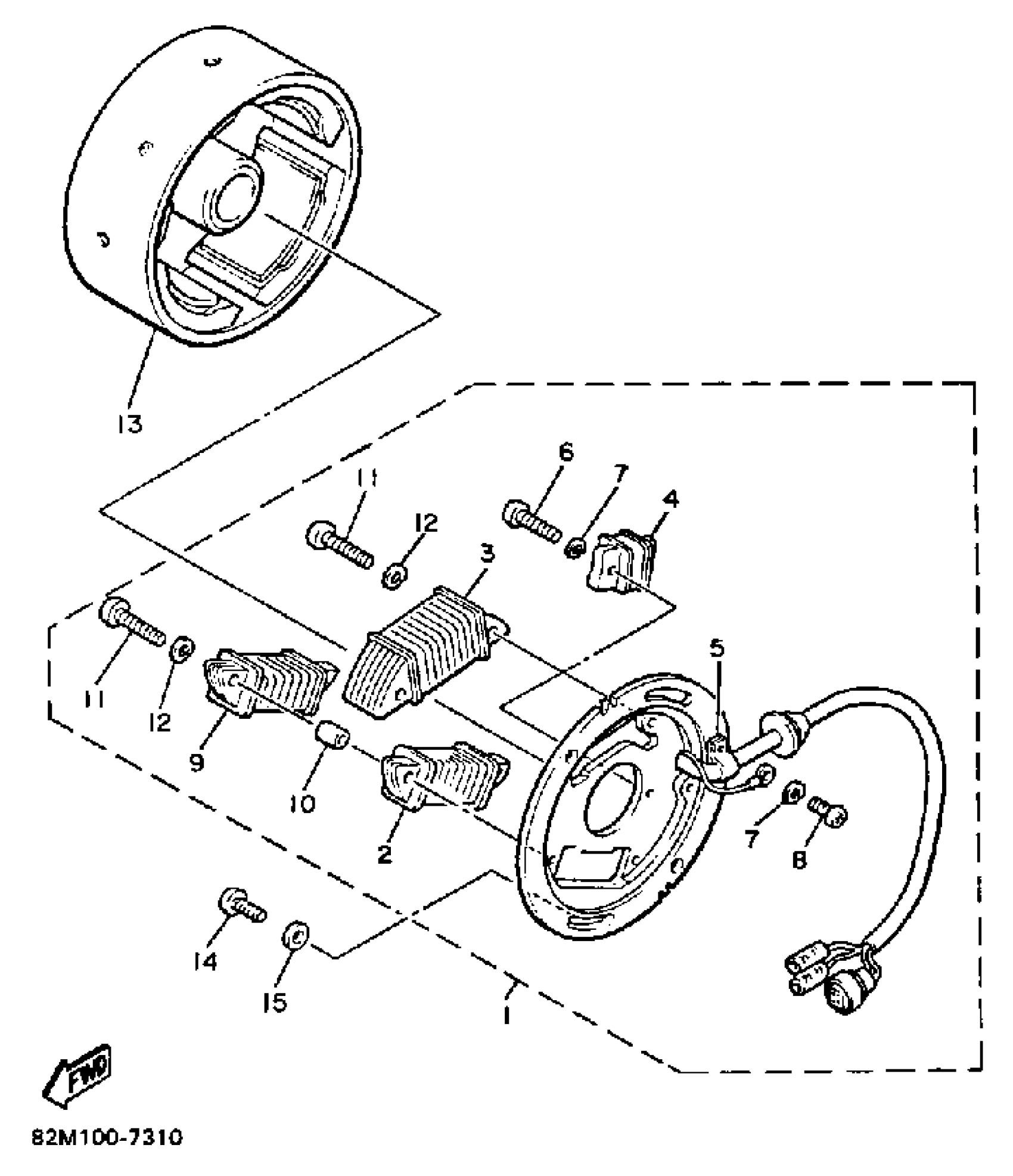

Find the part on the Generator diagram for your 1989 Yamaha Exciter (EX570N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Yamaha Exciter (EX570N) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSEMBLY

82M-85510-20-00

1
Out of stock

2

. COIL, SOURCE (8T0-85511-20)

86M-85511-00-00

1
Out of stock

3

. COIL, LIGHTING 1

8H8-85513-20-00

1
Out of stock

4

. COIL, PULSER (8N5-85580-20)

82M-85580-20-00

1
Out of stock

5

CLAMP, READ

445-81328-20-00

—

$5.35

In stock

6

SCREW, PAN HEAD

98507-04018-00

1
Out of stock

7

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

8

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

9

. COIL, LIGHTING 2 (8V0-85514-20)

82M-85514-20-00

1
Out of stock

10

. SPACER

8T0-85519-20-00

1
Out of stock

11

SCREW, PAN

98507-05040-00

1

$6.68

In stock

12

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

13

ROTOR ASSY

8V0-85550-21-00

1
Out of stock

14

SCREW, BIND (705)

98980-06016-00

1
Out of stock

15

WASHER, PLATE 6261117600

90201-06043-00

1
Out of stock
