1988 Yamaha Exciter (EX570M) Frame Diagram

← All diagrams

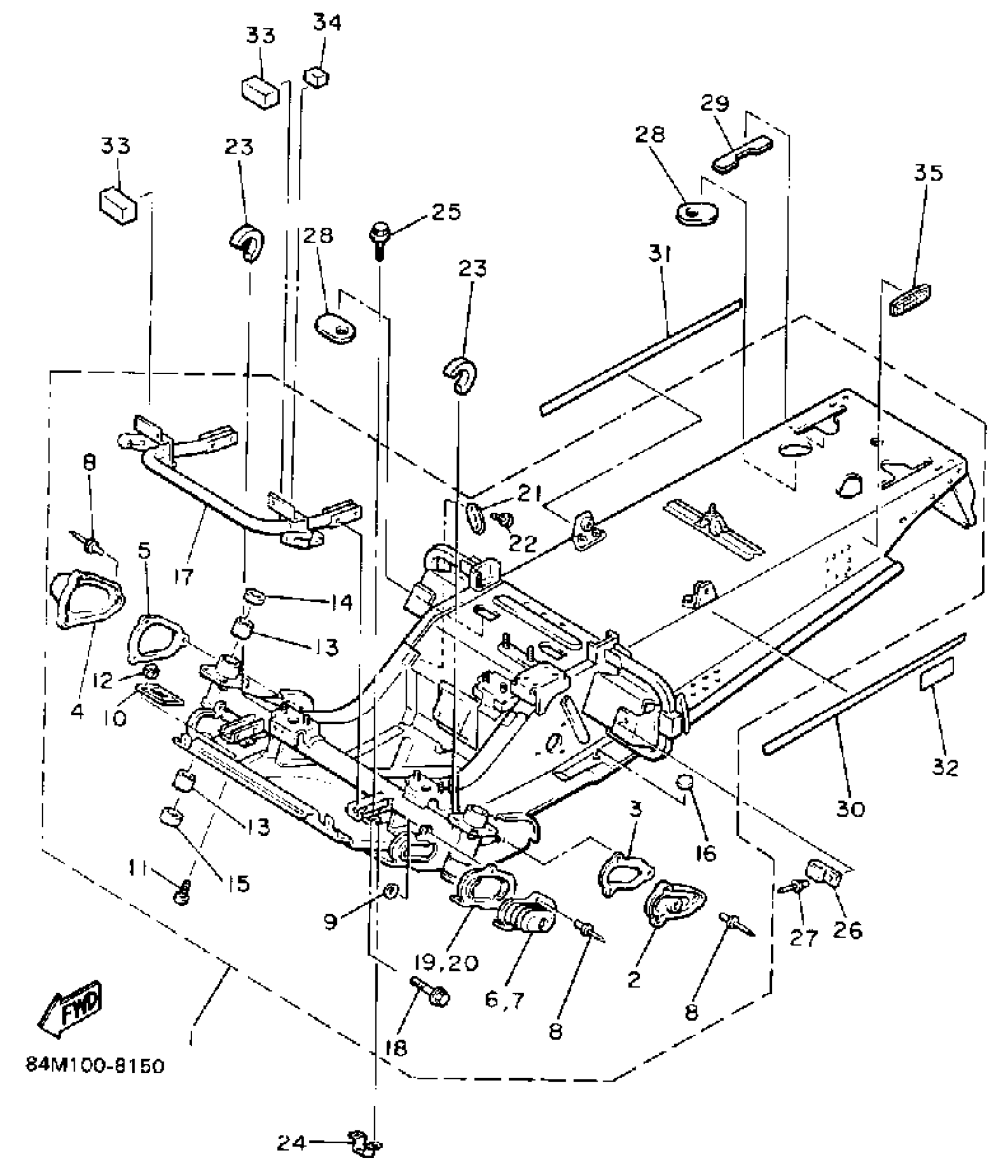

Find the part on the Frame diagram for your 1988 Yamaha Exciter (EX570M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Yamaha Exciter (EX570M) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME (82M-21910-00)

84N-21910-00-00

1
Out of stock

2

COVER 1

8M6-2198F-00-00

1

$22.69

In stock

3

SPACER

8M6-21998-00-00

1

$3.05

In stock

4

. COVER, STEERING

82M-23818-00-00

1
Out of stock

5

. WASHER 2

82M-77526-00-00

1
Out of stock

6

. COVER 1 (LH)

82M-2198F-00-00

1
Out of stock

7

. COVER 2 (RH)

82M-2198G-00-00

1
Out of stock

8

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

9

WASHER, PLATE

90201-04027-00

1
Out of stock

10

PANEL, SUB FRAME 6

8M6-21917-00-00

1
Out of stock

11

SCREW, BINDING

98907-05012-00

1
Out of stock

12

NUT, NYLON

95707-05300-00

1

$2.74

In stock

13

1

$9.68

In stock

14

OIL SEAL (8M6)

93102-36232-00

1

$9.51

In stock

15

OIL SEAL (8M6)

93103-36117-00

1

$20.31

In stock

16

SPACER

80F-21998-00-00

—

$11.69

In stock

17

. BUMPER, FRONT 2

84M-77512-01-00

1
Out of stock

18

BOLT, FLANGE

95817-08035-00

—

$6.68

In stock

19

. PLATE, STRING BRACKET 1 (L, H)

82M-2195E-00-00

1
Out of stock

20

. PLATE, STRING BRACKET 2 (R, H)

82M-2195F-00-00

1
Out of stock

21

. PATCH 4

84M-21964-00-00

1
Out of stock

22

SCREW, BIND(J45)

98980-06012-00

—

$4.70

In stock

23

DAMPER, NOISE 17

82M-77277-00-00

—

$0.78

In stock

24

REINFORCEMENT, SUB FRAME 2

82M-21938-00-00

1
Out of stock

25

BOLT, FLANGE

95812-06010-00

—

$2.75

In stock

26

CLAMP(83R)

90461-08113-00

—

$10.48

In stock

27

RIVET, BLIND (8H4)

90267-48053-00

—

$2.31

In stock

28

PATCH 5

82M-21965-00-00

1
Out of stock

29

PATCH 6

82M-21966-00-00

1
Out of stock

30

EMBLEM 1

82M-77351-00-00

1
Out of stock

31

EMBLEM 2

82M-77352-00-00

1
Out of stock

32

INDICATOR 2

8K2-77742-00-00

1
Out of stock

33

PROTECTOR 5

84M-77555-00-00

—

$7.31

In stock

34

TAPE, 5

85L-7717J-00-00

1
Out of stock

35

REAR REFLECTOR ASSY

81G-85130-00-00

—

$33.55

In stock
