1987 Yamaha Exciter (EX570L) Frame Diagram

← All diagrams

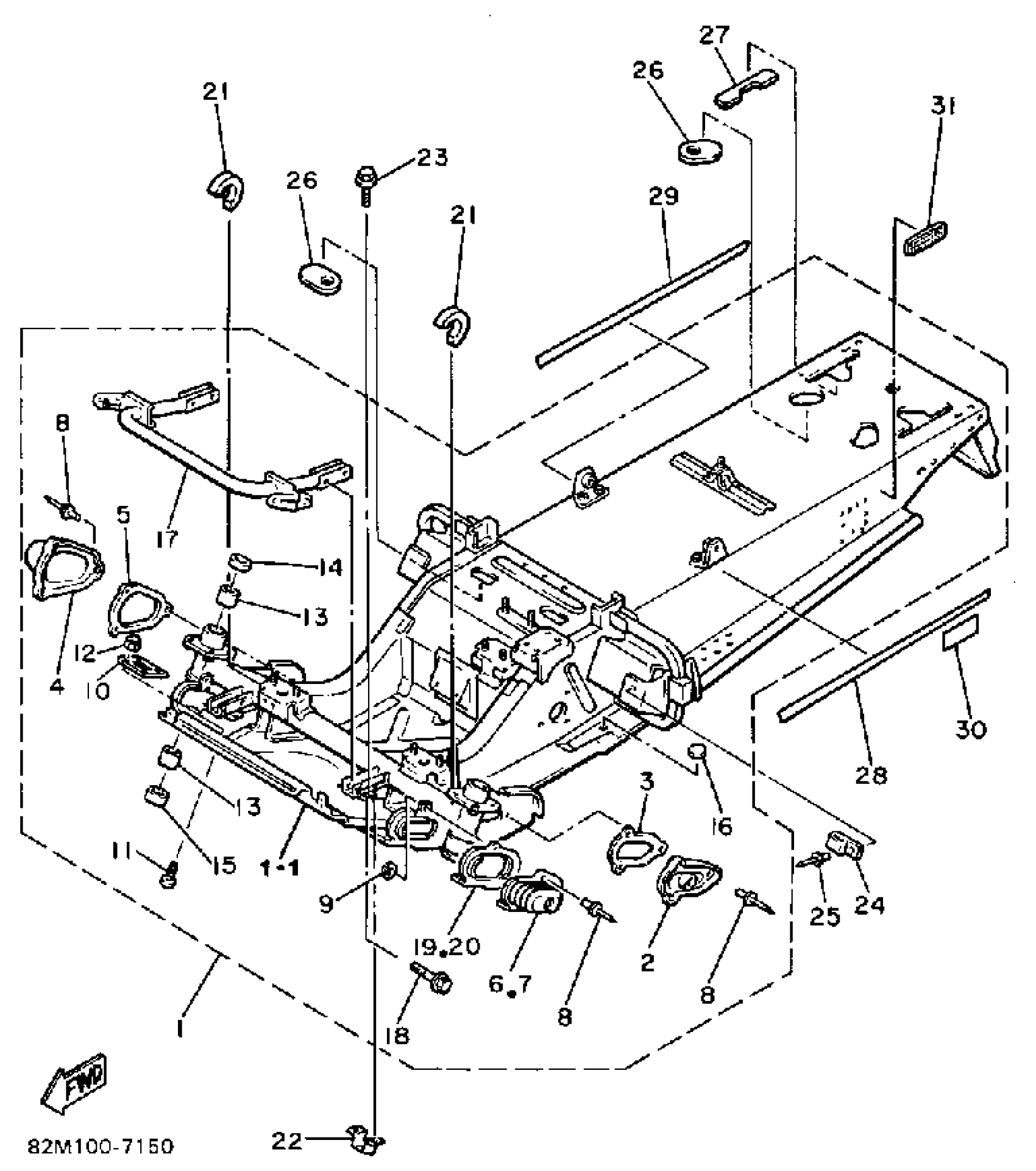

Find the part on the Frame diagram for your 1987 Yamaha Exciter (EX570L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Yamaha Exciter (EX570L) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. BELLY PAN

82M-21912-00-00

1
Out of stock

1

FRAME (82M-21910-00)

84N-21910-00-00

1
Out of stock

2

COVER 1

8M6-2198F-00-00

1

$22.69

In stock

3

SPACER

8M6-21998-00-00

1

$3.05

In stock

4

. COVER, STEERING

82M-23818-00-00

1
Out of stock

5

. WASHER 2

82M-77526-00-00

1
Out of stock

6

. COVER 1 (LH)

82M-2198F-00-00

1
Out of stock

7

. COVER 2 (RH)

82M-2198G-00-00

1
Out of stock

8

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

9

WASHER, PLATE

90201-04027-00

1
Out of stock

10

PANEL, SUB FRAME 6

8M6-21917-00-00

1
Out of stock

11

SCREW, BINDING

98907-05012-00

1
Out of stock

12

NUT, NYLON

95707-05300-00

1

$2.74

In stock

13

1

$9.68

In stock

14

OIL SEAL (8M6)

93102-36232-00

1

$9.51

In stock

15

OIL SEAL (8M6)

93103-36117-00

—

$20.31

In stock

16

SPACER

80F-21998-00-00

—

$11.69

In stock

17

. BUMPER, FRONT 2

82M-77512-00-00

1
Out of stock

18

BOLT, FLANGE

95817-08035-00

—

$6.68

In stock

19

. PLATE, STRING BRACKET 1 (L, H)

82M-2195E-00-00

1
Out of stock

20

. PLATE, STRING BRACKET 2 (R, H)

82M-2195F-00-00

1
Out of stock

21

DAMPER, NOISE 17

82M-77277-00-00

—

$0.78

In stock

22

REINFORCEMENT, SUB FRAME 2

82M-21938-00-00

1
Out of stock

23

BOLT, FLANGE

95812-06010-00

—

$2.75

In stock

24

CLAMP(83R)

90461-08113-00

—

$10.48

In stock

25

RIVET, BLIND (8H4)

90267-48053-00

—

$2.31

In stock

26

PATCH 5

82M-21965-00-00

1
Out of stock

27

PATCH 5

82M-21965-00-00

1
Out of stock

28

EMBLEM 1

82M-77351-00-00

1
Out of stock

29

EMBLEM 2

82M-77352-00-00

1
Out of stock

30

INDICATOR 2

8K2-77742-00-00

1
Out of stock

31

REAR REFLECTOR ASSY

81G-85130-00-00

—

$33.55

In stock
