1990 Yamaha Exciter Le (Elec Start (EX570EP) Frame Diagram

← All diagrams

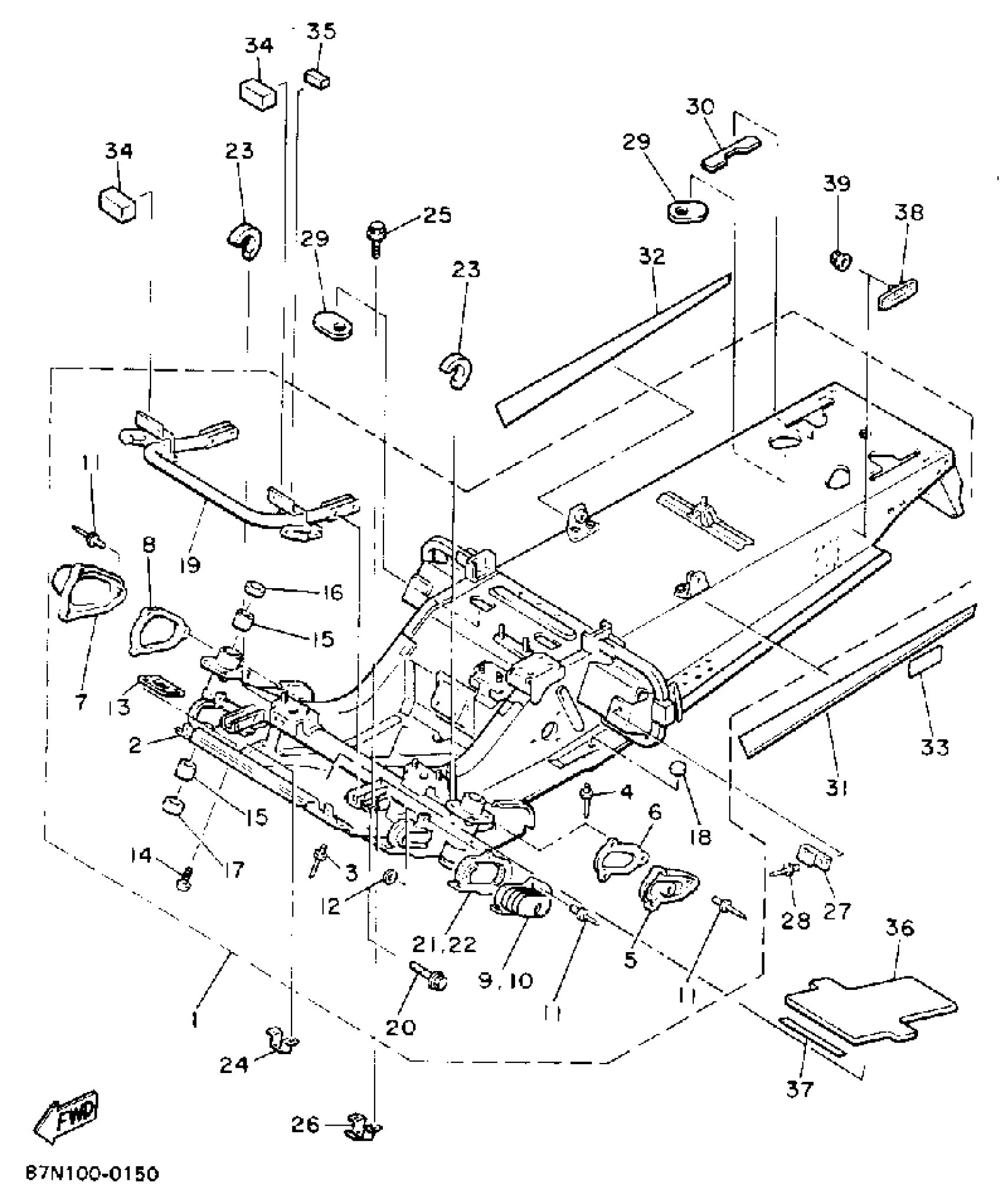

Find the part on the Frame diagram for your 1990 Yamaha Exciter Le (Elec Start (EX570EP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Exciter Le (Elec Start (EX570EP) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

86N-21910-00-00

1
Out of stock

2

. PANEL, SUB FRAME 1

86M-21912-00-00

1
Out of stock

3

RIVET, BLIND

90267-48018-00

1
Out of stock

4

RIVET, BLIND

90267-48060-00

1
Out of stock

5

COVER 1

8M6-2198F-00-00

1
Out of stock

6

SPACER

8M6-21998-00-00

1
Out of stock

7

. COVER, STEERING

82M-23818-00-00

1
Out of stock

8

. WASHER 2

82M-77526-00-00

1
Out of stock

9

. COVER 1 (LH)

82M-2198F-00-00

1
Out of stock

10

. COVER 2 (RH)

82M-2198G-00-00

1
Out of stock

11

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

12

WASHER, PLATE

90201-04027-00

1
Out of stock

13

PANEL, SUB FRAME 6

8M6-21917-00-00

1
Out of stock

14

SCREW, WITH WASHER

90159-05137-00

1
Out of stock

15

BUSH, BIMETAL FORMED (8M6)

90384-36134-00

1
Out of stock

16

OIL SEAL (8M6)

93102-36232-00

—
Out of stock

17

OIL SEAL (8M6)

93103-36117-00

—
Out of stock

18

SPACER

80F-21998-00-00

—
Out of stock

19

. BUMPER, FRONT 2

84M-77512-01-00

1
Out of stock

20

BOLT, FLANGE

95817-08035-00

—
Out of stock

21

. PLATE, STRING BRACKET 1 (L, H)

82M-2195E-00-00

1
Out of stock

22

. PLATE, STRING BRACKET 2 (R, H)

82M-2195F-00-00

1
Out of stock

23

DAMPER, NOISE 17

82M-77277-00-00

—
Out of stock

24

REINFORCEMENT, SUB FRAME 2

82M-21938-00-00

1
Out of stock

25

BOLT, FLANGE

95812-06010-00

—
Out of stock

26

REINFCMNT,SUB.FR 2

84N-21938-01-00

1
Out of stock

27

CLAMP(83R)

90461-08113-00

—
Out of stock

28

RIVET, BLIND (8H4)

90267-48053-00

—
Out of stock

29

PATCH 5

82M-21965-00-00

1
Out of stock

30

PATCH 6

82M-21966-00-00

1
Out of stock

31

EMBLEM 1

87M-77351-00-00

1
Out of stock

31

EMBLEM 1

87N-77351-00-00

1
Out of stock

32

EMBLEM 2

87M-77352-00-00

1
Out of stock

32

EMBLEM 2

87N-77352-00-00

1
Out of stock

33

INDICATOR 2

8K2-77742-00-00

1
Out of stock

34

PROTECTOR 5

84M-77555-00-00

—
Out of stock

35

TAPE, 5

85L-7717J-00-00

1
Out of stock

36

SHIELD, HEAT

86M-2199H-00-00

1
Out of stock

37

TAPE 3

8V0-7717G-00-00

—
Out of stock

38

REAR REFLECTOR ASSY

3Y6-85130-02-00

1
Out of stock

39

NUT, FLANGE(3GM)

95707-05500-00

—
Out of stock
