Description

Price

12004

VALVE-INTAKE

12004-1076

Unavailable

12005

VALVE-EXHAUST

12005-1052

$67.45

12009

RETAINER-VALVE SPRING

12009-1054

$8.61

12011

COLLET

12011-1003

$3.69

12016

ARM-ROCKER

12016-1051

Unavailable

12020

SHAFT-ROCKER

12020-1057

$79.87

16007

SEAT-SPRING,12.1X16.2X0.5

16007-1143

$4.85

16007A

SEAT-SPRING,17.5X23.8X0.5

16007-1144

$4.88

49078

SPRING-ENGINE VALVE,INNER

49078-1051

$15.61

49078A

SPRING-ENGINE VALVE,OUTER

49078-1052

$15.61

92009

SCREW,7MM

92009-1279

$8.42

92015

NUT,7MM

92015-1325

$3.97

92049

SEAL-OIL,RVC2-5.5X8.5X8.3

92049-1062

$4.07

92081

SPRING,ROCKER ARM

92081-1636

$14.90

670

O RING,16MM

670D2016

$1.44

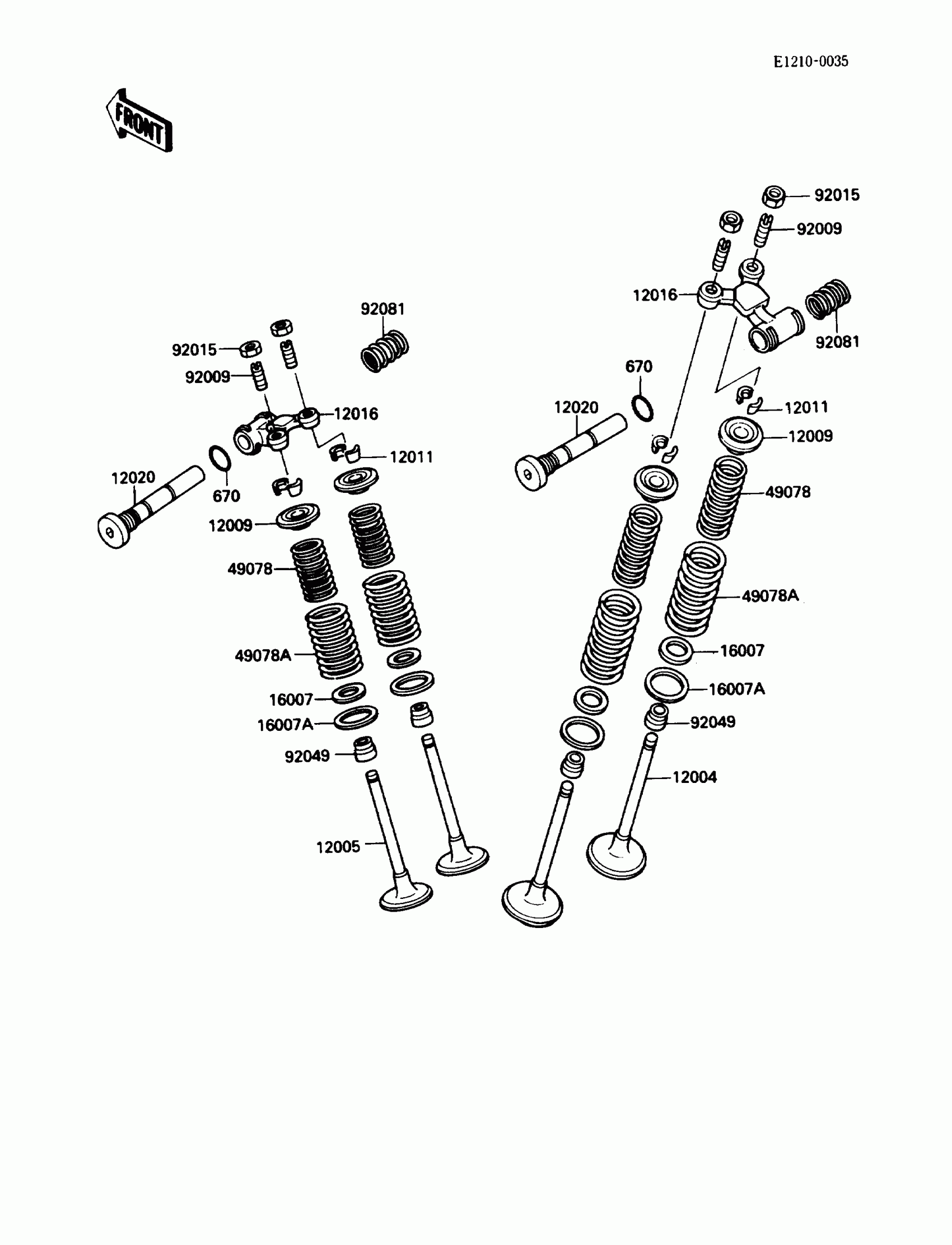

Kawasaki EX500 Valve(s) Diagram

VALVE-INTAKE

ARM-ROCKER
