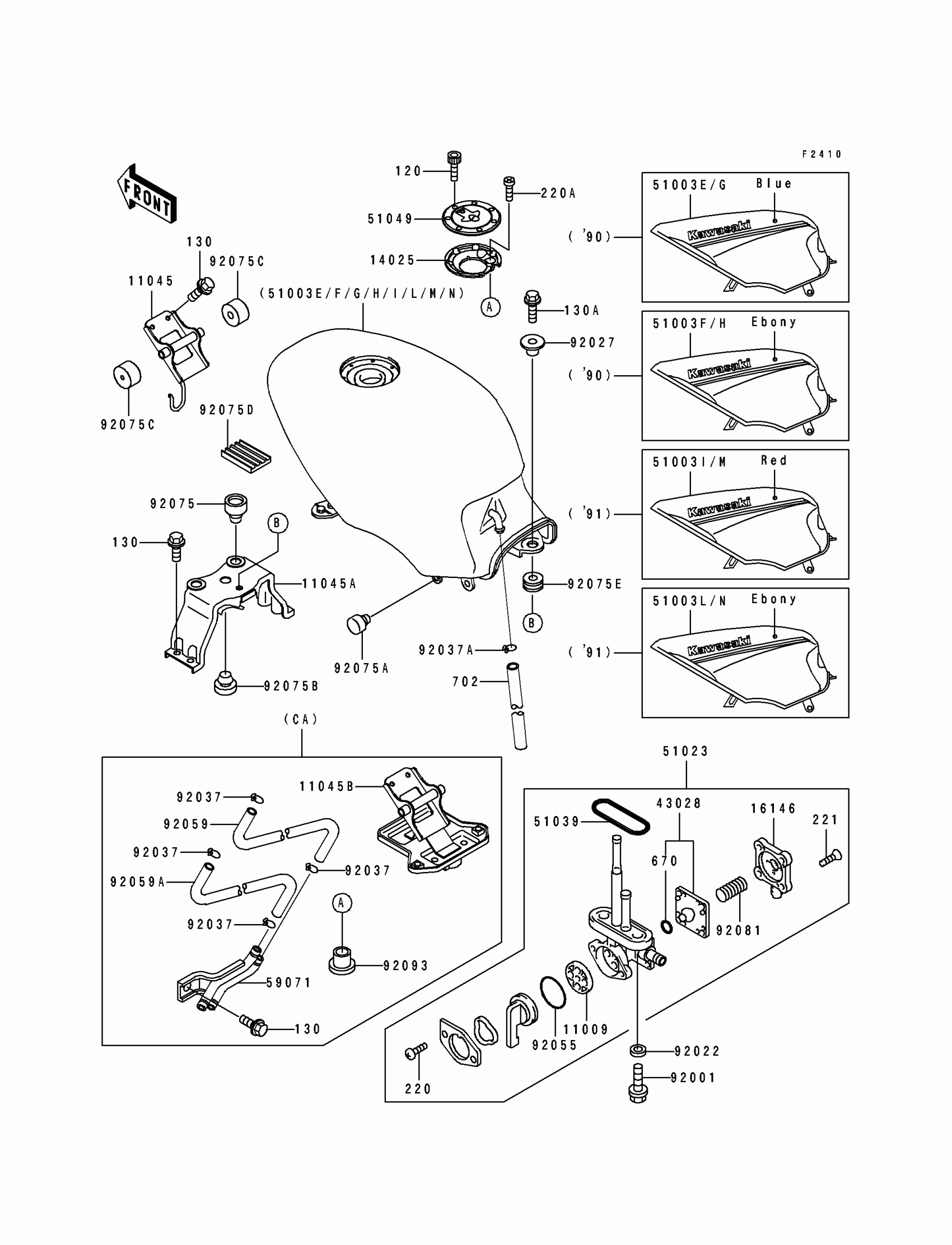

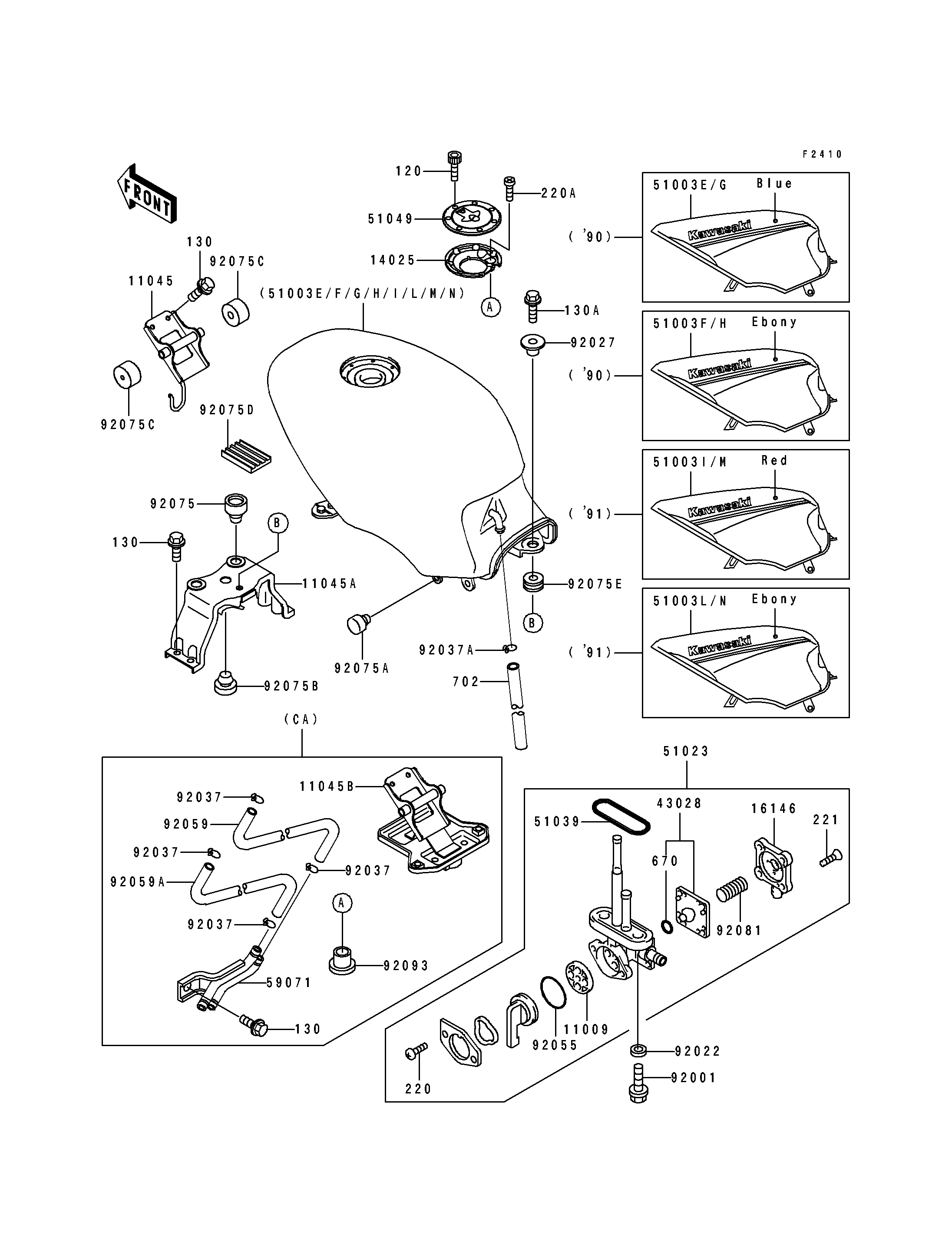

Kawasaki EX500 Fuel Tank(4/4)(EX500-A4/A5) Diagram
#
11009
GASKET,TAP VALVE
11009-1188
Unavailable
11045
BRACKET,FUEL TANK,FR
11045-1362
Unavailable
11045A
BRACKET,FUEL TANK,RR
11045-1363
Unavailable
11045B
BRACKET,FUEL TANK,FR
11045-1389
Unavailable
14025
COVER,TANK CAP
14025-1913
Unavailable
16146
COVER-ASSY,TAP DIAPHRAGM
16146-1010
Unavailable
43028
DIAPHRAGM
43028-1033
Unavailable
51003I
TANK-COMP-FUEL,C.C.RED
51003-5125-L1
Unavailable
51003L
TANK-COMP-FUEL,EBONY
51003-5210-H8
Unavailable
51003M
TANK-COMP-FUEL,C.C.RED
51003-5211-L1
Unavailable
51003N
TANK-COMP-FUEL,EBONY
51003-5212-H8
Unavailable
51023
TAP-ASSY,FUEL
51023-1142
Unavailable
51039
RING,TAP FLANGED
51039-003
Unavailable
51049
CAP-TANK,FUEL
51049-1091
Unavailable
59071
JOINT,EVAPO
59071-1122
Unavailable
92001
BOLT,6X20
92001-1091
Unavailable
92022
WASHER-PLAIN
92022-183
Unavailable
92027
COLLAR,L=19.3
92027-1780
Unavailable
92037
CLAMP,TUBE
92037-010
Unavailable
92037A
CLAMP
92037-1712
Unavailable
92055
RING-O,TAP LEVER
92055-1085
Unavailable
92059
TUBE,EVAPO
92059-1767
Unavailable
92059A
TUBE,EVAPO
92059-1768
Unavailable
92075
DAMPER
92075-015
Unavailable
92075A
DAMPER
92075-021
Unavailable
92075B
DAMPER
92075-1045
Unavailable
92075C
DAMPER,FUEL TANK,FR
92075-1115
Unavailable
92075D
DAMPER
92075-1489
Unavailable
92075E
DAMPER
92075-1736
Unavailable
92081
SPRING,TAP DIAPHRAGM
92081-1240
Unavailable
92093
SEAL,FUEL TANK CAP
92093-1030
Unavailable
120
BOLT-SOCKET,5X12
120S0512
Unavailable
130
BOLT
130B0612
Unavailable
130
BOLT
130B0612
Unavailable
130A
BOLT,FLANGED,8X30
130G0830
Unavailable
220
SCREW-PAN-CROS,3X8
220B0308
Unavailable
220A
SCREW-PAN-CROSS
220C0508
Unavailable
221
SCREW-CSK-CROS,4X14
221B0414
Unavailable
670
O RING,4MM
670B1504
Unavailable
702
TUBE-RUBBER,7X10X380
702A07380
Unavailable
