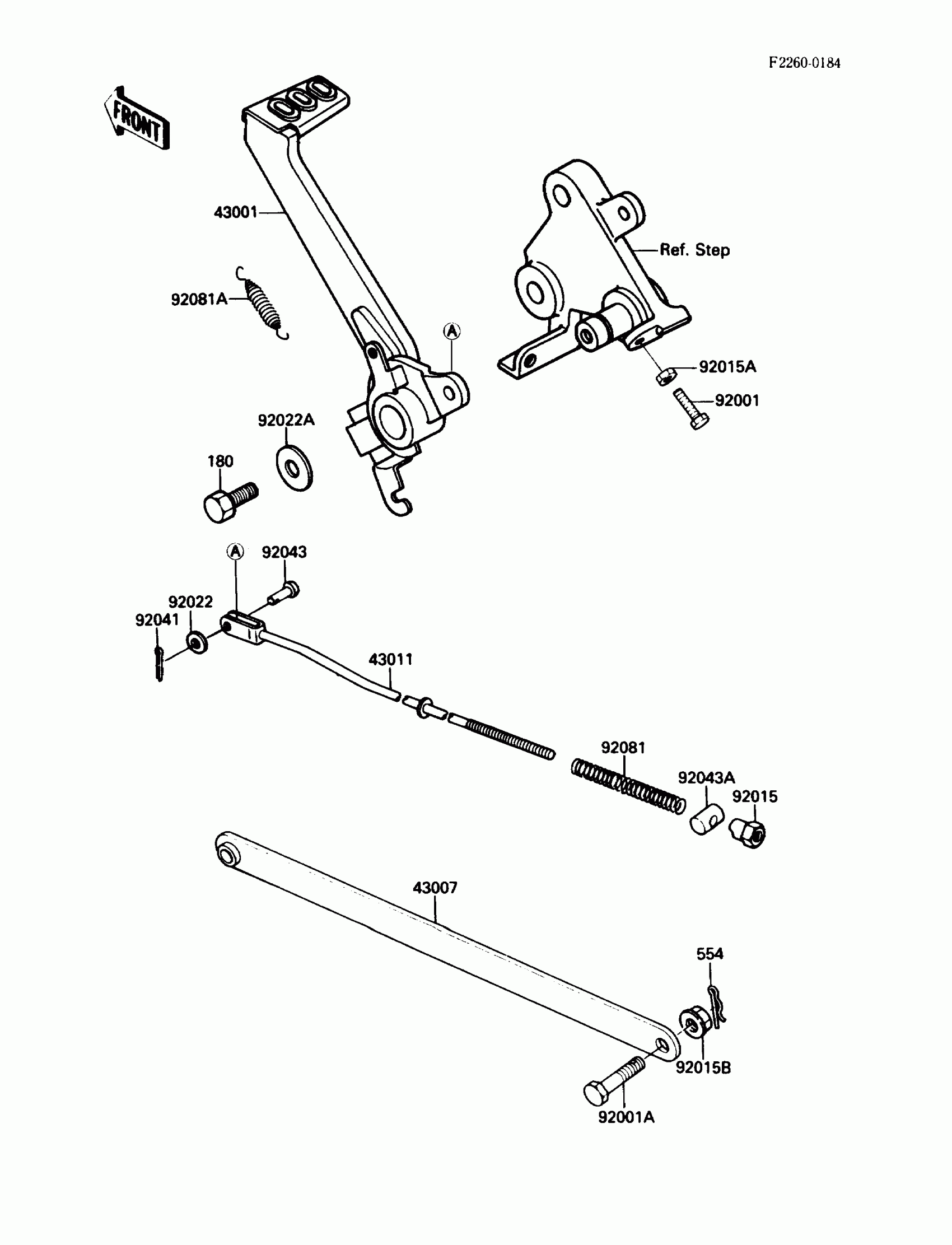

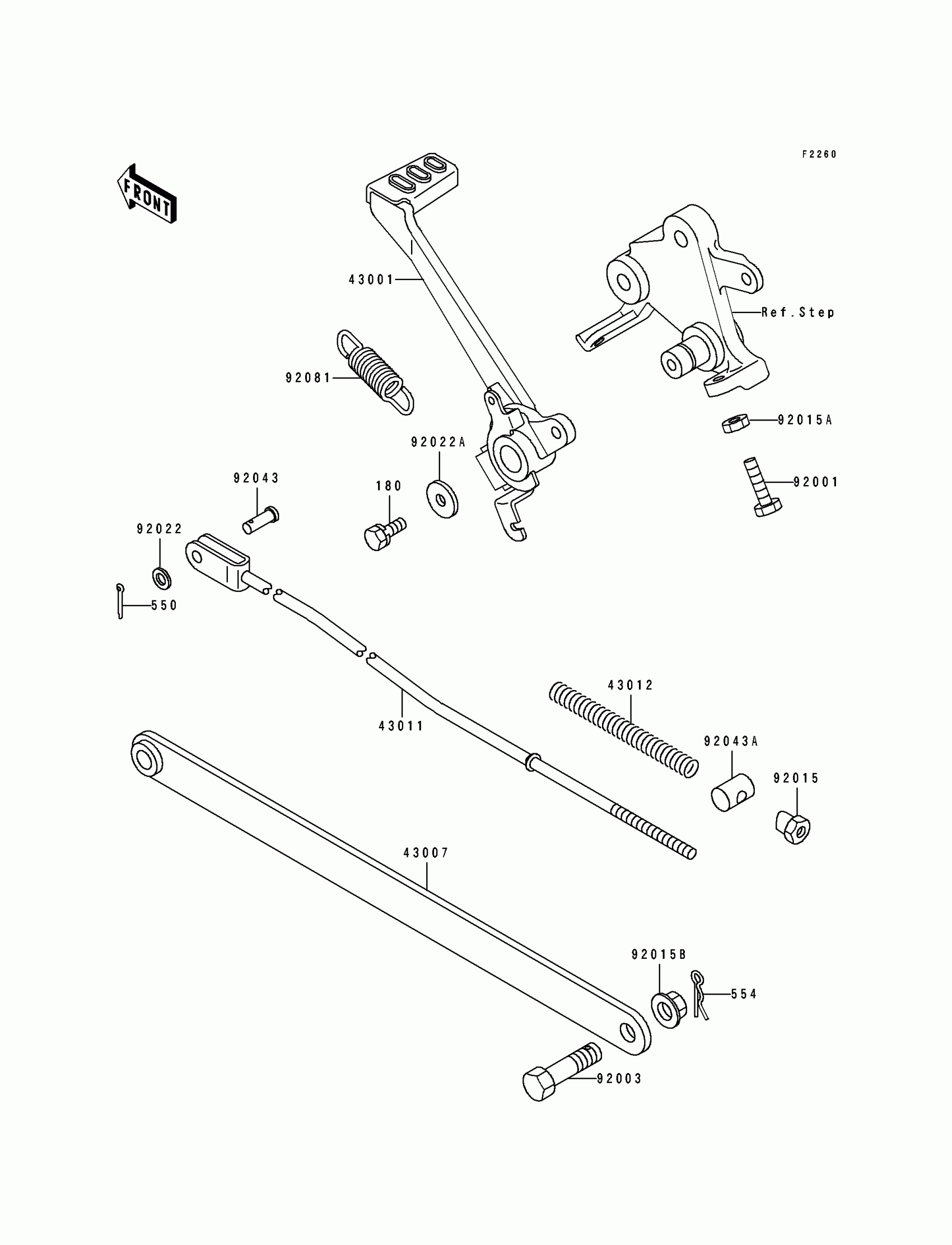

Kawasaki EX500 Brake Pedal/Torque Link Diagram

Description

Price

43001

LEVER-BRAKE,PEDAL

43001-1219

$122.11

43007

ROD-TORQUE

43007-1131

$36.10

43011

ROD-BRAKE

43011-1136

$18.58

92001

BOLT,6X25

92001-1090

Unavailable

92001A

BOLT,10X35

92003-034

$12.58

92015

NUT,BRAKE ROD

92015-042

$4.67

92015A

NUT,6MM

92015-1391

$1.77

92015B

NUT,FLANGED,10MM

92015-1428

$3.81

92022

WASHER,6.5X11.5X0.8

92022-1556

$1.03

92022A

WASHER,6.5X20X1.6

92022-1557

$1.08

92041

COTTER,2.0X15

92041-1052

$0.90

92043

PIN,6X17

92043-064

$3.57

92043A

PIN,BRAKE ROD

92043-065

$4.23

92081

SPRING,BRAKE ROD

43012-001

$3.54

92081A

SPRING,BRAKE PEDAL

92081-1147

Unavailable

180

BOLT-UPSET-WS,6X16

180D0616

Unavailable

554

PIN-SNAP,8MM

554A0800

Unavailable
