1980 Yamaha EX440D Cylinder Diagram

← All diagrams

Find the part on the Cylinder diagram for your 1980 Yamaha EX440D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

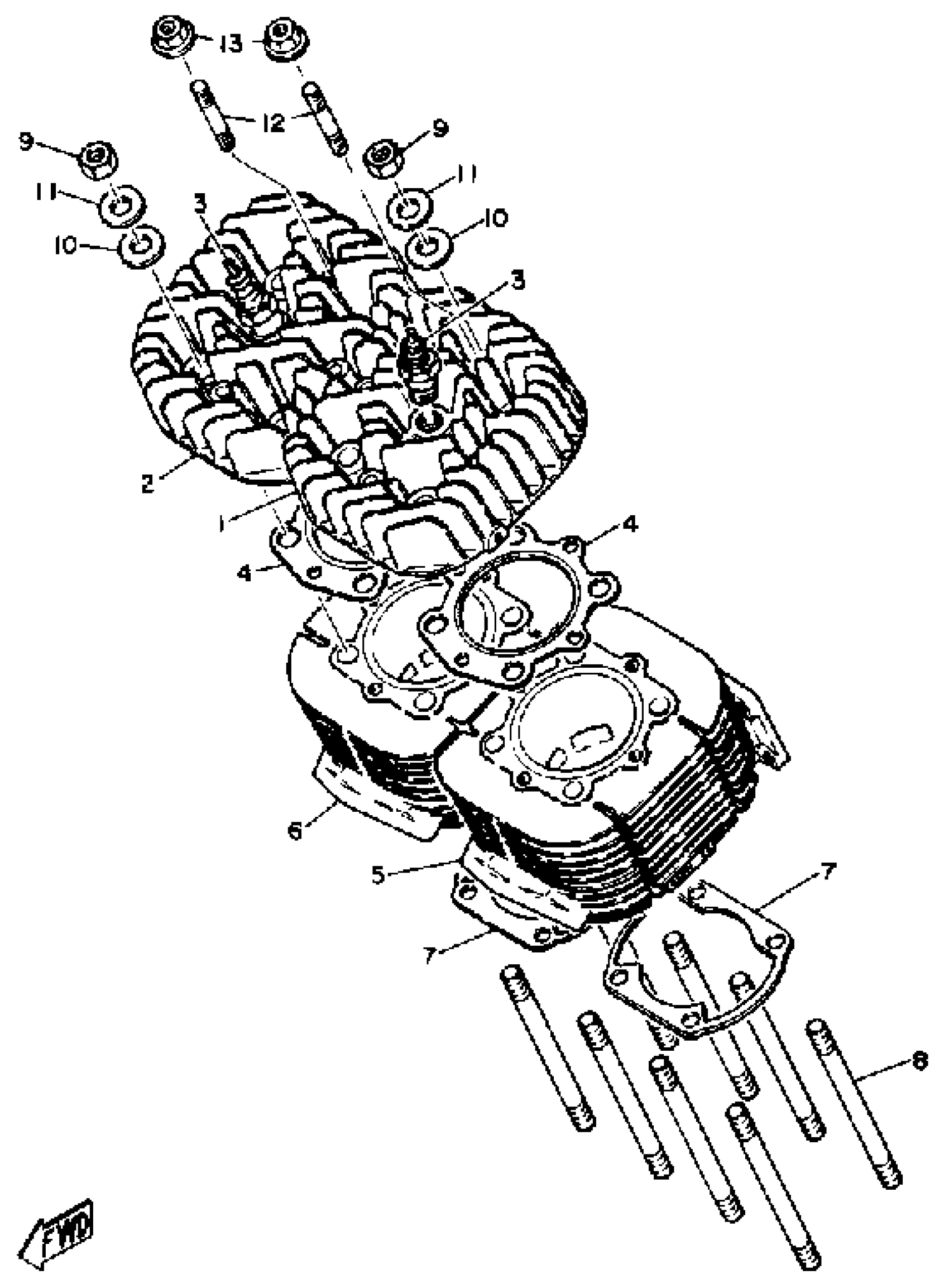

1980 Yamaha EX440D Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD, CYLINDER 1

8A5-11111-00-00

1
Out of stock

2

HEAD, CYLINDER 2

8A5-11121-10-00

1
Out of stock

3

BR9ES NGK SCREW TOP PLUG 4PK

BR9-ES000-00-00

1
Out of stock

4

GASKET, CYL HEAD 1

828-11181-09-00

1
Out of stock

5

CYLINDER 1

8A5-11311-01-00

1
Out of stock

6

CYLINDER 2

8A5-11321-01-00

1
Out of stock

7

GASKET, CYLINDER

857-11351-09-00

1

$3.62

In stock

8

BOLT (248-11361-00)

90116-08064-00

1
Out of stock

9

NUT, SPEC''L SHAPE

90179-08090-00

1
Out of stock

10

YBS66-12 WASHER,PLAIN

92990-12200-00

1

$6.17

In stock

11

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

—
Out of stock

12

BOLT, STUD

(95611-08650-00)

1
Out of stock

13

NUT, FLANGE

95704-08500-00

1
Out of stock
