1980 Yamaha EX440D Bumper Diagram

← All diagrams

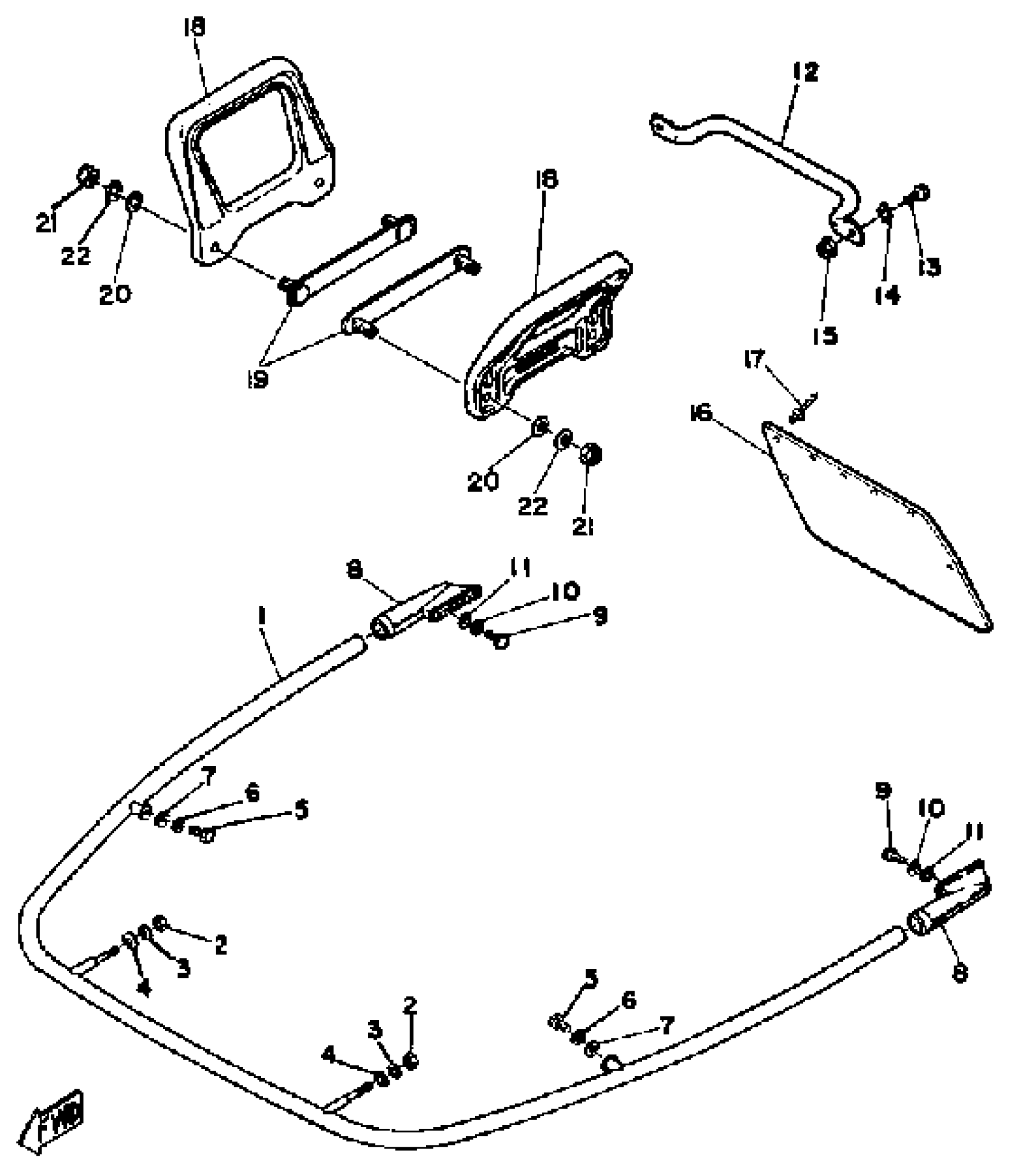

Find the part on the Bumper diagram for your 1980 Yamaha EX440D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha EX440D Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT BUMPER

878-77510-00-00

1
Out of stock

2

NUT(6L2)

95333-08600-00

1

$3.20

In stock

3

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

4

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

5

BOLT, HEXAGON

97017-08025-00

1

$7.46

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

8

END, BUMPER

878-77523-01-00

1
Out of stock

9

BOLT HEXAGON

97001-05018-00

1
Out of stock

10

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

11

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

12

BUMPER, REAR 1

8E7-77541-00-00

1
Out of stock

13

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

14

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

15

NUT, NYLON

95717-08300-00

1

$2.57

In stock

16

FLAP

8V8-77595-00-00

1
Out of stock

17

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock

18

GRIP, ASSIST

FJ0-63771-30-00

1

$102.49

In stock

19

BRKT, ASSIST GRIP

898-77576-00-00

1
Out of stock

20

WASHER, PLATE (4W3)

90201-086A3-00

—

$6.29

In stock

21

NUT, CROWN

95303-08800-00

—

$7.52

In stock

22

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock
