1979 Yamaha EX440C Track-Suspension Diagram

← All diagrams

Find the part on the Track-Suspension diagram for your 1979 Yamaha EX440C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

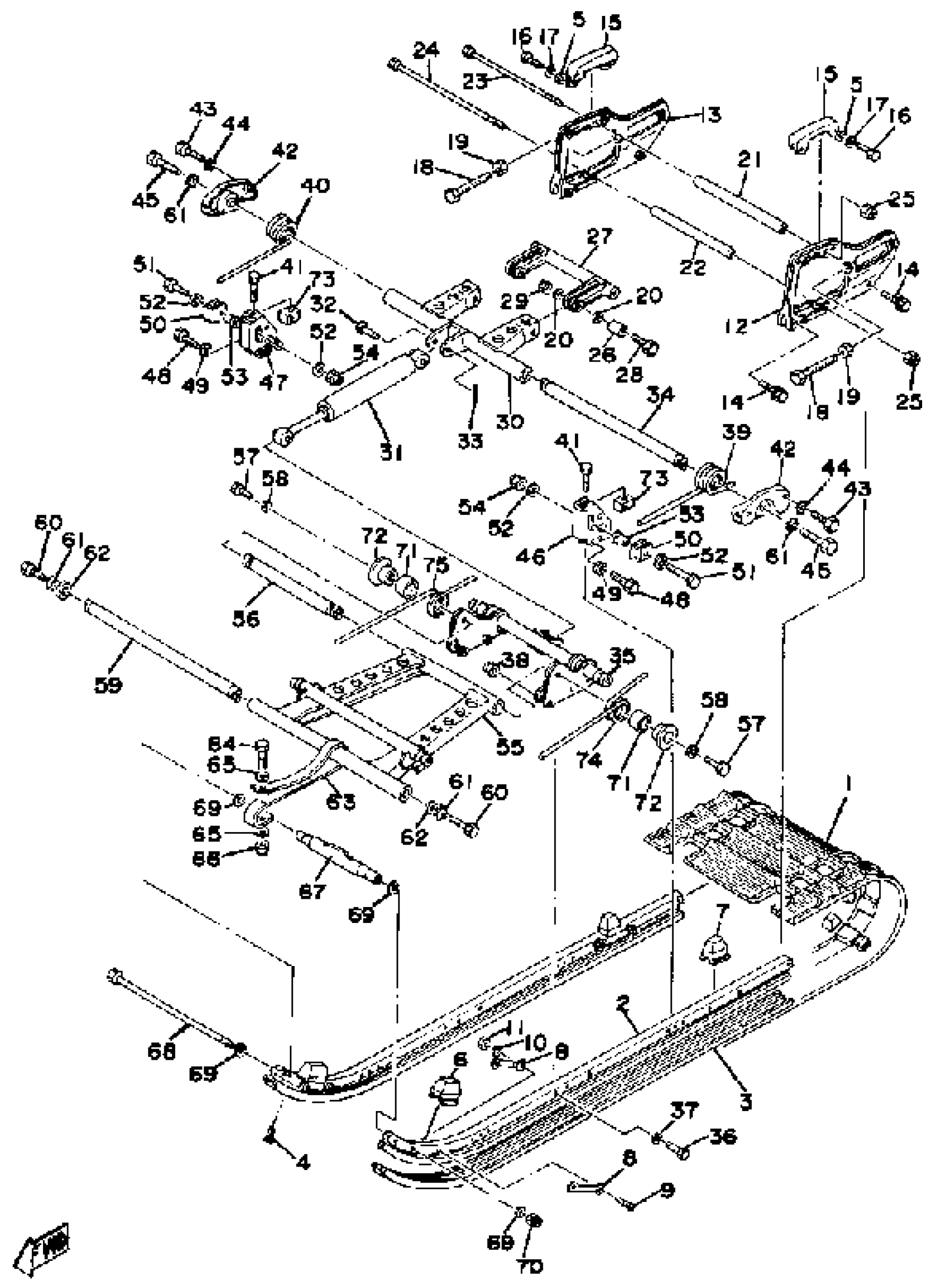

1979 Yamaha EX440C Track-Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TRACK ASY

8V0-47110-00-00

1
Out of stock

2

FRAME, SLIDING 1

8E7-47411-00-00

1
Out of stock

3

1

$13.32

In stock

4

SCREW, CROSSRECESS (8G6)

90151-06005-00

1
Out of stock

5

WASHER, PLATE

90201-06020-00

1

$6.28

In stock

6

DAMPER 2

8E3-47457-00-00

1
Out of stock

7

DAMPER 2

885-47457-00-00

1
Out of stock

8

PLATE, DAMPER

885-47458-01-00

1
Out of stock

9

SCREW, PAN HEAD

98517-05030-00

1

$7.92

In stock

10

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

11

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

12

FRAME, SLIDING 2

8A5-47412-00-00

1
Out of stock

13

FRAME, SLIDING 3

8A5-47413-00-00

1
Out of stock

14

BOLT, WITH WASHER

90119-08008-00

1
Out of stock

15

RUNNER, SLIDING

8E3-47422-00-00

1

$17.09

In stock

16

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

BOLT, HEXAGON (899 TRACK)

90101-10293-00

—
Out of stock

19

NUT (682)

95380-10700-00

1

$5.78

In stock

20

WASHER (1T1)

90201-08649-00

—
Out of stock

21

COLLAR (899 SUSPENSION)

90387-08497-00

—

$12.38

In stock

22

COLLAR (899 SUSPENSION)

90387-08496-00

—

$9.91

In stock

23

BOLT, HEXAGON

97027-08250-00

1
Out of stock

24

BOLT (8M8)

90101-08374-00

—
Out of stock

25

NUT, NYLON

95717-08300-00

—

$2.57

In stock

26

COLLAR (8A5 SUSPENSION)

90387-08508-00

—

$5.77

In stock

27

BRACKET 3

8A5-47417-00-00

—

$79.35

In stock

28

BOLT, HEXAGON

97013-08050-00

—

$6.82

In stock

29

NUT, NYLON

95717-08300-00

—

$2.57

In stock

30

ARM, PIVOT 2

8A5-47332-00-00

1
Out of stock

31

SHOCK ABSORBER

8E7-47480-01-00

—

$209.42

In stock

32

PIN, CLEVIS(8N0)

90240-12115-00

—

$16.35

In stock

33

PIN, COTTER

91490-30030-00

—

$7.15

In stock

34

SHAFT 2

8A5-47475-02-00

—

$27.91

In stock

35

BRACKET 2 (8A5-47416-00)

8R0-47416-00-00

1
Out of stock

36

BOLT(21W)

97017-06035-00

—

$2.91

In stock

37

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

38

NUT, NYLON

95707-06300-00

—

$3.20

In stock

39

SPRING, TORSION

90508-95291-00

1
Out of stock

39

SPRING, TORSION 3(8E7)

90508-99331-00

—

$38.86

In stock

40

SPRING, TORSION

90508-95292-00

1
Out of stock

40

SPRING, TORSION 4(8E7)

90508-99332-00

—

$38.86

In stock

41

BOLT SET (865,9010110200)

99999-02604-00

1
Out of stock

42

BRACKET, REAR 1

8G6-47426-00-00

1
Out of stock

43

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

44

WASHER (688)

92990-08400-00

1

$3.46

In stock

45

BOLT (8J7)

97013-10030-00

—

$8.91

In stock

46

BRACKET 5

8G6-47463-00-00

1
Out of stock

47

BRACKET 6

(8G6-47464-00-00)

1
Out of stock

48

BOLT(21W)

97017-06035-00

—

$2.91

In stock

49

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

50

HOOK 2

890-47447-00-00

—

$4.35

In stock

51

BOLT

97021-08065-00

1
Out of stock

52

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

53

COLLAR

90387-082G1-00

1
Out of stock

54

NUT, NYLON

95717-08300-00

—

$2.57

In stock

55

ARM, PIVOT 1

8A5-47331-01-00

1
Out of stock

56

SHAFT 3

8A5-47485-02-00

1
Out of stock

57

BOLT(N02)

97070-10035-00

—

$11.38

In stock

58

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

59

SHAFT 1

8A5-47465-02-00

—

$46.62

In stock

60

BOLT (8J7)

97013-10030-00

—

$8.91

In stock

61

WASHER, TTH

92907-10400-00

1
Out of stock

62

SPACER

885-47341-00-00

1
Out of stock

63

STOPPER 1

8E3-47495-00-00

1
Out of stock

64

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

65

WASHER, PLATE

90201-06747-00

—

$6.17

In stock

66

NUT, NYLON

95707-06300-00

—

$3.20

In stock

67

BRACKET 1

899-47415-00-00

1
Out of stock

68

BOLT (8M8)

90101-08374-00

—
Out of stock

69

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

70

NUT, NYLON

95717-08300-00

—

$2.57

In stock

71

COLLAR

90387-30570-00

1
Out of stock

72

HOOK 1

8E7-47446-00-00

1
Out of stock

73

HOOK 1

8G6-47446-00-00

1
Out of stock

74

SPRING, TORSION

90508-65329-00

1
Out of stock

75

SPRING, TORSION

90508-65330-00

1
Out of stock
