1979 Yamaha EX440C SKI Diagram

← All diagrams

Find the part on the SKI diagram for your 1979 Yamaha EX440C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

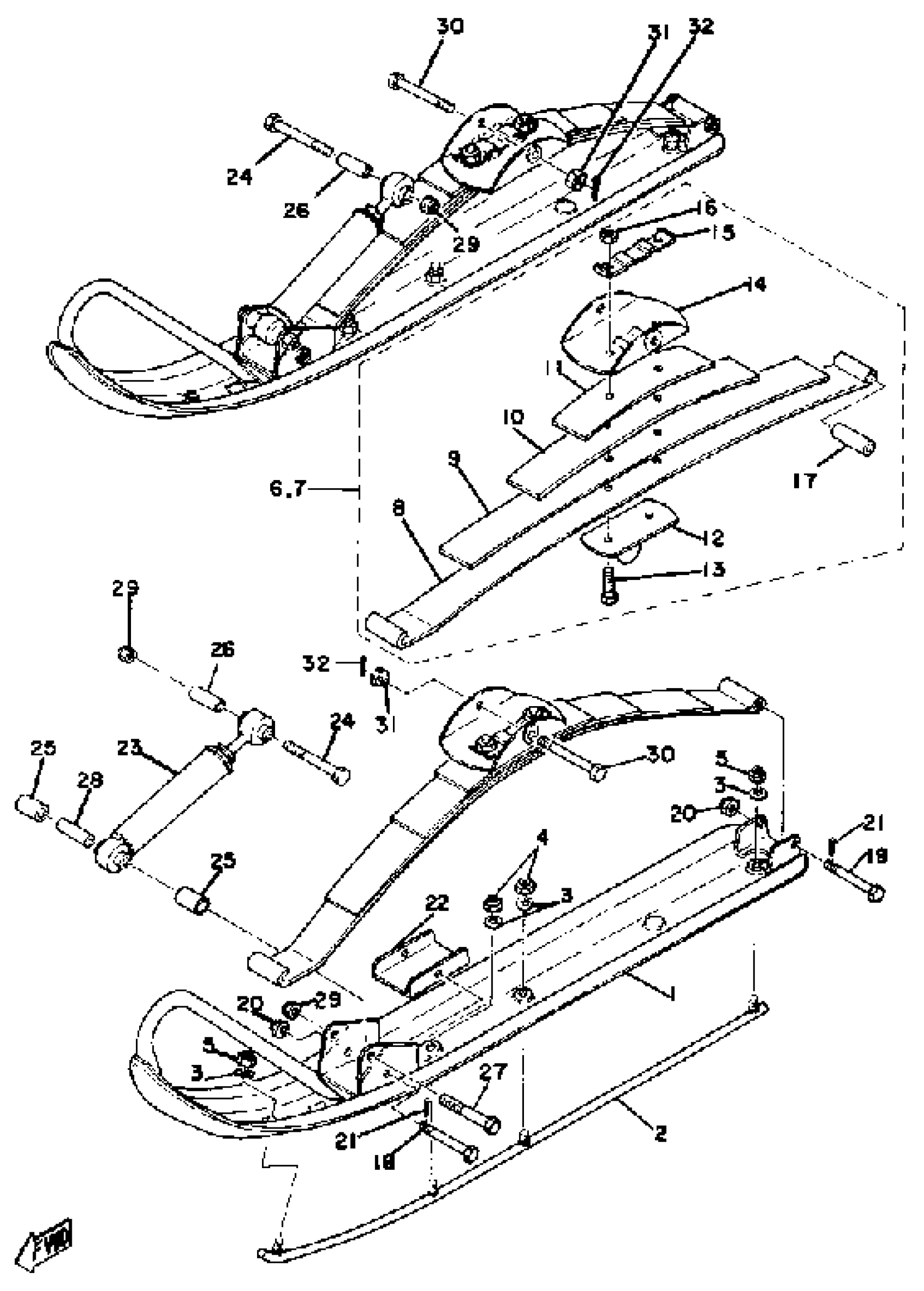

1979 Yamaha EX440C SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI COMP. 1

8E3-23710-09-00

1
Out of stock

2

RUNNER 1

8E3-23731-00-XX

1
Out of stock

3

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

4

NUT

90185-08055-00

1

$8.31

In stock

5

NUT, NYLON

95717-08300-00

1

$2.57

In stock

6

SPRING ASSY 1

8M8-23760-10-00

1
Out of stock

7

SPRING ASSY 2

8M8-23770-10-00

1
Out of stock

8

LEAF 1

888-23761-10-00

1
Out of stock

9

LEAF 2

865-23762-10-00

1
Out of stock

10

LEAF 3

888-23763-00-00

1
Out of stock

11

. LEAF 5

865-23771-00-00

1
Out of stock

12

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

13

. BOLT

90109-105E1-00

1
Out of stock

14

SADDLE

8G6-23766-00-00

—

$32.37

In stock

15

WASHER, ROCK (8J5)

90215-10155-00

1

$11.66

In stock

16

NUT, FLANGE(3BM)

95704-10500-00

—

$1.71

In stock

17

COLLAR

90387-08478-00

1
Out of stock

18

—

$8.14

In stock

19

BOLT, PIN HOLE (8A7)

90102-08027-00

—

$7.35

In stock

20

NUT, NYLON

95717-08300-00

1

$2.57

In stock

21

PIN, COTTER

91490-20025-00

—

$1.31

In stock

22

PLATE, WEAR

888-23735-00-00

—

$60.09

In stock

23

SHOCK ABSORBER ASSEMBLY

8A5-23350-01-00

1
Out of stock

24

BOLT, HEXAGON

97013-08055-00

—

$3.25

In stock

25

COLLAR

90387-12484-00

1
Out of stock

26

COLLAR (878)

90387-08262-00

—

$9.02

In stock

27

BOLT (6K8)

97013-08075-00

—

$5.66

In stock

28

COLLAR (864)

90387-08224-00

—

$7.52

In stock

29

NUT, NYLON

95717-08300-00

1

$2.57

In stock

30

BOLT, PIN HOLE (8G6)

90102-12030-00

—

$11.28

In stock

31

NUT, CASTLE

95307-12900-00

—

$5.85

In stock

32

PIN, COTTER

91490-30030-00

—

$7.15

In stock
