1978 Yamaha EX440B Track Drive Diagram

← All diagrams

Find the part on the Track Drive diagram for your 1978 Yamaha EX440B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

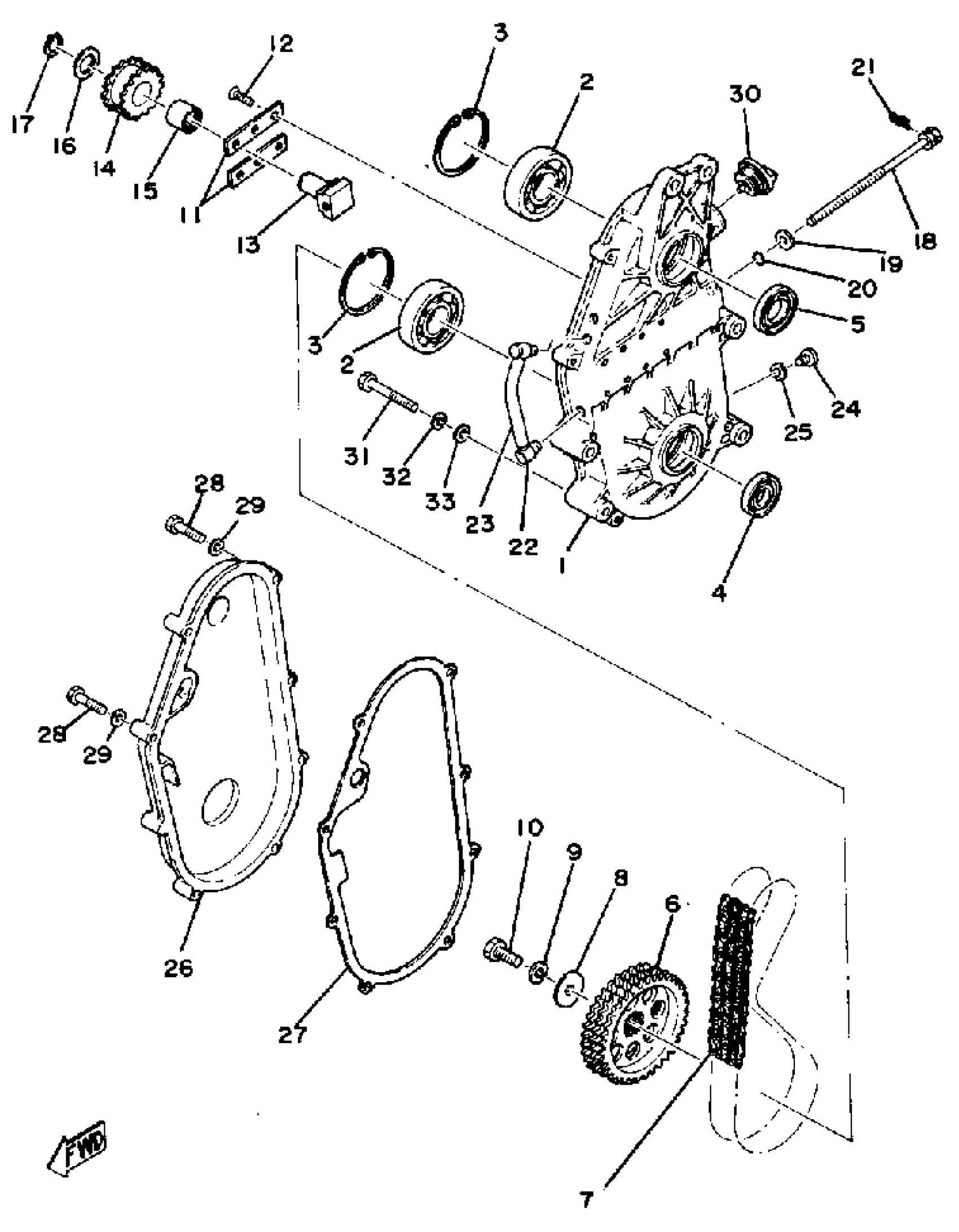

1978 Yamaha EX440B Track Drive Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, CHAIN

(888-47541-00-00)

1
Out of stock

2

BEARING (8R9)

93306-30536-00

—

$29.83

In stock

3

CIRCLIP(MF1)

99009-62500-00

1

$6.23

In stock

4

OIL SEAL (25X44X6-810)

93102-25081-00

1
Out of stock

5

OIL SEAL, SD-TYPE

93102-33140-00

1
Out of stock

6

SPROCKET, CHN DRVN (31T)

8U9-47587-00-00

1
Out of stock

6

SPROCKET, CHN DRVN (888-47587-00) (33T)

8U9-47587-10-00

1
Out of stock

6

SPROCKET, CHN DRVN (878-47587-20) (35T)

8U9-47587-30-00

1
Out of stock

7

CHAIN 70 (RS35V-3 70L)

94850-35070-00

1
Out of stock

7

CHAIN 72 (RS35V-3 72L)

94850-35072-00

1
Out of stock

7

CHAIN 74

94850-35074-00

1
Out of stock

8

WASHER, PLATE (856)

90201-10321-00

1

$5.43

In stock

9

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

10

BOLT(6TD)

97017-10025-00

1

$6.82

In stock

11

HOLDER

8A7-47613-00-00

1
Out of stock

12

SCREW, FLAT

98707-06014-00

—
Out of stock

13

TENSIONER

878-47611-00-00

1
Out of stock

14

WHEEL

878-47612-00-00

1
Out of stock

15

BRG,CYL-CAL ROLLER 20G NT

93317-31701-00

—
Out of stock

16

WASHER, PLATE

90201-17406-00

1
Out of stock

17

CIRCLIP(1EY)

99009-17400-00

—
Out of stock

18

BOLT

90109-08357-00

1
Out of stock

19

WASHER, PLATE 2562171800

90201-08088-00

1

$1.07

In stock

20

O-RING

93210-08003-00

—

$6.86

In stock

21

CLIP

90468-16065-00

1
Out of stock

22

BREATHER

583-15371-00-00

—
Out of stock

23

HOSE (L420)

90445-092K1-00

—

$10.63

In stock

24

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

25

GASKET 838153840000

90430-06016-00

—

$6.18

In stock

26

CAP, HOUSING

888-47543-00-00

1
Out of stock

27

GASKET

878-47544-08-00

—
Out of stock

28

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

29

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

30

CAP 2

857-47559-00-00

1
Out of stock

31

BOLT, HEXAGON

97013-08055-00

—

$3.25

In stock

32

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

33

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock
