1978 Yamaha EX440B Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1978 Yamaha EX440B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

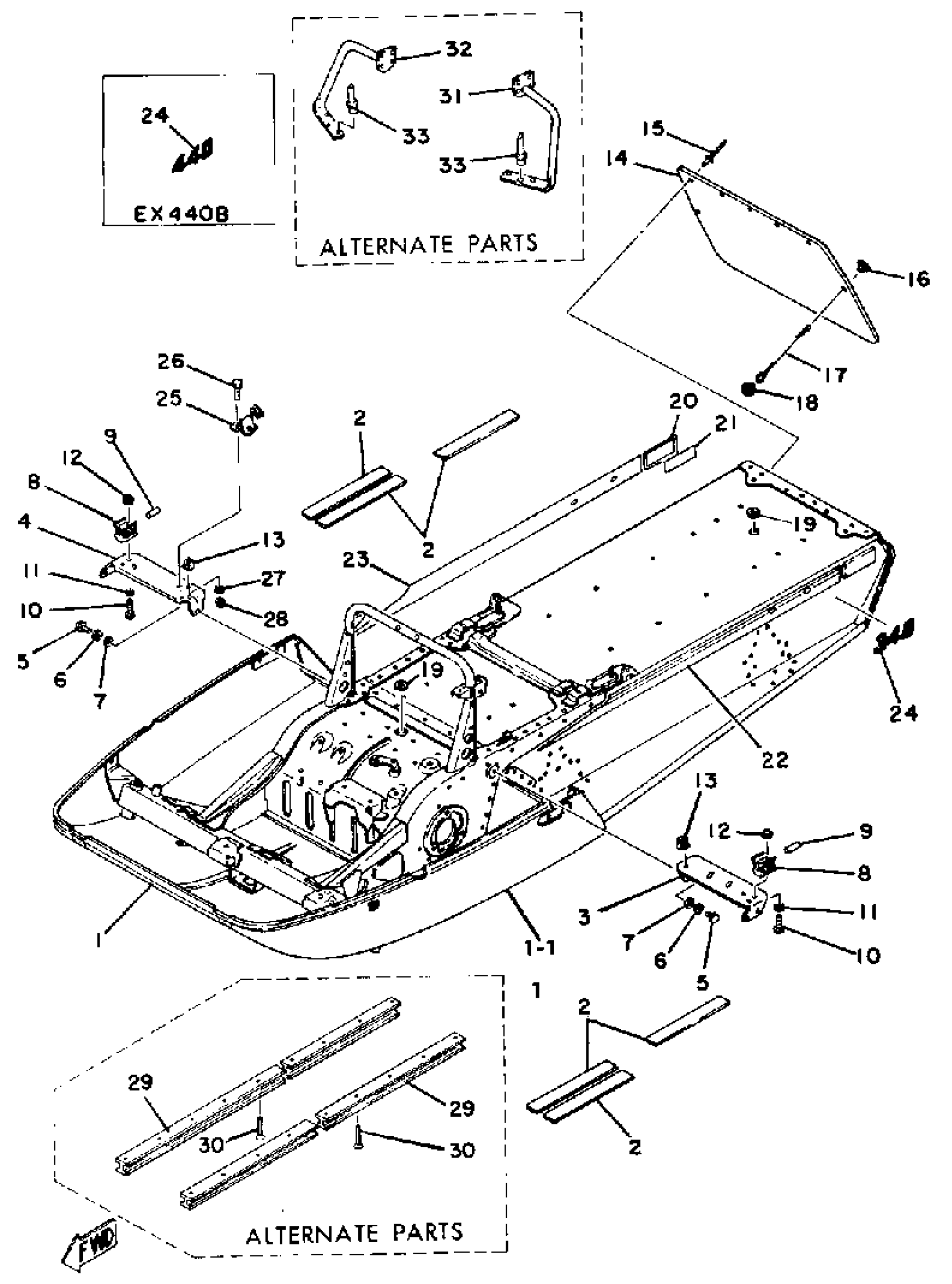

1978 Yamaha EX440B Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PANEL, SUB FRAME 1 (8E7-21912-00)

878-21912-00-00

1
Out of stock

1

FRAME

(8G6-21910-00-33)

1
Out of stock

2

COVER, FOOTRESTOPTIONAL PARTS

8G6-27413-00-00

1
Out of stock

2

RIVET, BLIND (8H4)

90267-48053-00

1

$2.31

In stock

3

BRACKET 3

(878-23883-00-00)

1
Out of stock

3

WASHER, PLATE

90201-04027-00

1
Out of stock

4

BRACKET 4

8A5-23884-00-00

1
Out of stock

5

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

8

CLAMP 3

878-77137-01-00

1
Out of stock

9

STOPPER

878-77188-00-00

1
Out of stock

10

BOLT,HEXAGON

97017-06008-00

1
Out of stock

11

WASHER, PLATE

90201-06747-00

1

$6.17

In stock

12

NUT, NYLON

95707-06300-00

1

$3.20

In stock

13

CLAMP

90464-04010-00

1
Out of stock

14

FLAP

8V8-77595-00-00

1
Out of stock

15

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock

16

PLUG, SPEC''L SHAPE

90338-10024-00

1
Out of stock

17

STOPPER, FLAP

878-77596-00-00

1
Out of stock

18

CLIP

(90468-16059-00)

1
Out of stock

19

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

20

REAR REFLECTOR ASSY

81G-85130-00-00

—

$33.55

In stock

21

TAPE, REFLECTOR

878-85133-00-00

1
Out of stock

22

EMBLEM 1

(8G6-77351-00-00)

1
Out of stock

23

EMBLEM 2

(8G6-77352-00-00)

1
Out of stock

24

EMBLEM 3

(8G6-77353-00-00)

1
Out of stock

24

EMBLEM 3

(8G7-77353-00-00)

1
Out of stock

25

HOLDER, WIRE

8A5-23874-00-00

1
Out of stock

26

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

27

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

28

NUT, NYLON

95707-06300-00

1

$3.20

In stock

29

PROTECTOR, FRAME

888-21978-00-00

1
Out of stock

30

RIVET, FLAT HEAD

99100-40114-00

1
Out of stock

31

RNFCMNT, FTRST 1FOOTREST 1

888-21926-00-00

1
Out of stock

32

RNFCMNT, FTRST 2FOOTREST 2

888-21936-00-00

1
Out of stock

33

RIVET, BLIND (8H4)

90267-48053-00

1

$2.31

In stock
