1977 Yamaha EX440A Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1977 Yamaha EX440A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

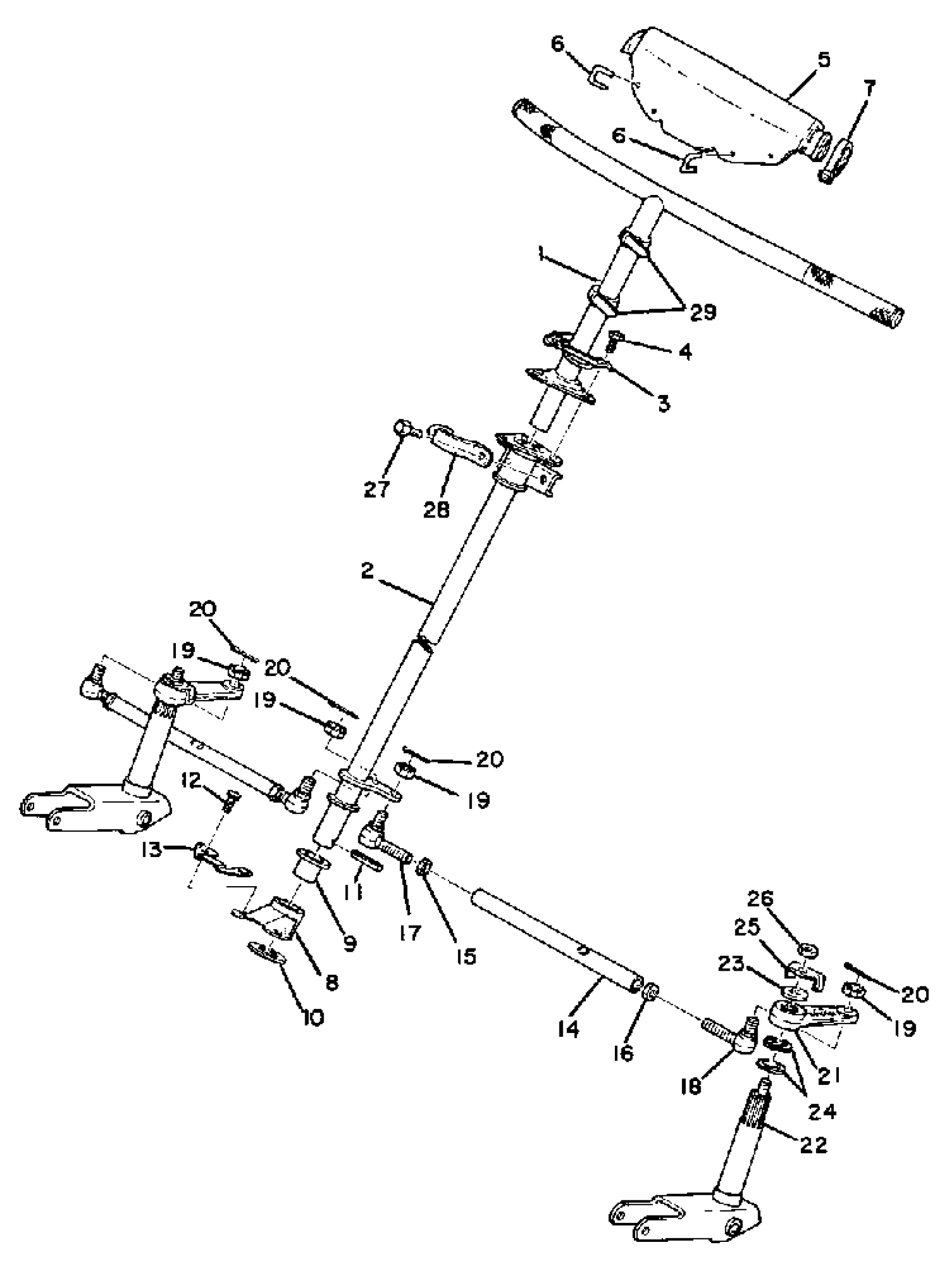

1977 Yamaha EX440A Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COLUMN, STEERING

8E7-23811-00-00

1
Out of stock

2

COLUMN, STEERING 2

8E7-23813-00-00

1
Out of stock

3

WASHER, LOCK 1

8A5-23894-00-00

1
Out of stock

4

BOLT (661)

97013-06012-00

1

$4.71

In stock

5

PAD, STEERING (878-23815-00)

878-23815-01-00

1
Out of stock

6

CLAMP

(90465-05024-00)

1
Out of stock

7

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

8

BRACKET, STRG LOWERLOWER

8E7-23868-00-00

1
Out of stock

9

BEARING, STRG LOWERLOWER

8E7-23875-00-00

1
Out of stock

10

BEARING, STEERING

(856-23812-00-00)

1
Out of stock

11

PIN, SPRING

91609-60040-00

1
Out of stock

12

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

13

WASHER, LOCK 2

(8E7-23895-00-00)

1
Out of stock

14

ROD, STEERING RELAY

888-23821-00-00

1
Out of stock

15

NUT (682)

95380-10700-00

1

$5.78

In stock

16

NUT, HEXAGON (8A5)

90170-10186-00

—

$7.60

In stock

17

JOINT, UNIVERSAL 1

888-23841-91-00

1
Out of stock

18

JOINT, UNIVERSAL 2

888-23845-91-00

1
Out of stock

19

NUT, CASTLE

95307-10900-00

—

$7.55

In stock

20

PIN, COTTER(6L5)

91490-25030-00

—

$2.85

In stock

21

ARM, OUTSIDE 1

888-23851-00-00

1
Out of stock

22

COLUMN, SKI 1

888-23853-01-00

1
Out of stock

23

WASHER, PLATE (3J6)

90201-100A1-00

—

$6.71

In stock

24

WASHER, WAVE (878)

90206-20037-00

—
Out of stock

25

WASHER, LOCK

90215-10096-00

1
Out of stock

26

NUT(3BM)

95314-10600-00

—

$1.74

In stock

27

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

28

WASHER, LOCK

90215-06054-00

1
Out of stock

29

BAND

341-26397-01-00

1
Out of stock
