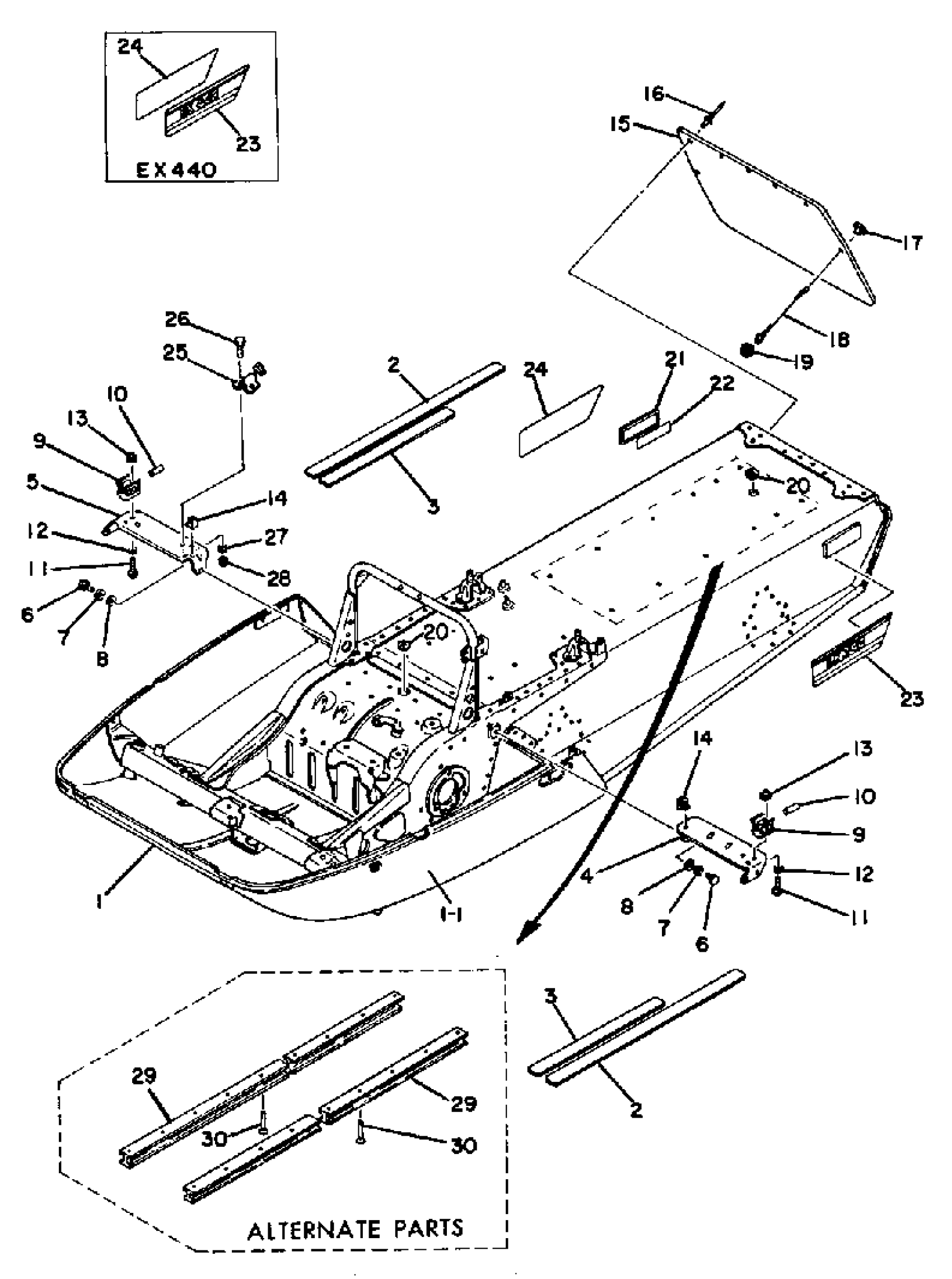

Find the part on the Frame diagram for your 1977 Yamaha EX440A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha EX440A Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(8E7-21910-00-00)

1
Out of stock

2

COVER, FOOTREST

878-27413-00-00

1
Out of stock

3

COVER, FOOTREST

878-27423-00-00

1
Out of stock

4

BRACKET 3

(878-23883-00-00)

1
Out of stock

5

BRACKET 4

8A5-23884-00-00

1
Out of stock

6

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

7

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

8

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

9

CLAMP 3

878-77137-01-00

1
Out of stock

10

STOPPER

878-77188-00-00

1
Out of stock

11

BOLT,HEXAGON

97017-06008-00

1
Out of stock

12

WASHER, PLATE

90201-06747-00

1

$6.17

In stock

13

NUT, NYLON

95707-06300-00

1

$3.20

In stock

14

CLAMP

90464-04010-00

1
Out of stock

15

FLAP

8V8-77595-00-00

1
Out of stock

16

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock

17

PLUG, SPEC''L SHAPE

90338-10024-00

1
Out of stock

18

STOPPER, FLAP

878-77596-00-00

1
Out of stock

19

CLIP

(90468-16059-00)

1
Out of stock

20

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

21

REAR REFLECTOR ASSY

81G-85130-00-00

—

$33.55

In stock

22

TAPE, REFLECTOR

878-85133-00-00

1
Out of stock

23

EMBLEM 3

(8E7-77353-00-00)

1
Out of stock

23

EMBLEM 3

(8E8-77353-00-00)

1
Out of stock

24

EMBLEM 4

(8E7-77354-00-00)

1
Out of stock

24

EMBLEM 4

8E8-77354-00-00

1
Out of stock

25

HOLDER, WIRE

8A5-23874-00-00

1
Out of stock

26

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

27

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

28

NUT, NYLON

95707-06300-00

1

$3.20

In stock

29

PROTECTOR, FRAME

888-21978-00-00

1
Out of stock

30

RIVET, FLAT HEAD

99100-40114-00

1
Out of stock
