1977 Yamaha EX440A Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 1977 Yamaha EX440A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

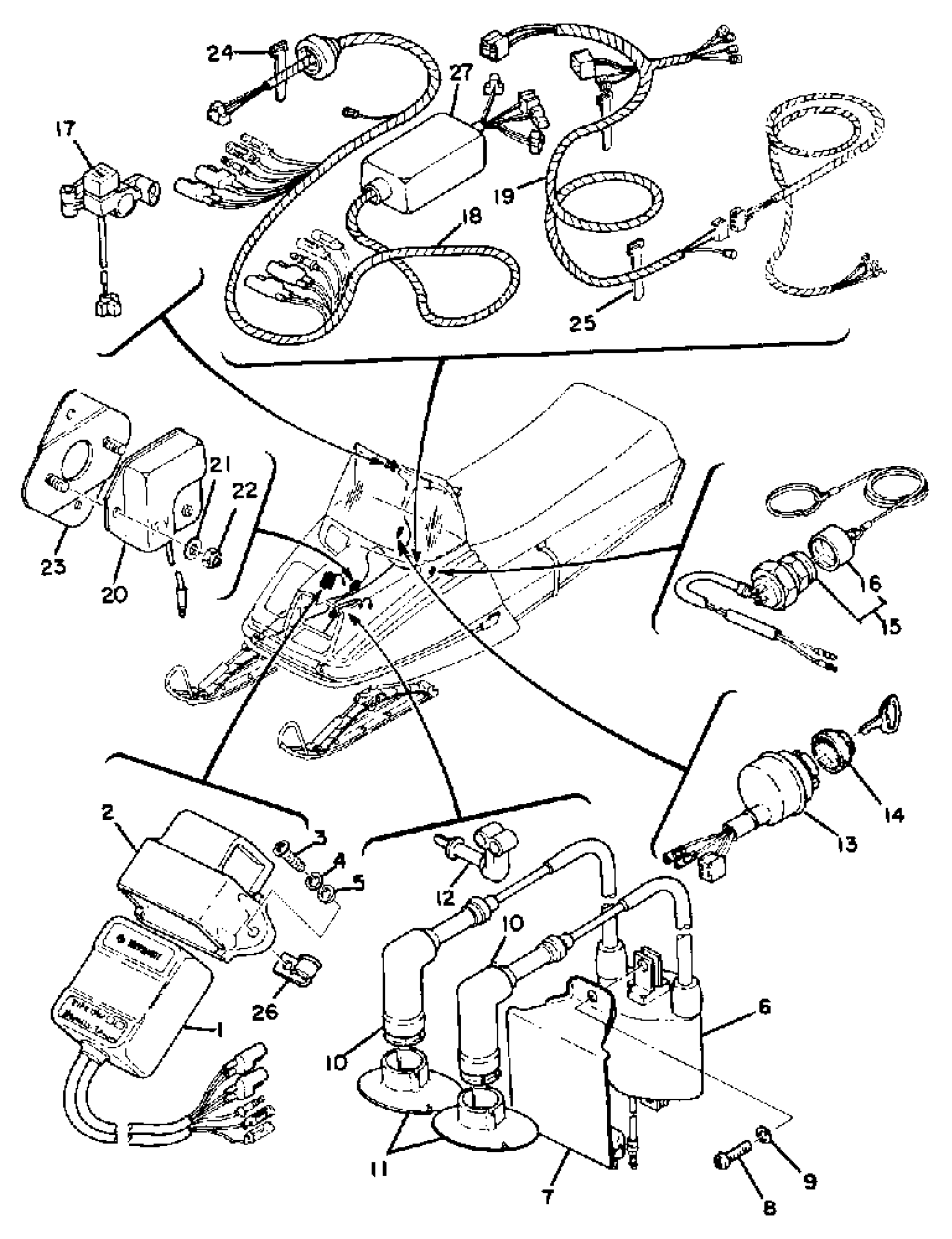

1977 Yamaha EX440A Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

8E7-85540-10-00

1
Out of stock

2

BAND

363-85546-00-00

1
Out of stock

3

SCREW, PAN

98507-06014-00

1

$6.18

In stock

4

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

5

WASHER, PLATE

90201-06M08-00

1
Out of stock

6

IGNITION COIL ASY

8E7-82310-09-00

1
Out of stock

7

COVER, IGNITN COIL

(8E7-82314-00-00)

1
Out of stock

8

SCREW, PAN HEAD(6E5)

97880-06018-00

1

$4.19

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

PLUG CAP ASSY

7KA-82370-00-00

1

$62.25

In stock

11

SEAL, PLUG CAP

8E7-82372-00-00

1
Out of stock

12

CLAMP, CORD

(8E7-82361-00-00)

1
Out of stock

13

MAIN SWITCH ASSEMBLY

898-82508-20-00

1
Out of stock

14

COLLAR, MAIN SWITCH

806-82516-00-00

1
Out of stock

15

STOP SWITCH ASSEMBLY

8J7-82550-01-00

1
Out of stock

16

CAP, SWITCH

8H8-82552-09-00

—

$42.05

In stock

17

SWITCH, HANDLE 1 (8E7-83976-00)

8E7-83976-01-00

1
Out of stock

18

WIRE HARNESS ASSEMBLY

(8E7-82590-21-00)

1
Out of stock

19

WIRE HARNESS ASSEMBLY 2

(8E7-82580-21-00)

1
Out of stock

20

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

—

$50.55

In stock

21

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

22

NUT, NYLON

95707-06300-00

—

$3.20

In stock

23

PLATE, REG FITTING

(8E7-81915-00-00)

1
Out of stock

24

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

25

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock

26

CLAMP

90465-06013-00

1
Out of stock

27

COVER, CONNECTER

(878-82599-00-00)

1
Out of stock
