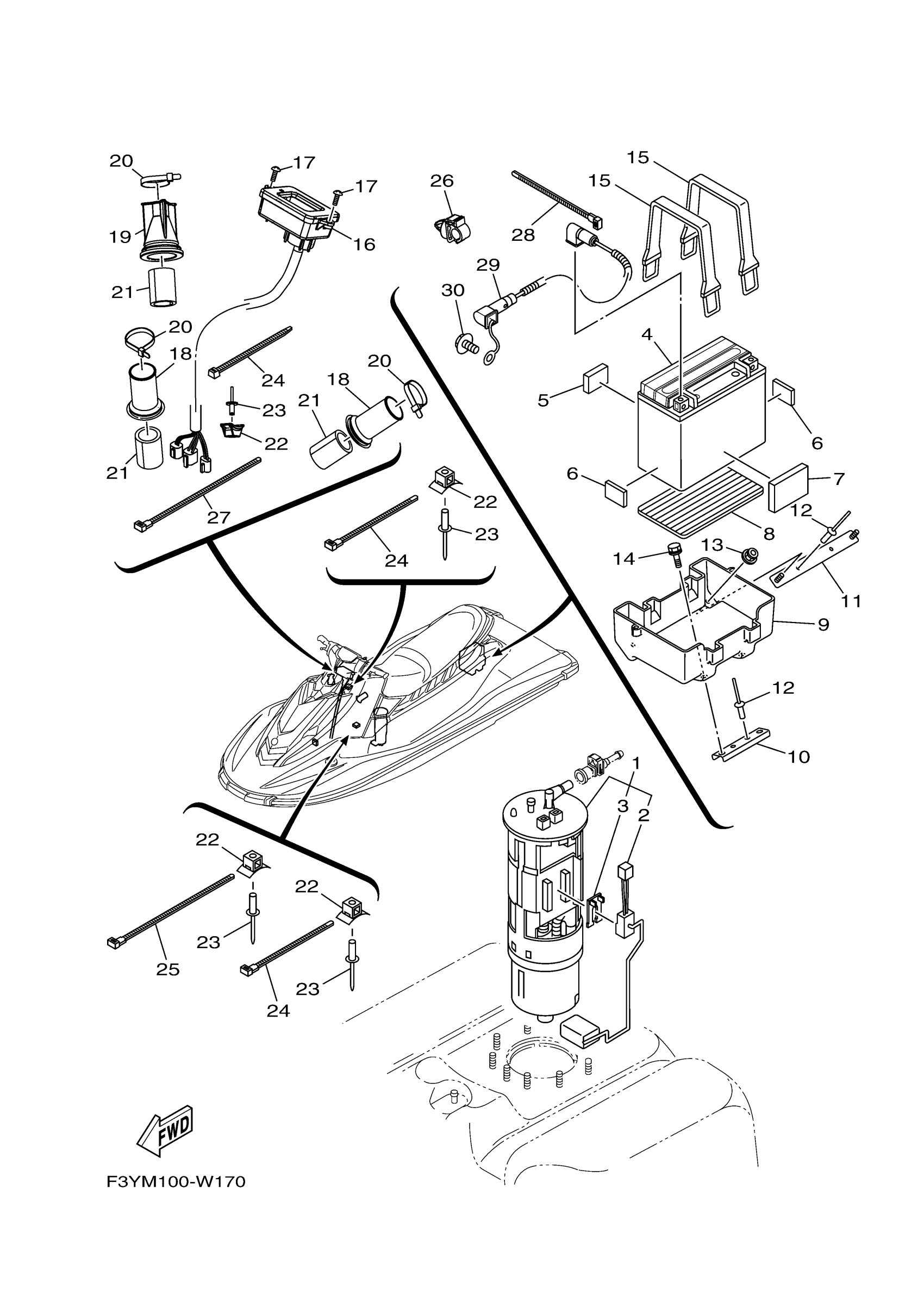

Yamaha EX1050CX (EX) F3YS 2022 ELECTRICAL 3 Diagram

#

Description
Price

1

FUEL PUMP COMP.

6S5-13907-05-00

$1,050.38

2

FUEL SENDER ASSY SET

99999-04571-00

Unavailable

3

DAMPER, STOPPER

60E-82556-10-00

$18.49

4

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

$163.95

5

PACKING

F2C-U1743-00-00

$1.87

6

PAD, BATTERY

EU0-U8221-31-00

$1.65

7

MAT 2

F1W-U759C-01-00

$2.50

8

PAD, BATTERY

F1S-U8221-00-00

$2.75

9

CASE, BATTERY

F2S-U8211-00-00

$9.62

10

PLATE, BASE 2

F2S-U8592-00-00

$5.83

11

PLATE, BASE 3

F2S-U8593-00-00

$5.45

12

RIVET (EU0)

90267-48938-00

$5.00

13

NUT, LOCK

F2N-U142L-00-00

$1.00

14

BOLT, WITH WASHER

90119-06820-00

$3.52

15

BAND, BATTERY 1

F4P-U821D-00-00

$12.20

16

METER ASSY

F4L-U820A-00-00

$133.32

17

SCREW

F2S-U7823-01-00

$2.35

18

GROMMET

GU2-6822E-01-00

$24.98

19

GROMMET

F3J-U822E-01-00

$5.59

20

CLAMP

90464-32801-00

$1.23

21

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

22

BASE, CLAMP

F1W-U828M-00-00

$1.23

23

RIVET, BLIND

90267-48806-00

$2.00

24

CLAMP

90464-32801-00

$1.23

25

BAND

90601-200U2-00

$3.16

26

CLAMP

90464-10008-00

Unavailable

27

BAND

90601-200U2-00

$3.16

28

CLAMP

90464-32801-00

$1.23

29

WIRE, MINUS LEAD

6GA-82116-00-00

$52.99

30

BOLT, WITH WASHER

97513-08514-00

$1.36
