2024 Yamaha Ex (EX1050CA) Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 2024 Yamaha Ex (EX1050CA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

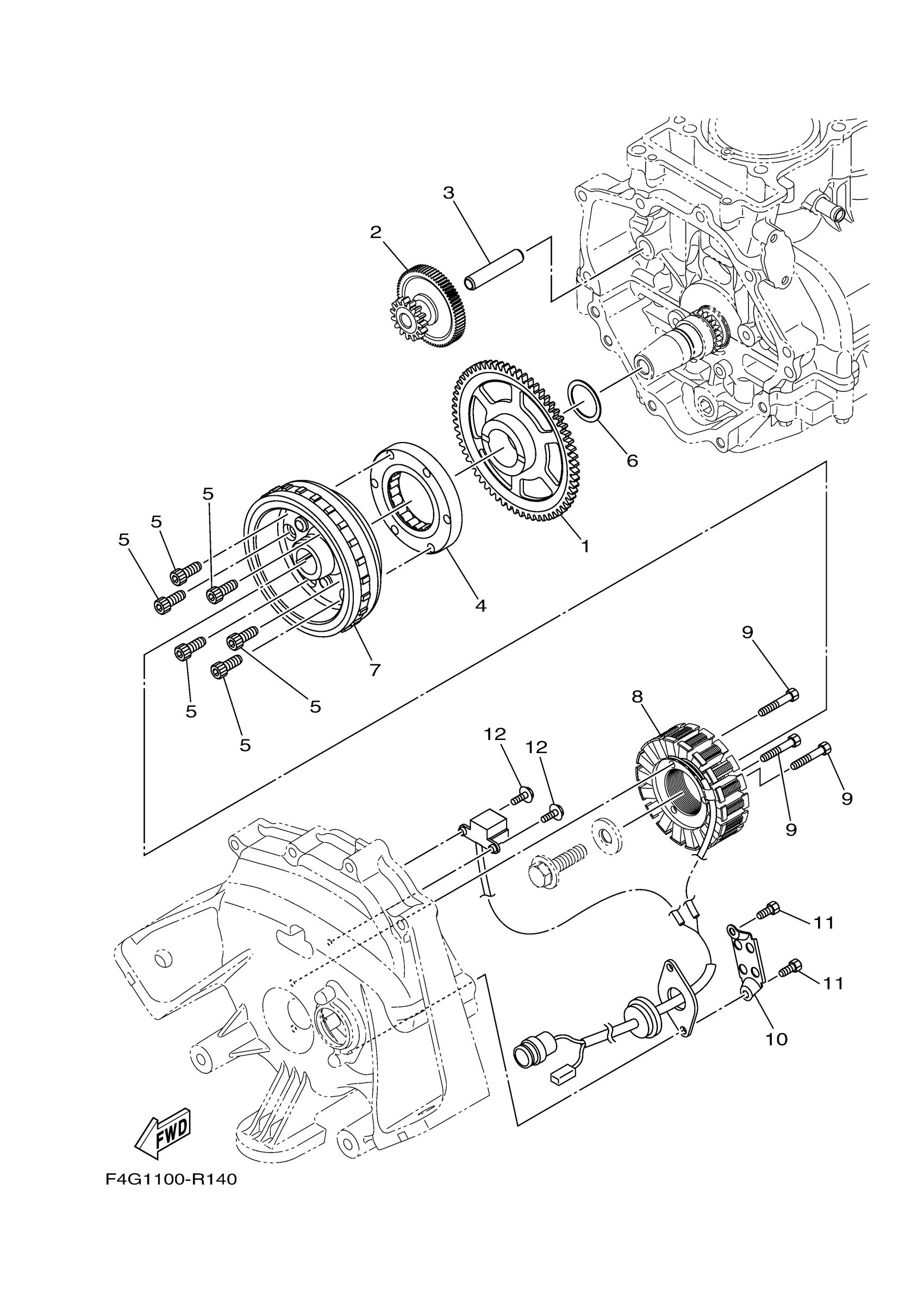

2024 Yamaha Ex (EX1050CA) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR 3

8FA-15515-00-00

1
Out of stock

2

GEAR, IDLER 1

2HC-15512-00-00

1
Out of stock

3

SHAFT 1

8ES-15521-00-00

1
Out of stock

4

STARTER ONE-WAY ASSY

6EY-15590-00-00

1
Out of stock

5

BOLT, SOCKET

91317-08020-00

1
Out of stock

6

WASHER, PLATE

90201-30013-00

1
Out of stock

7

ROTOR ASSY

6EY-81450-01-00

1
Out of stock

8

STATOR ASSY

6EY-81410-00-00

1
Out of stock

9

BOLT,SOCKET

91317-06035-00

1
Out of stock

10

CLAMP

60E-81328-00-00

1
Out of stock

11

BOLT,SOCKET

91317-06014-00

1
Out of stock

12

BOLT, WITH WASHER

97513-05514-00

1
Out of stock
