1973 Yamaha EW643B Torque Converter Diagram

← All diagrams

Find the part on the Torque Converter diagram for your 1973 Yamaha EW643B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

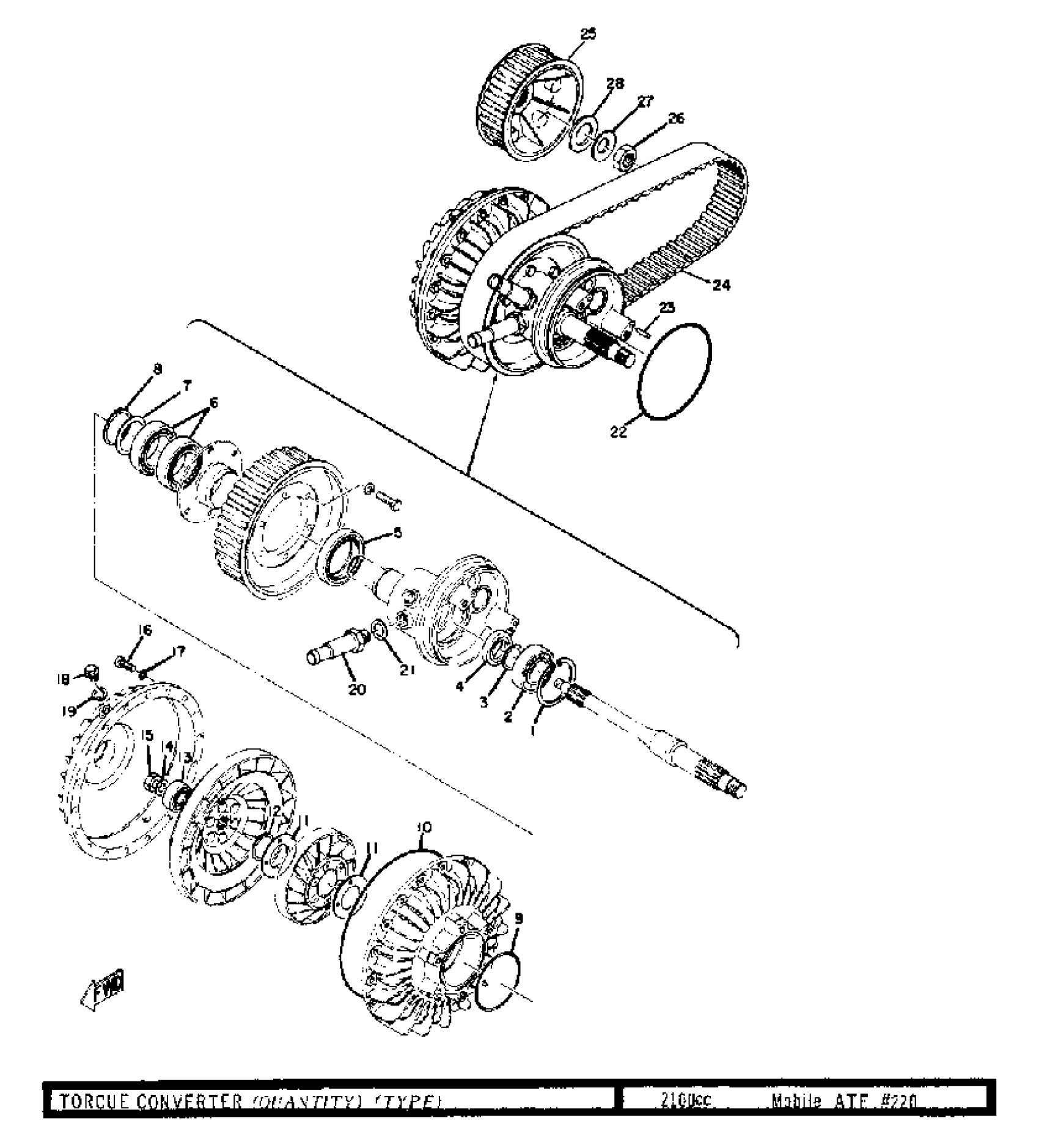

1973 Yamaha EW643B Torque Converter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TORQUE CONV ASSEMBLY

(852-16700-00-00)

1
Out of stock

1

CIRCLIP(26H)

99009-52500-00

1

$10.74

In stock

2

1

$35.25

In stock

3

CIRCLIP (4L0)

93440-25084-00

1

$3.96

In stock

4

OIL SEAL (5V6)

93103-25125-00

—

$23.23

In stock

5

. OIL SEAL, SW-TYPE

93103-48070-00

1
Out of stock

6

BEARING

(93306-00703-00)

1
Out of stock

7

SHIM

(834-16715-00-00)

1
Out of stock

8

. CIRCLIP, S-TYPE (S-35)

93410-35027-00

1
Out of stock

9

O-RING

(93210-69203-00)

1
Out of stock

10

O-RING

(93211-78169-00)

1
Out of stock

11

BEARING, THRUST

(834-16737-00-00)

1
Out of stock

12

CIRCLIP, S-TYPE

(93410-28028-00)

1
Out of stock

13

BEARING(3WF)

93306-20119-00

1

$28.48

In stock

14

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

15

NUT (682)

95380-10700-00

1

$5.78

In stock

16

SCREW, PAN HEAD

(98511-05018-00)

1
Out of stock

17

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

18

BOLT, WASHER BASED(4JT)

90105-08729-00

—

$3.92

In stock

19

GASKET

90430-08023-00

1
Out of stock

20

CONNECTOR, PIPE

(834-16756-00-00)

1
Out of stock

21

GASKET

214-11198-01-00

—

$2.66

In stock

22

O-RING

93211-13109-00

1
Out of stock

23

PIN, DOWEL(4SS)

93604-18251-00

1
Out of stock

24

V-BELT

(834-17641-00-00)

1
Out of stock

25

PULLEY 1

(852-16785-02-00)

1
Out of stock

26

NUT

90170-16425-00

—
Out of stock

27

WASHER, CONICAL SPR

(90208-16014-00)

1
Out of stock

28

SPACER

(90560-17078-00)

1
Out of stock
