1973 Yamaha EW643B Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1973 Yamaha EW643B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

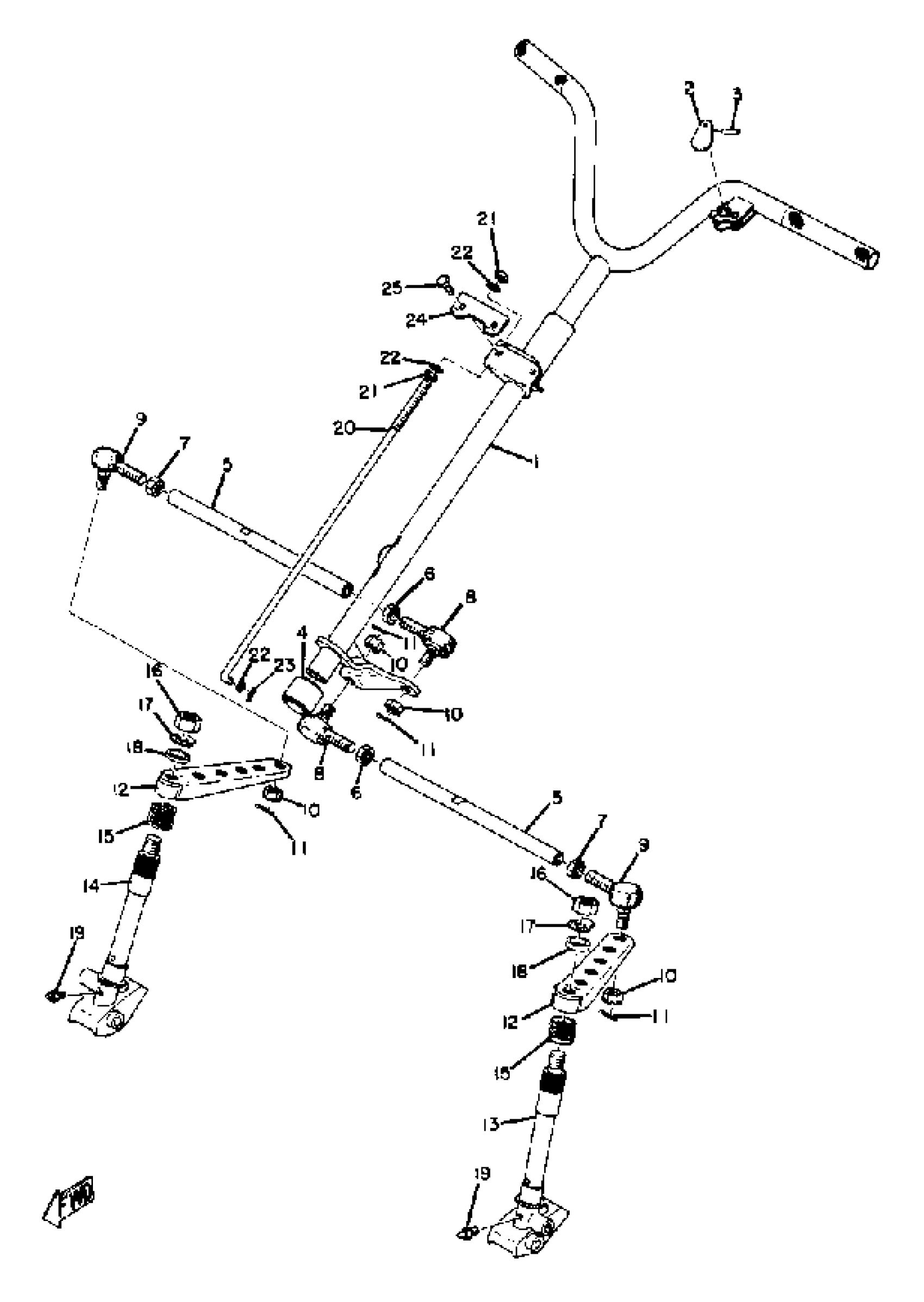

1973 Yamaha EW643B Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COLUMN, STEERING

(852-23811-00-00)

1
Out of stock

2

LEVER, LOCK

(803-83965-00-00)

1
Out of stock

3

PIN, SPEC''L SHAPE

(90249-04022-00)

1
Out of stock

4

BEARING, STRG LOWER

(806-23875-00-00)

1
Out of stock

5

ROD, STEERING RELAY

(826-23821-00-00)

1
Out of stock

6

NUT, HEXAGON SMALL

95317-12700-00

1

$6.17

In stock

7

NUT (821-23834-00)

90170-12054-00

1
Out of stock

8

JOINT, UNIVERSAL 1

(821-23841-90-00)

1
Out of stock

9

JOINT, UNIVERSAL 2

(821-23845-90-00)

1
Out of stock

10

NUT, CASTLE

90171-10002-00

1
Out of stock

11

PIN, COTTER(6L5)

91490-25030-00

1

$2.85

In stock

12

ARM, OUTSIDE 1

(810-23851-00-00)

1
Out of stock

13

COLUMN, SKI 1

(816-23853-00-00)

1
Out of stock

14

COLUMN, SKI 2

(816-23854-00-00)

1
Out of stock

15

SPRING, COMPRESSION

90501-35154-00

1
Out of stock

16

NUT, HEXAGON

95337-12600-00

—
Out of stock

17

WASHER, LOCK (810-23857-00)

90215-12031-00

1
Out of stock

18

SPACER

90560-20037-00

1
Out of stock

19

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

20

BAR, TENSION

(810-23861-00-00)

1
Out of stock

21

NUT(JN5)

95317-06700-00

—

$6.69

In stock

22

WASHER(6TA)

92907-06200-00

—

$6.18

In stock

23

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

24

WASHER, LOCK 1

(810-23894-00-00)

1
Out of stock

25

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock
