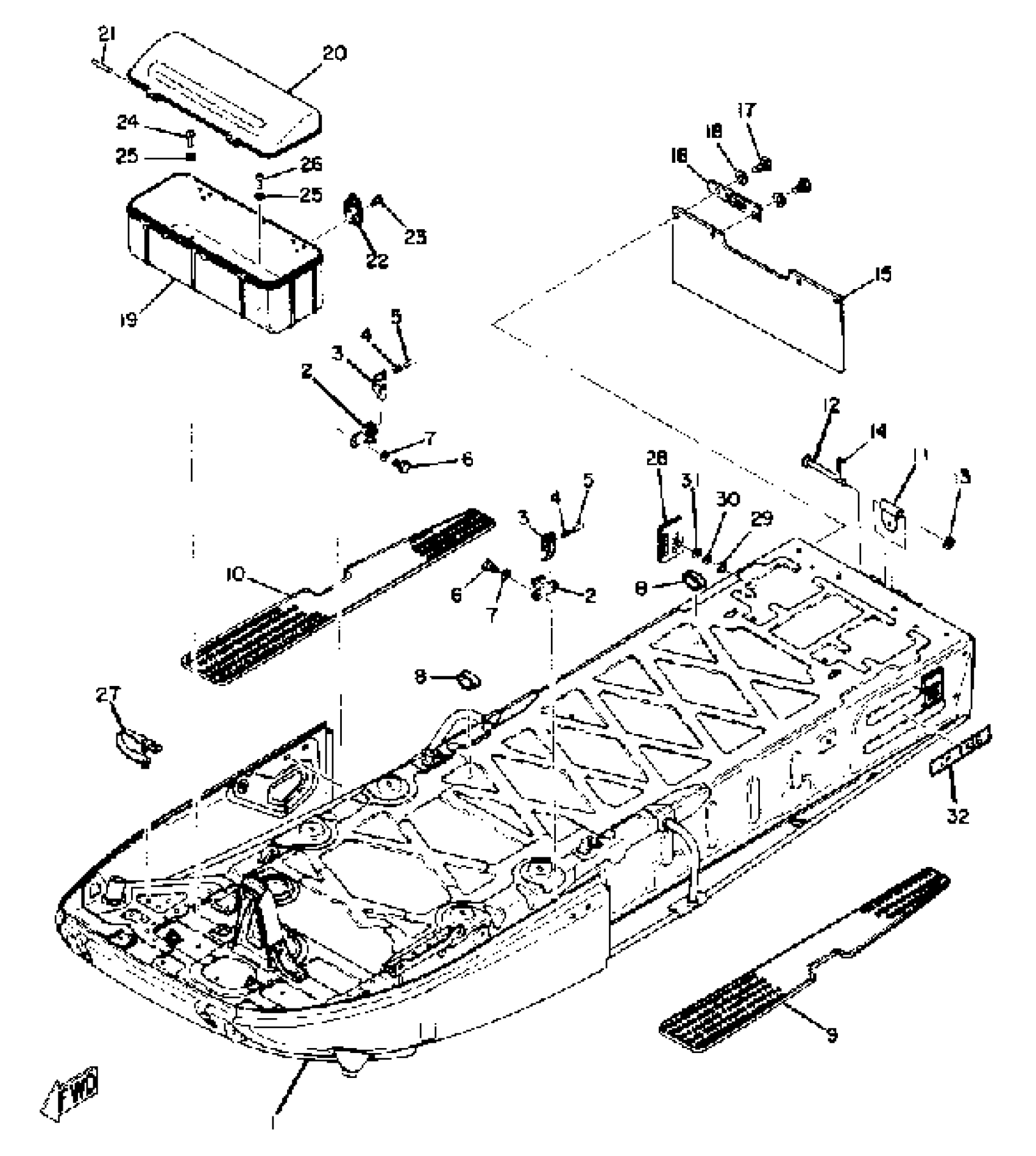

Find the part on the Frame diagram for your 1973 Yamaha EW643B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha EW643B Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LATCH ASSEMBLY

807-77170-00-00

1
Out of stock

1

FRAME

(852-21910-00-00)

1
Out of stock

3

. LEVER, LATCH 1

806-77173-00-00

1
Out of stock

4

. SPRING, TORSION

90508-10012-00

1
Out of stock

5

. PIN, SPECIAL SHAPE

90249-04068-00

1
Out of stock

6

BOLT, HEXAGON

97313-05016-00

1
Out of stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

CLAMP

(90464-13008-00)

1
Out of stock

9

COVER, FOOTREST

(806-27413-00-00)

1
Out of stock

10

COVER, FOOTREST

(806-27423-00-00)

1
Out of stock

11

BRACKET, HITCH 1

802-77591-00-00

1
Out of stock

12

PIN, CLEVIS

(91701-08102-00)

1
Out of stock

13

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

14

PIN, COTTER

91490-25020-00

1

$2.94

In stock

15

FLAP

(807-77595-02-00)

1
Out of stock

16

PLATE, FLAP 1

(807-77593-00-00)

1
Out of stock

17

BOLT (661)

97013-06012-00

—

$4.71

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

LUGGAGE BOX

(827-77391-00-00)

1
Out of stock

20

COVER, LUGGAGE BOX

(822-77392-00-00)

1
Out of stock

21

PIN, SPEC''L SHAPE

90249-03021-00

1
Out of stock

22

LUGGE BOX LTCH ASSEMBLY

(822-77340-00-00)

1
Out of stock

23

SCREW, FLAT

98707-03008-00

—

$5.62

In stock

24

SCREW, PAN

98507-06014-00

—

$6.18

In stock

25

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

26

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

27

BAND

(841-82591-00-00)

1
Out of stock

28

REFLECTOR, REAR 1

(821-85131-00-00)

1
Out of stock

29

NUT, NYLON

95707-06300-00

—

$3.20

In stock

30

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

31

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

32

EMBLEM 4

(852-77354-00-00)

1
Out of stock
