1972 Yamaha EW643 Torque Converter Diagram

← All diagrams

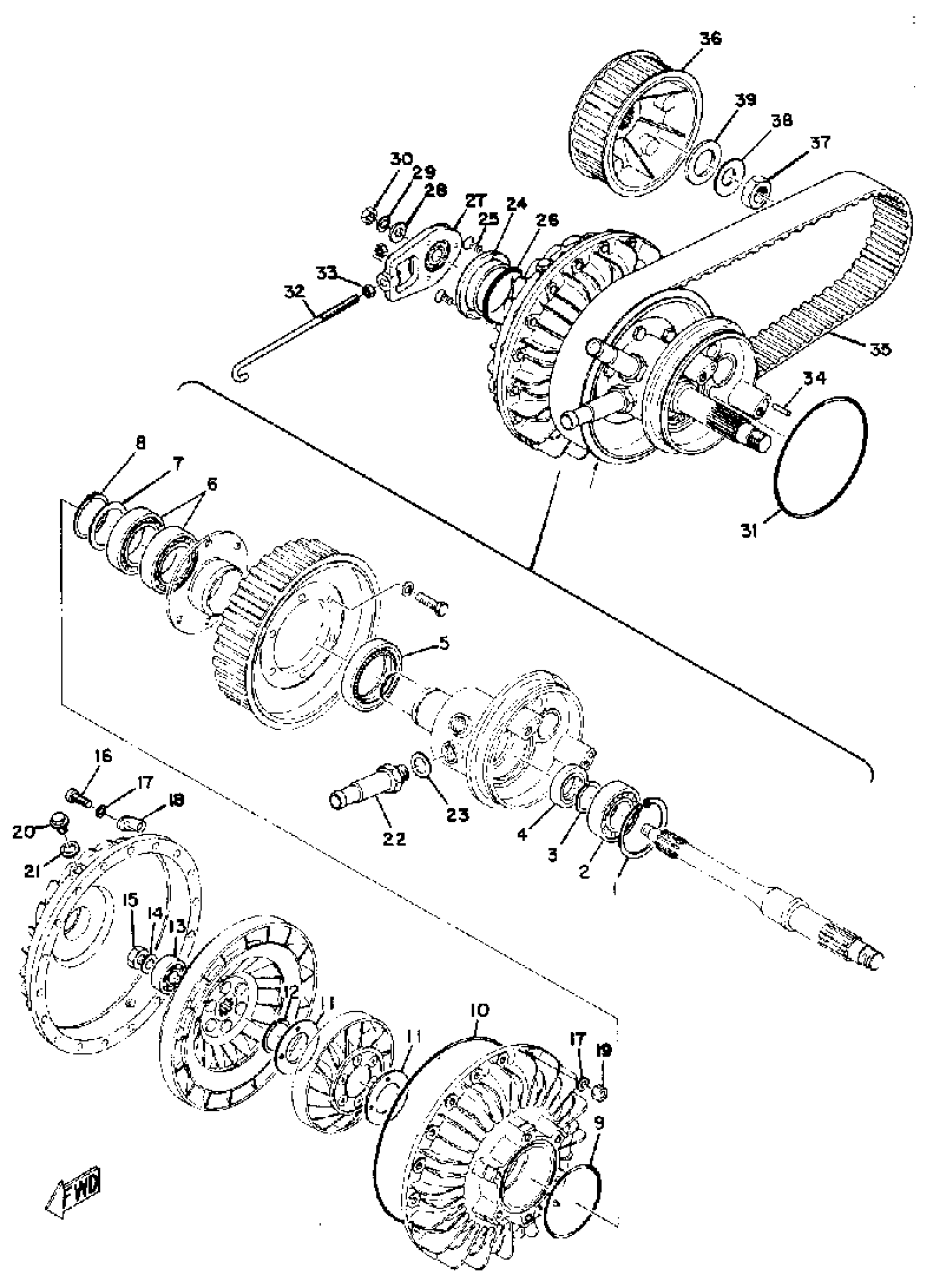

Find the part on the Torque Converter diagram for your 1972 Yamaha EW643, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha EW643 Torque Converter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TORQUE CONV ASSEMBLY

(834-16700-00-00)

1
Out of stock

1

CIRCLIP(26H)

99009-52500-00

1

$10.74

In stock

2

1

$35.25

In stock

3

CIRCLIP (4L0)

93440-25084-00

1

$3.96

In stock

4

OIL SEAL (5V6)

93103-25125-00

—

$23.23

In stock

5

. OIL SEAL, SW-TYPE

93103-48070-00

1
Out of stock

6

BEARING

(93306-00703-00)

1
Out of stock

7

SHIM

(834-16715-00-00)

1
Out of stock

8

. CIRCLIP, S-TYPE (S-35)

93410-35027-00

1
Out of stock

9

O-RING

(93210-68168-00)

1
Out of stock

10

O-RING

(93211-78169-00)

1
Out of stock

11

BEARING, THRUST

(834-16737-00-00)

1
Out of stock

12

CIRCLIP, S-TYPE

(93410-28028-00)

1
Out of stock

13

BEARING(3WF)

93306-20119-00

1

$28.48

In stock

14

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

15

NUT (682)

95380-10700-00

1

$5.78

In stock

16

BOLT HEXAGON

97001-05018-00

1
Out of stock

17

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

18

BALANCER

(834-16719-10-00)

1
Out of stock

18

BALANCER

(834-16719-30-00)

1
Out of stock

18

BALANCER

(834-16719-50-00)

1
Out of stock

19

NUT, HEXAGON SMALL

95317-05700-00

—

$6.18

In stock

20

BOLT, WASHER BASED(4JT)

90105-08729-00

—

$3.92

In stock

21

. GASKET

90430-08143-00

1

$2.90

In stock

22

CONNECTOR, PIPE

(834-16756-00-00)

1
Out of stock

23

GASKET

214-11198-01-00

—

$2.66

In stock

24

CAP

(834-16773-00-00)

1
Out of stock

25

SCREW, FLAT

98707-05012-00

—
Out of stock

26

O-RING

(93210-32170-00)

1
Out of stock

27

HOUSING BEARI ASSEMBLY

(834-16770-00-00)

1
Out of stock

28

WASHER (1T1)

90201-08649-00

—
Out of stock

29

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

30

. NUT

95380-08700-00

1

$3.07

In stock

31

O-RING

93211-13109-00

1
Out of stock

32

BAR, TENSION

(834-47585-00-00)

1
Out of stock

33

NUT(6TA)

95317-06600-00

—

$2.69

In stock

34

PIN, DOWEL(4SS)

93604-18251-00

1
Out of stock

35

V-BELT

(834-17641-00-00)

1
Out of stock

36

PULLEY 1

(834-16785-00-00)

1
Out of stock

37

NUT

90170-16425-00

—
Out of stock

38

WASHER, CONICAL SPR

(90208-16014-00)

1
Out of stock

39

SPACER

(90560-17078-00)

1
Out of stock
