1972 Yamaha EW643 Steering Diagram

← All diagrams

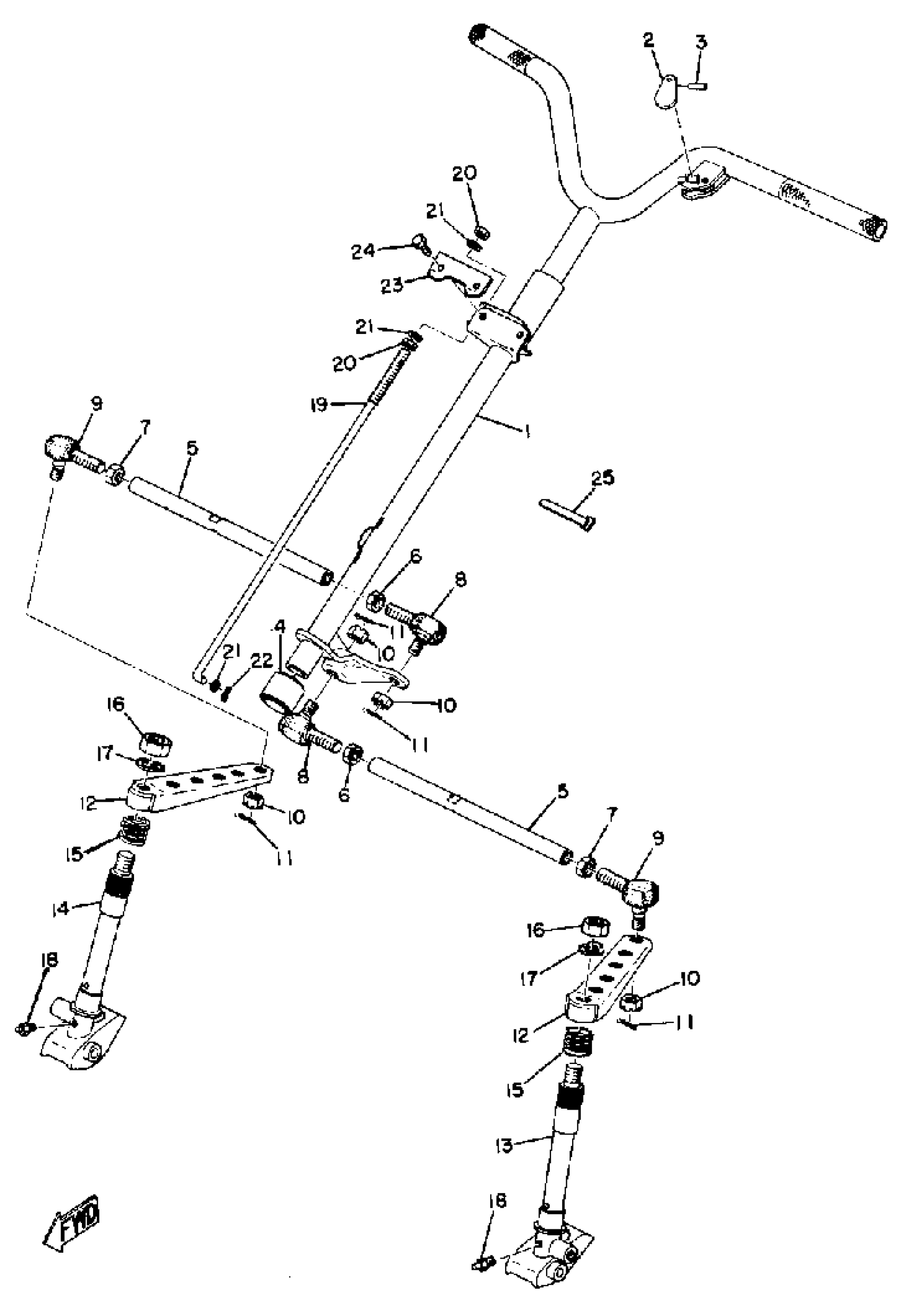

Find the part on the Steering diagram for your 1972 Yamaha EW643, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha EW643 Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COLUMN, STEERING

(834-23811-00-00)

1
Out of stock

2

LEVER, LOCK

(803-83965-00-00)

1
Out of stock

3

PIN, SPEC''L SHAPE

(90249-04022-00)

1
Out of stock

4

BEARING, STRG LOWER

(806-23875-00-00)

1
Out of stock

5

ROD, STEERING RELAY

(826-23821-00-00)

1
Out of stock

6

NUT, HEXAGON SMALL

95317-12700-00

1

$6.17

In stock

7

NUT (821-23834-00)

90170-12054-00

1
Out of stock

8

JOINT, UNIVERSAL 1

(821-23841-90-00)

1
Out of stock

9

JOINT, UNIVERSAL 2

(821-23845-90-00)

1
Out of stock

10

NUT, CASTLE

90171-10002-00

1
Out of stock

11

PIN, COTTER(6L5)

91490-25030-00

1

$2.85

In stock

12

ARM, OUTSIDE 1

(810-23851-00-00)

1
Out of stock

13

COLUMN, SKI 1

810-23853-00-00

1
Out of stock

14

COLUMN, SKI 2

810-23854-00-00

1
Out of stock

15

SPRING, COMPRESSION

90501-35154-00

1
Out of stock

16

NUT, HEXAGON

95337-12600-00

—
Out of stock

17

WASHER, LOCK (810-23857-00)

90215-12031-00

1
Out of stock

18

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

19

BAR, TENSION

(810-23861-00-00)

1
Out of stock

20

NUT(JN5)

95317-06700-00

—

$6.69

In stock

21

WASHER(6TA)

92907-06200-00

—

$6.18

In stock

22

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

23

WASHER, LOCK 1

(810-23894-00-00)

1
Out of stock

24

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

25

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock
